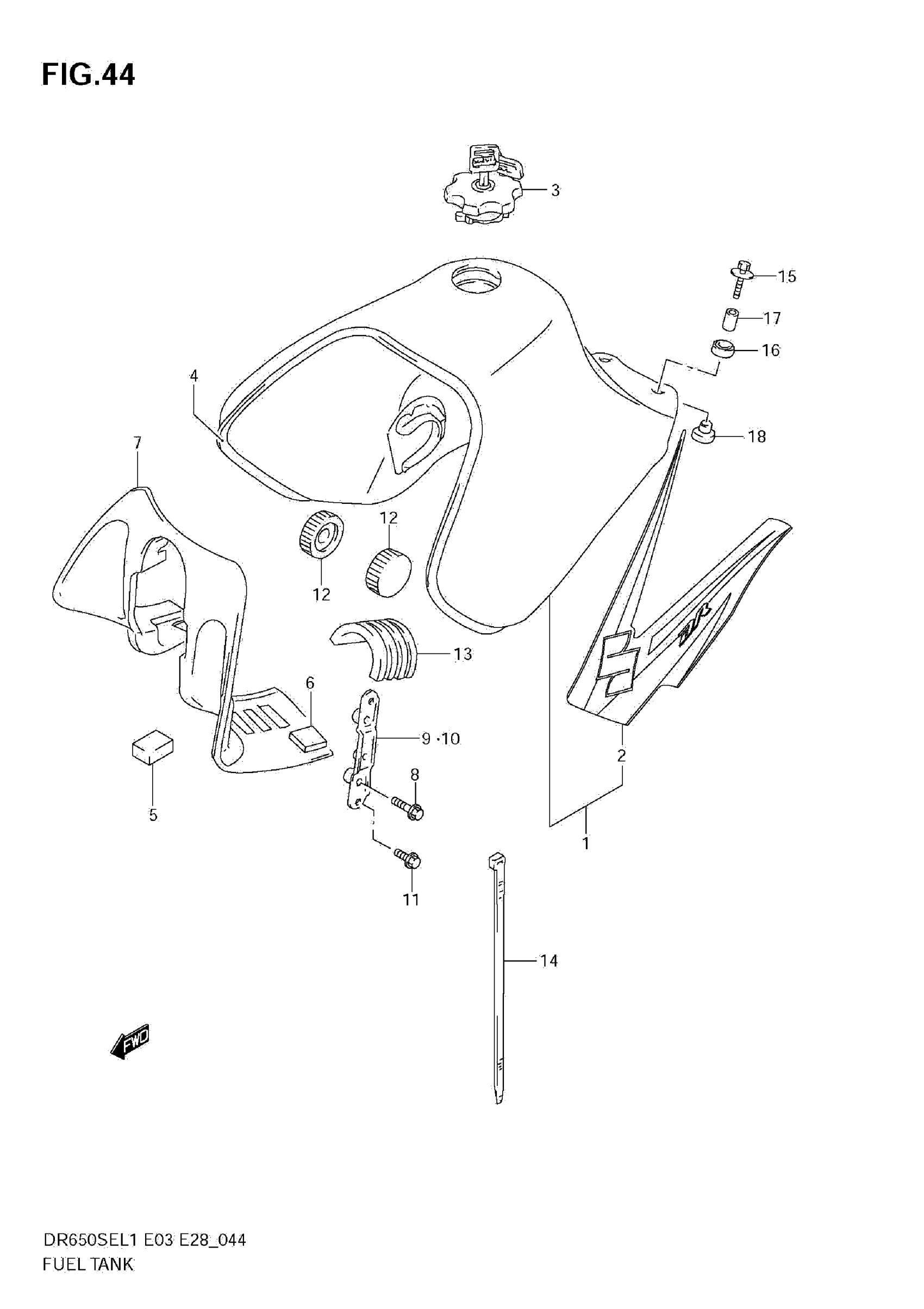

Suzuki DR650SEL1 (2011) FUEL TANK (E33) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK) | FOR 019

44100-32ES0-3WX

Unavailable

1

TANK ASSY, FUEL (WHITE) | FOR 30H

44100-32ES0-5UX

Unavailable

2

TAPE SET | FOR 3WX

68110-32EC0-HLT

Unavailable

2

TAPE SET | FOR 5UX

68110-32EC0-HLU

Unavailable

3

CAP SET,FUEL TA This part replaces 44200-05820.

44200-05822

$80.85

4

MOLDING,FUEL TANK

68241-32E00

$63.26

5

CUSHION

51827-01A00

$6.95

6

CUSHION, TANK COVER

44831-17B00

$7.57

7

COVER,FUEL TANK,FRONT

44271-32E00

$65.20

8

BOLT (6X12)

09116-06210

$2.68

9

BRACKET, FRONT COVER RH

44280-32E00

Unavailable

10

BRACKET, FRONT COVER LH

44290-32E00

Unavailable

11

BOLT

01550-0625B

$2.43

12

CUSHION,FUEL TANK,FRONT

44511-12D00

$6.52

13

CUSHION, UPPER REAR

44541-13E00

$18.80

14

CLAMP (L:248)

09407-25402

$4.19

15

BOLT (6X30)

09116-06214

$2.50

16

CUSHION

09320-14022

$3.28

17

SPACER (6.5X9X18)

09180-06271

$2.17

18

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.71
