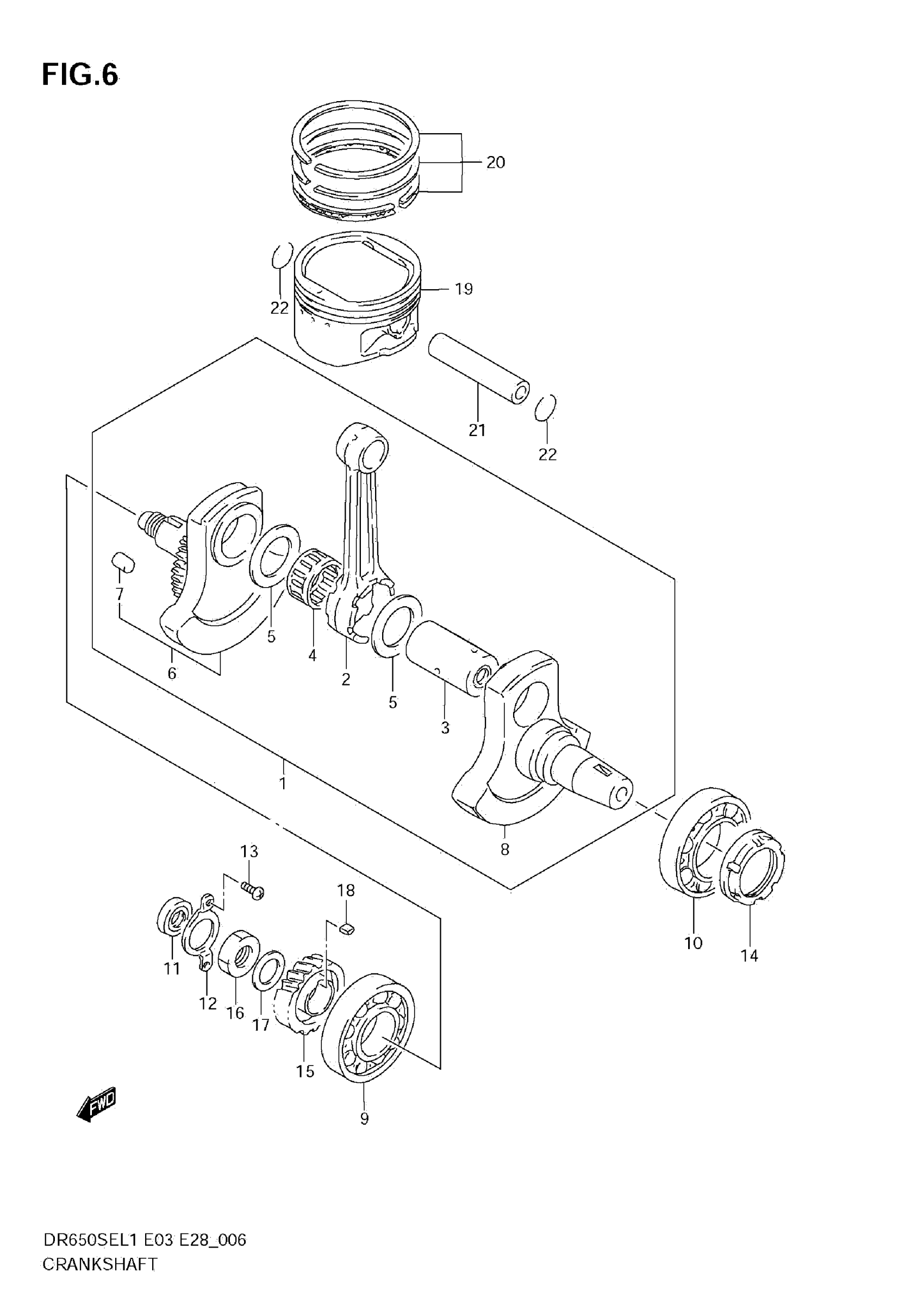

Suzuki DR650SEL1 (2011) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT SET

12000-32820

$1,207.20

2

ROD, CONNECTING

12161-32E00

$177.00

3

PIN, CRANK

12211-32E00

$97.10

4

BEARING (37X47X25)

09263-37004-0C0

$57.85

5

WASHER (37X55X1)

09160-37006

$11.52

6

CRANKSHAFT SET, RH

12221-32810

Unavailable

7

PIN

09261-08006

Unavailable

8

CRANKSHAFT, LH

12261-32E00

Unavailable

9

BEARING (40X80X18) | RH

09262-40008

$87.28

10

BEARING (45X85X19) | LH

09262-45011

$95.65

11

OIL SEAL (16X30X6) | RH

09282-16002

$8.79

12

PLATE, RH

12548-37400

$4.65

13

SCREW

02112-0508B

$1.85

14

NUT,CRANKSHAFT BRG LH

12664-04F00

$54.60

15

GEAR, PRIMARY DRIVE | NT:28

21111-32E00

$86.48

16

NUT

09140-20013

$3.90

17

WASHER

09164-20003

$4.18

18

KEY

09420-05007

$5.00

19

PISTON

12111-32E00-0F0

$127.28

20

RING SET,PISTON

12140-32E10

$47.66

21

PIN, PISTON

12151-14A01

$22.03

22

CIRCLIP

09381-23003

$1.52
