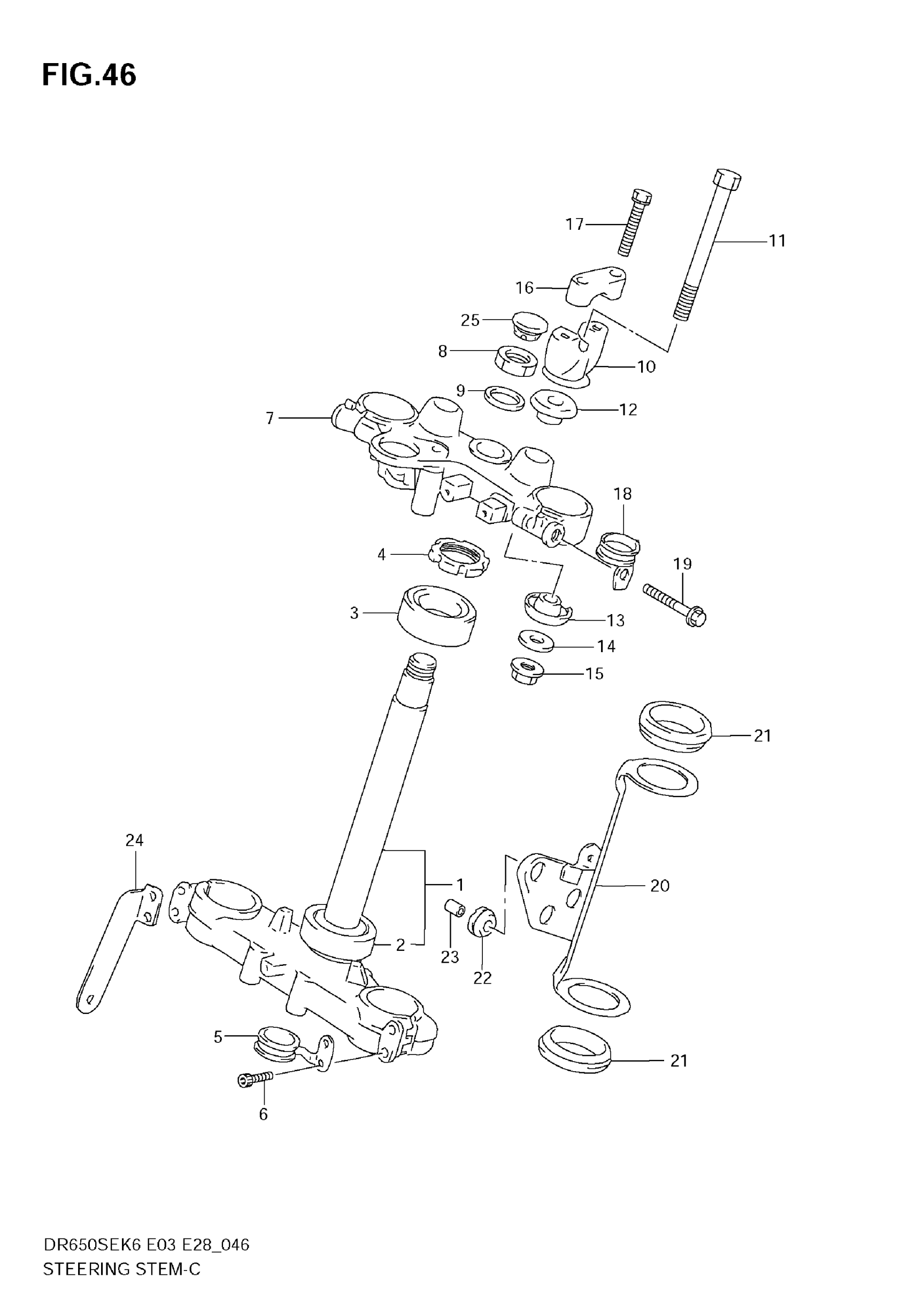

Suzuki DR650SE (2009) STEERING STEM Diagram

#

Description
Price

1

BRACKET,UNDER | Includes Item(s) 2 This part replaces 51410-32E00.

51410-32E01

$697.20

2

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

$43.42

3

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

$43.42

4

NUT STEERING

51631-28E00

$32.60

5

GUIDE,BRAKE HOSE LOWER

51453-32E10

$33.03

6

BOLT, LOWER

07130-08407

$2.98

7

HEAD,STEERING STEM

51311-32E00

$417.37

8

NUT

51353-32E00

$40.38

9

WASHER

51356-27C00

$7.62

10

HOLDER, HANDLE LOWER

56221-14330-291

$60.18

11

BOLT

56321-28C00

$8.14

12

RUBBER, UPPER

56241-14A00

$44.68

13

RUBBER, LOWER

56242-14200

$35.50

14

WASHER

09160-10035

$1.86

15

NUT

08319-31107

$2.80

16

HOLDER, HANDLE UPPER

56211-29320-291

$20.58

17

BOLT

01570-0835A

$3.00

18

CLIP

51288-32E00

$33.67

19

BOLT, UPPER

01550-1040A

$3.37

20

COVER,FORK RH

51530-32E00

$118.23

20

COVER,FORK LH

51540-32E00

Unavailable

21

DAMPER,HEAD LAMP HSG BRKT This part replaces 51553-15D00.

51553-15D01

$4.93

22

CUSHION

09320-09018

$2.28

23

SPACER

09180-06310

$1.99

24

BRACKET, SIDE RH

35956-44B01

$13.35

24

BRACKET, SIDE LH

35957-44B01

$13.35

25

CAP (OD:20) This part replaces 09250-12006.

09250-12016

$1.73
