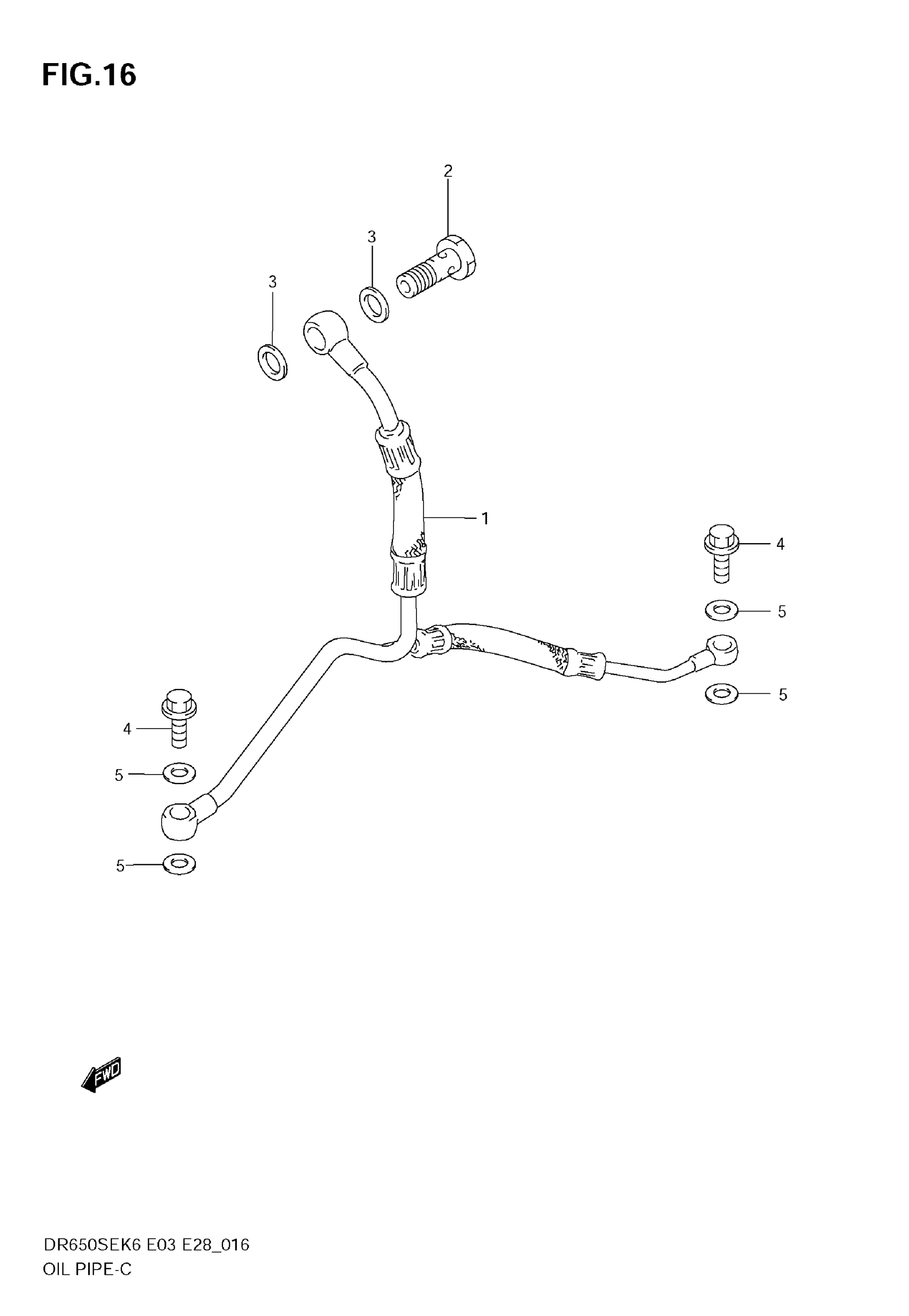

Suzuki DR650SE (2009) OIL PIPE Diagram

#

Description

Price

1

PIPE,T/M&CSHAFT OIL

16480-32E10

$223.55

2

BOLT, UNION (12X27)

09360-12008

$8.70

3

GASKET

09168-12017

$1.97

4

BOLT, UNION (10X24)

09360-10066

$5.15

5

GASKET

09168-10007

$1.71
