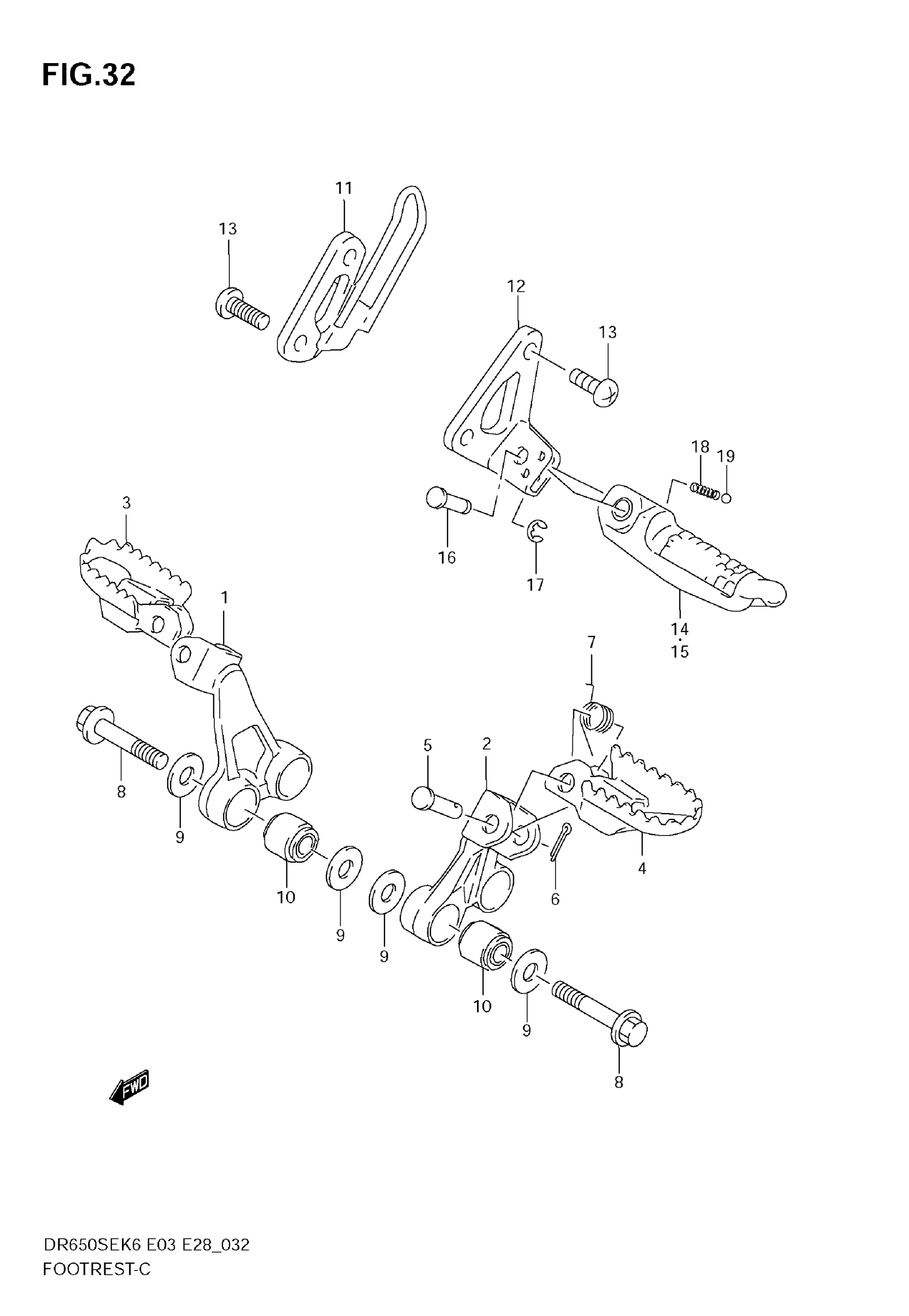

Suzuki DR650SE (2009) FOOTREST Diagram

#

Description
Price

1

BAR, FOOTREST RH

43510-32E00

$139.58

2

BAR, FOOTREST LH

43520-32E00

$139.58

3

FOOTREST, FR RH (BLACK) This part replaces 43550-14D30.

43550-03B00-019

$46.15

4

FOOTREST, FR LH (BLACK) This part replaces 43560-14D30.

43560-03B00-019

$47.05

5

PIN

09200-10013

$2.78

6

COTTER PIN

04111-2020A

$1.22

7

SPRING

09448-15004

$2.33

8

BOLT

09103-10232

$6.15

9

WASHER

09160-10124

$2.97

10

BUSH

09319-10033

$6.25

11

BRACKET,PILLION FOOT RH (BLAC

43650-32E00-019

$101.80

12

BRACKET,PILLION FOOT LH (BLAC

43750-32E00-019

$85.15

13

BOLT, BRACKET

09106-08161

$4.85

14

BAR, RH

43610-23E00

$85.17

15

BAR, LH

43710-23E00

$88.87

16

PIN

09208-08011

$2.80

17

E-RING

08332-1106B

$1.98

18

SPRING

09440-05005

$1.45

19

BALL

06111-07004

$1.22
