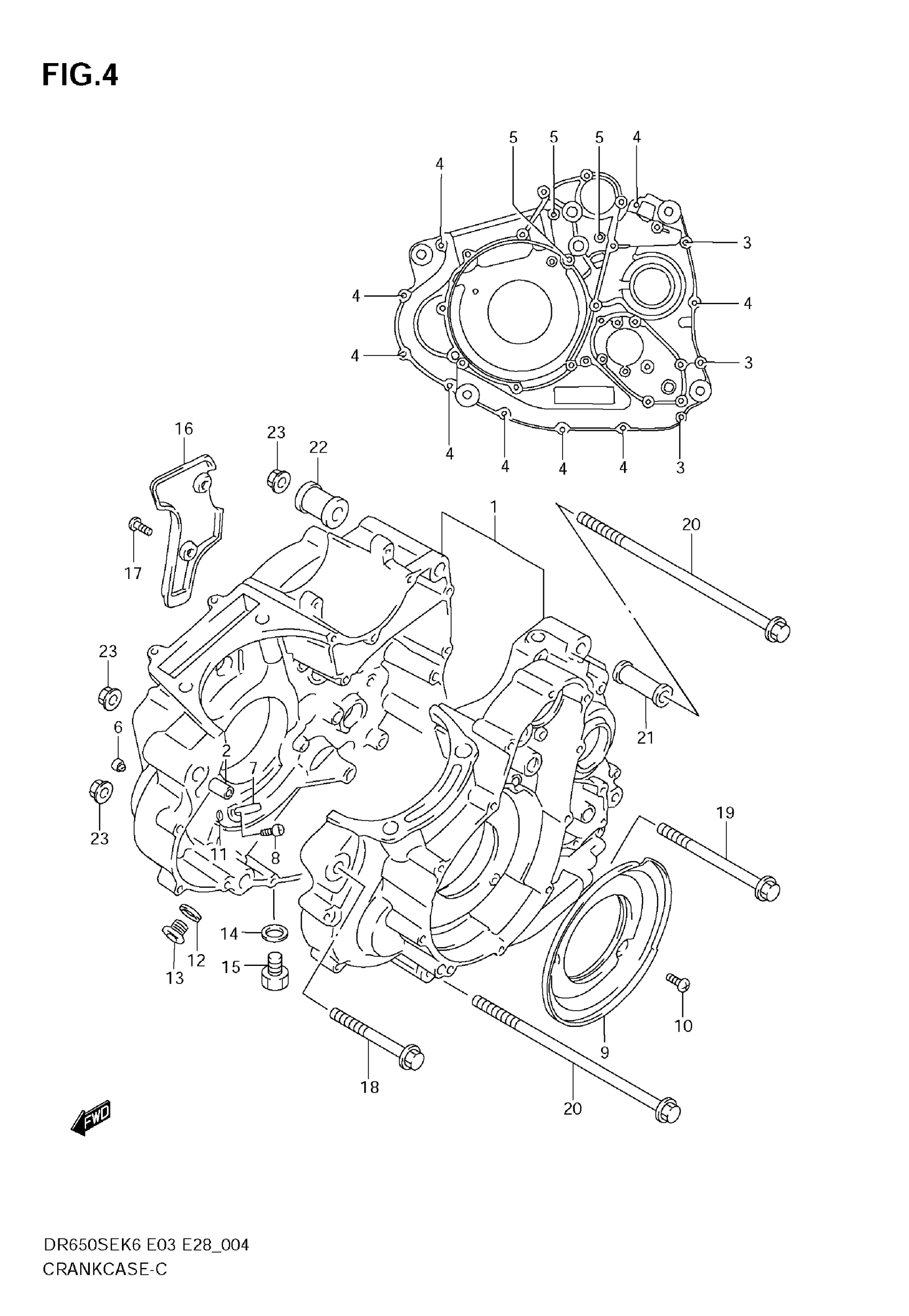

Suzuki DR650SE (2009) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | MODEL K6 This part replaces 11300-32880.

11300-32882

$1,128.62

1

CRANKCASE SET | MODEL K7/K8/K9; Includes Item(s) 2 - 6 This part replaces 11300-32881.

11300-32882

$1,128.62

2

PIN

09202-10006

Unavailable

3

BOLT (L:60)

09103-06261

$3.00

4

BOLT (L:40)

09103-06215

$2.80

5

BOLT (6X80) | MODEL K6

01547-0680B

$3.01

5

BOLT (6X80) | MODEL K7/K8/K9

01547-0680A

$3.58

6

JET, OIL GALLERY

11180-43410

Unavailable

7

JET,PISTON COOLING

11390-04F00

$26.03

8

BOLT (6X12)

09106-06075

$2.58

9

SEPARATOR,CRANKCASE OIL

11323-32E00

$16.45

10

SCREW | MODEL K6

02112-0612B

$2.01

10

SCREW | MODEL K7/K8/K9

02112-0612A

$1.46

11

O RING (D:1.2 ID:4.0)

09280-04004

$1.76

12

GASKET, OIL GALLERY PLUG

09168-14002

$2.83

13

PLUG, SHAFT This part replaces 09248-14012.

09248-14011

$2.81

14

GASKET, OIL DRAIN PLUG

09168-14002

$2.83

15

PLUG, OIL DRAIN

09247-14026

$3.49

16

COVER,BREATHER

11317-32E00

$15.83

17

SCREW, BREATHER COVER | MODEL K6

02112-0612B

$2.01

17

SCREW, BREATHER COVER | MODEL K7/K8/K9

02112-0612A

$1.46

18

BOLT (10X100)

09103-10110

$9.15

19

BOLT (10X130)

09103-10237

$10.53

20

BOLT (10X235)

09103-10239

$22.70

21

SPACER (L:65)

11610-45410

Unavailable

22

SPACER (L:27)

11610-20C00

$17.40

23

NUT

09159-10115

$3.31
