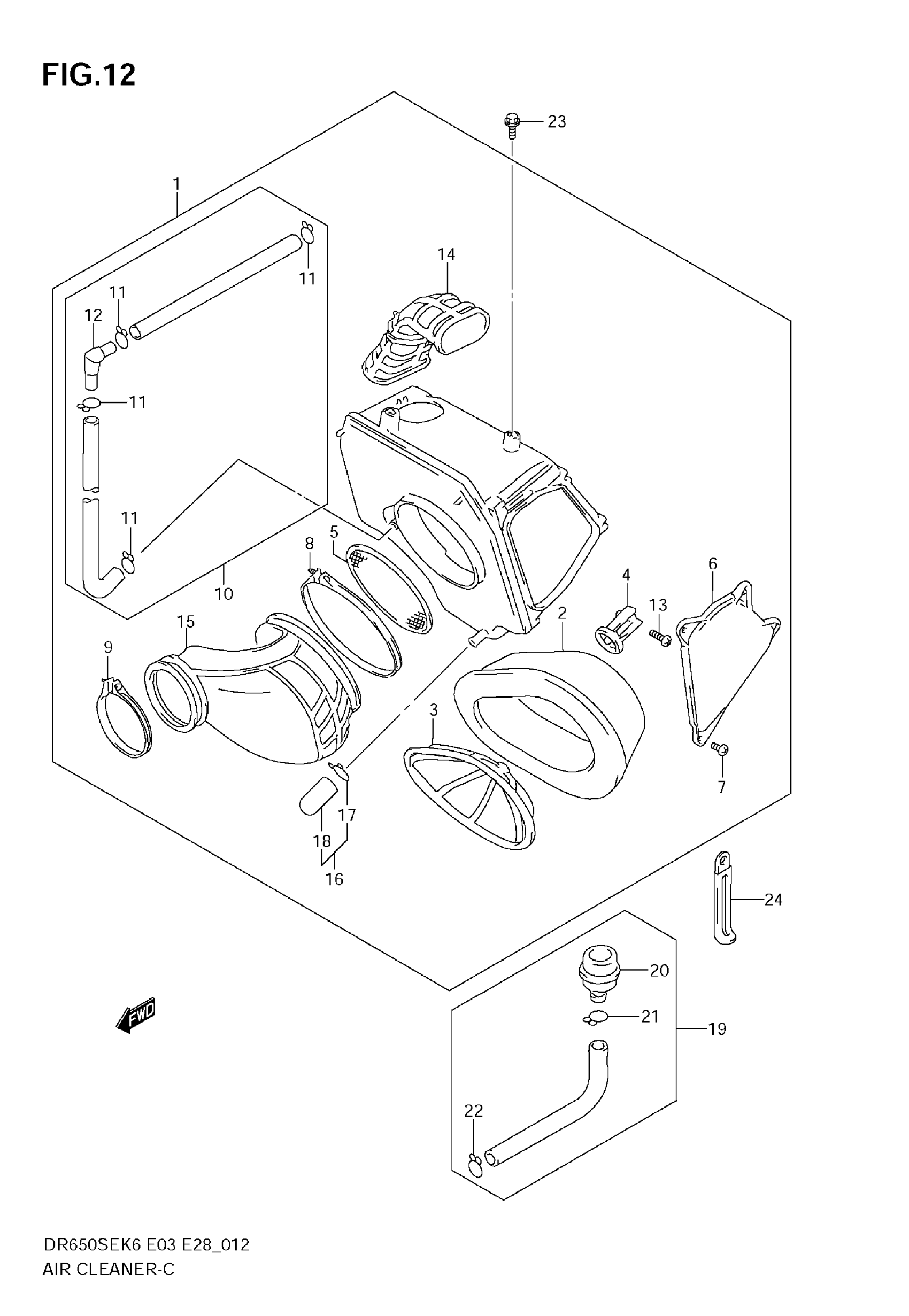

Suzuki DR650SE (2009) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY,AIR | Includes Item(s) 2 - 18

13700-32E00

$480.35

2

FILTER

13780-32E00

$41.38

3

HOLDER

13791-32E00

$19.95

4

STOPPER

13792-32E00

$7.07

5

TRAP, FRAME

13810-14D02

$10.64

6

CAP

13740-32E00

$27.56

7

BOLT

02142-0512B

$1.90

8

.CLAMP, OUTLET TUBE

13826-14D01

$8.54

9

CLAMP

09402-64203

$5.94

10

TUBE ASSY, BREATHER

13850-32E00

$36.68

11

CLIP

09401-14301

$2.17

12

JOINT

13858-14D20

$6.80

13

SCREW

02142-0620B

$1.81

14

TUBE, INLET

13891-32E00

$60.85

15

TUBE, OUTLET

13881-32E00

$108.60

16

PLUG ASSY, DRAIN

13856-19B03

$12.35

17

CLIP

09401-14101

$2.37

18

.PLUG

13859-41B10

$6.94

19

CLEANER ASSY,AIR,NO.2 | Includes Item(s) 20 - 22

13800-32E00

$64.25

20

FILTER

18780-32E00

$26.80

21

CLIP

09401-16401

$2.87

22

CLIP

09401-14301

$2.17

23

BOLT

01550-0612B

$2.38

24

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.76
