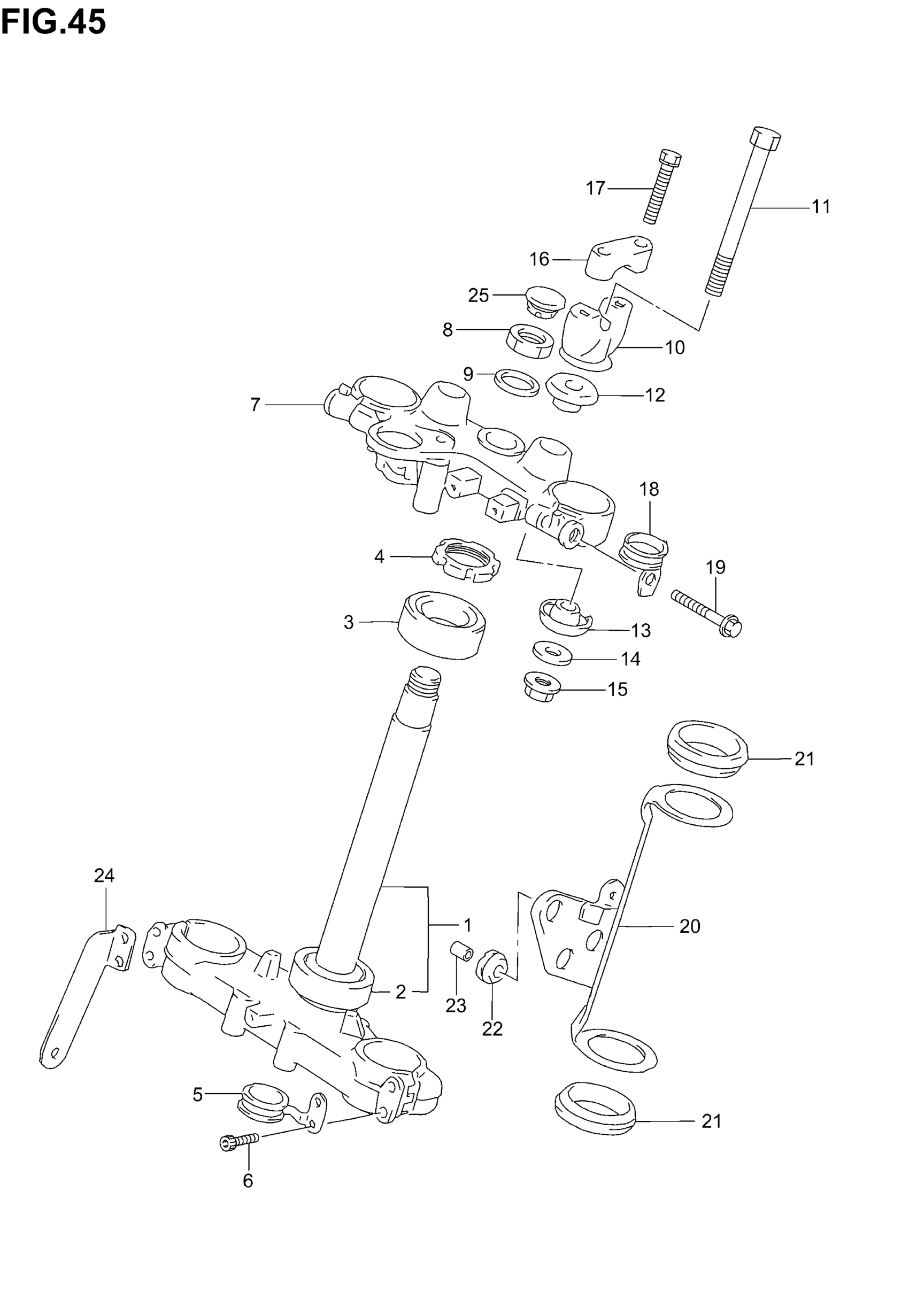

Suzuki DR650SE (2005) STEERING STEM Diagram

#

Description
Price

1

BRACKET,UNDER | Includes Item(s) 2 This part replaces 51410-32E00.

51410-32E01

$697.20

2

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

$42.15

3

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

$42.15

4

NUT STEERING

51631-28E00

$32.60

5

CLAMP, LOWER | MODEL K1

51453-32E00

Unavailable

5

GUIDE,BRAKE HOSE LOWER | MODEL K2/K3/K4/K5

51453-32E10

$33.03

6

BOLT, LOWER

07130-08407

$2.88

7

HEAD,STEERING STEM

51311-32E00

$417.37

8

NUT

51353-32E00

$40.38

9

WASHER

51356-27C00

$7.62

10

HOLDER, HANDLE LOWER

56221-14330-291

$60.18

11

BOLT

56321-28C00

$7.80

12

RUBBER, UPPER

56241-14A00

$31.68

13

RUBBER, LOWER

56242-14200

$33.97

14

WASHER

09160-10035

$1.80

15

NUT

08319-31107

$2.73

16

HOLDER, HANDLE UPPER

56211-29320-291

$14.60

17

BOLT This part replaces 01570-08353.

01570-0835A

$2.90

18

CLIP

51288-32E00

$33.67

19

BOLT This part replaces 01550-10403.

01550-1040A

$3.25

20

COVER,FORK RH

51530-32E00

$118.23

20

COVER,FORK LH

51540-32E00

Unavailable

21

DAMPER,HEAD LAMP HSG BRKT This part replaces 51553-15D00.

51553-15D01

$3.66

22

CUSHION

09320-09018

$2.28

23

SPACER

09180-06310

$1.92

24

BRACKET, SIDE RH

35956-44B01

$13.35

24

BRACKET, SIDE LH

35957-44B01

$13.35

25

CAP (OD:20) This part replaces 09250-12006.

09250-12016

$1.67
