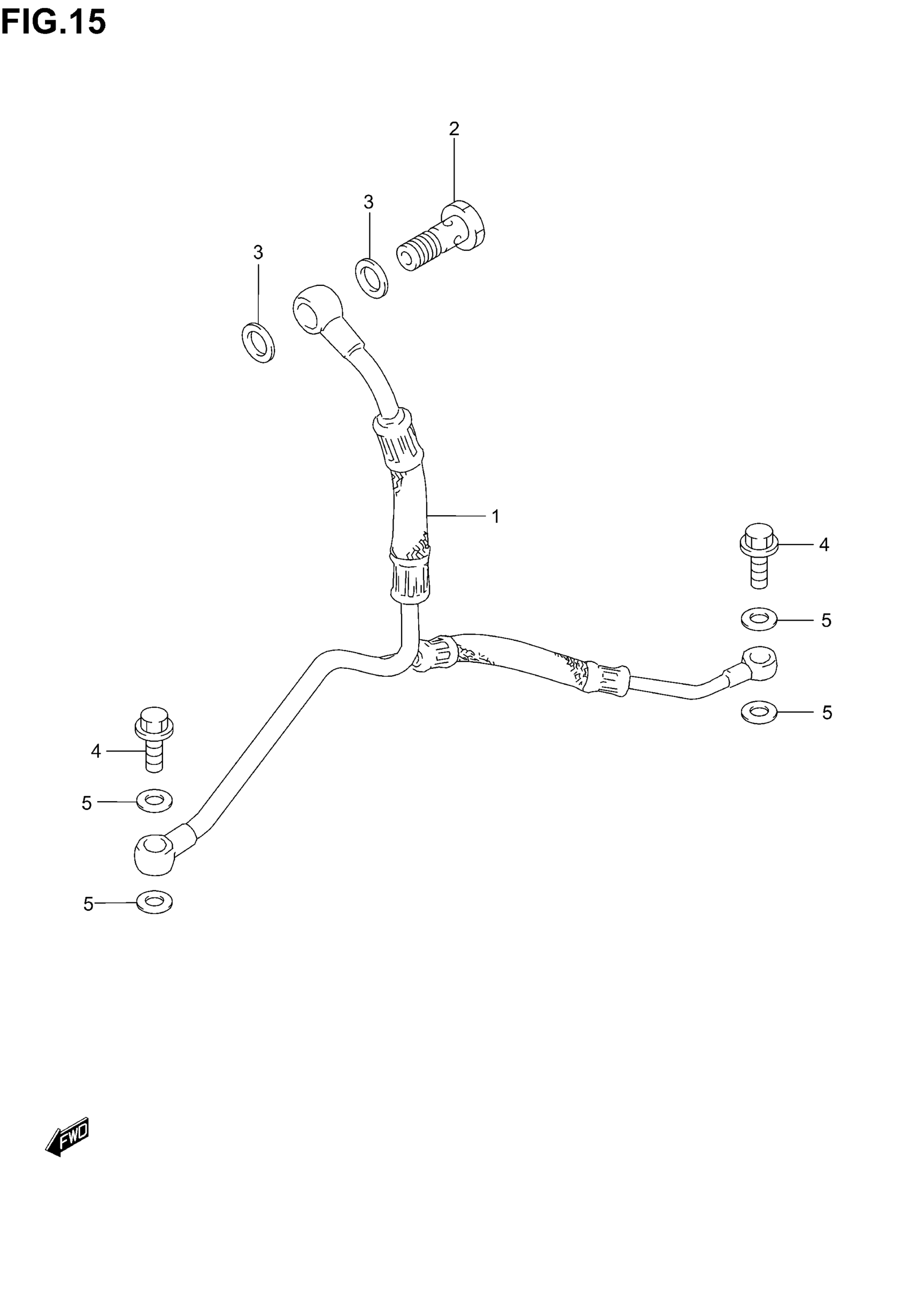

Suzuki DR650SE (2005) OIL PIPE Diagram

#

Description

Price

1

PIPE,T/M&CSHAFT OIL

16480-32E10

$223.55

2

BOLT, UNION (12X27)

09360-12008

$8.70

3

GASKET

09168-12017

$1.97

4

UNION BOLT This part replaces 09360-10032.

09360-10055

$5.25

5

GASKET

09168-10007

$1.71
