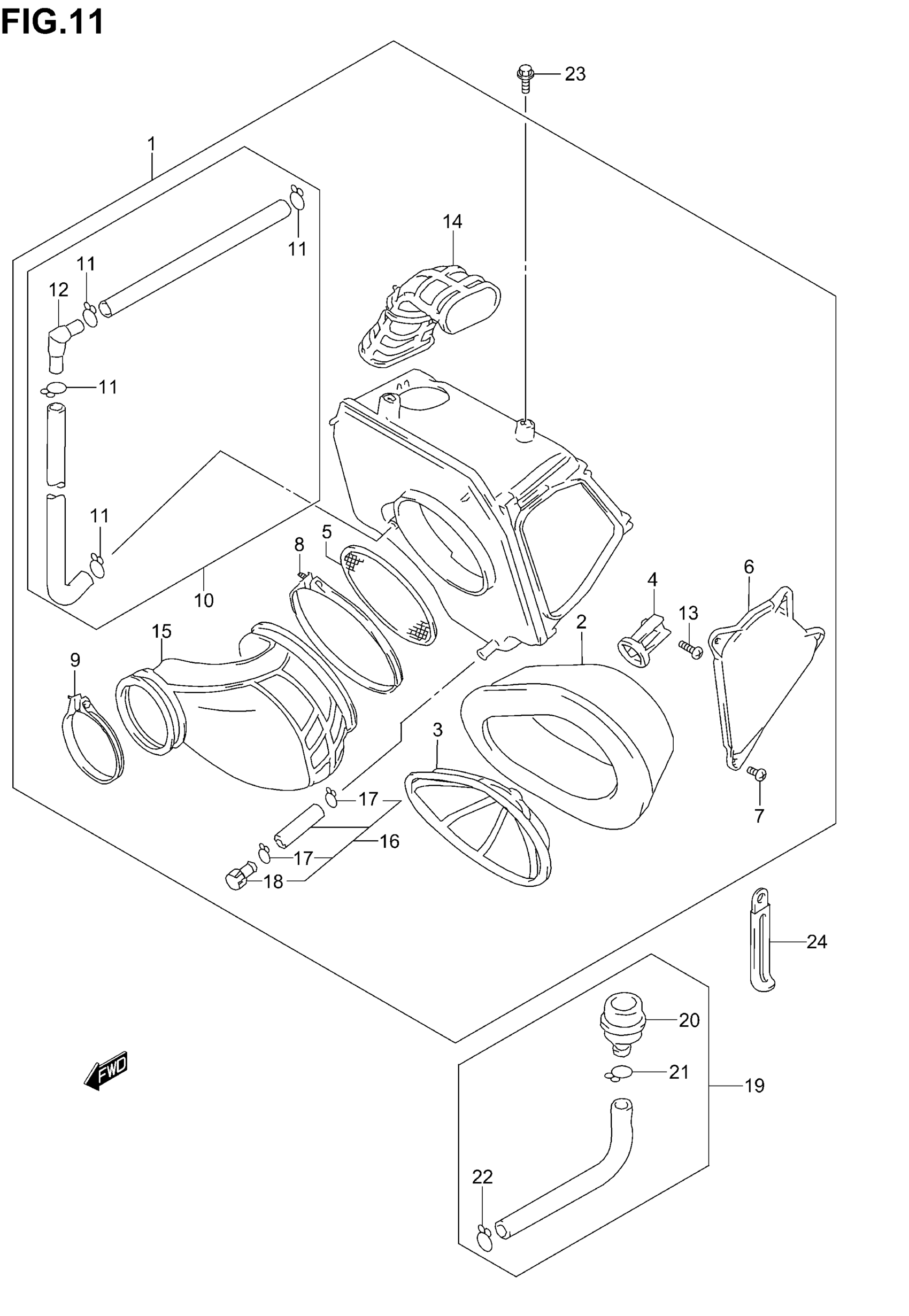

Suzuki DR650SE (2005) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY,AIR | Includes Item(s) 2 - 18

13700-32E00

$480.35

2

FILTER

13780-32E00

$41.38

3

HOLDER

13791-32E00

$19.95

4

STOPPER

13792-32E00

$7.07

5

TRAP, FRAME

13810-14D02

$10.64

6

CAP

13740-32E00

$27.56

7

.SCREW This part replaces 02142-05123.

02142-0512A

$1.37

8

.CLAMP, OUTLET TUBE

13826-14D01

$8.54

9

CLAMP

09402-64203

$5.94

10

TUBE ASSY, BREATHER

13850-32E00

$36.68

11

CLIP

09401-14301

$2.17

12

JOINT This part replaces 13858-14D10.

13858-14D20

$6.80

13

SCREW This part replaces 02142-06203.

02142-0620A

$1.38

14

TUBE, INLET

13891-32E00

$60.85

15

TUBE, OUTLET

13881-32E00

$108.60

16

TUBE ASSY, DRAIN | MODEL K1/K2/K3

13870-32E00

Unavailable

16

PLUG ASSY, DRAIN | MODEL K4/K5

13856-19B03

$12.35

17

CLIP

09401-14301

$2.17

18

PLUG | MODEL K1/K2/K3

13877-00190

$6.00

18

.PLUG | MODEL K4/K5

13859-41B10

$6.94

19

CLEANER ASSY,AIR,NO.2 | Includes Item(s) 20 - 22

13800-32E00

$64.25

20

FILTER

18780-32E00

$26.80

21

CLIP

09401-16401

$2.87

22

CLIP

09401-14301

$2.17

23

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

24

CLAMP This part replaces 09404-06431.

09404-06039

$1.73
