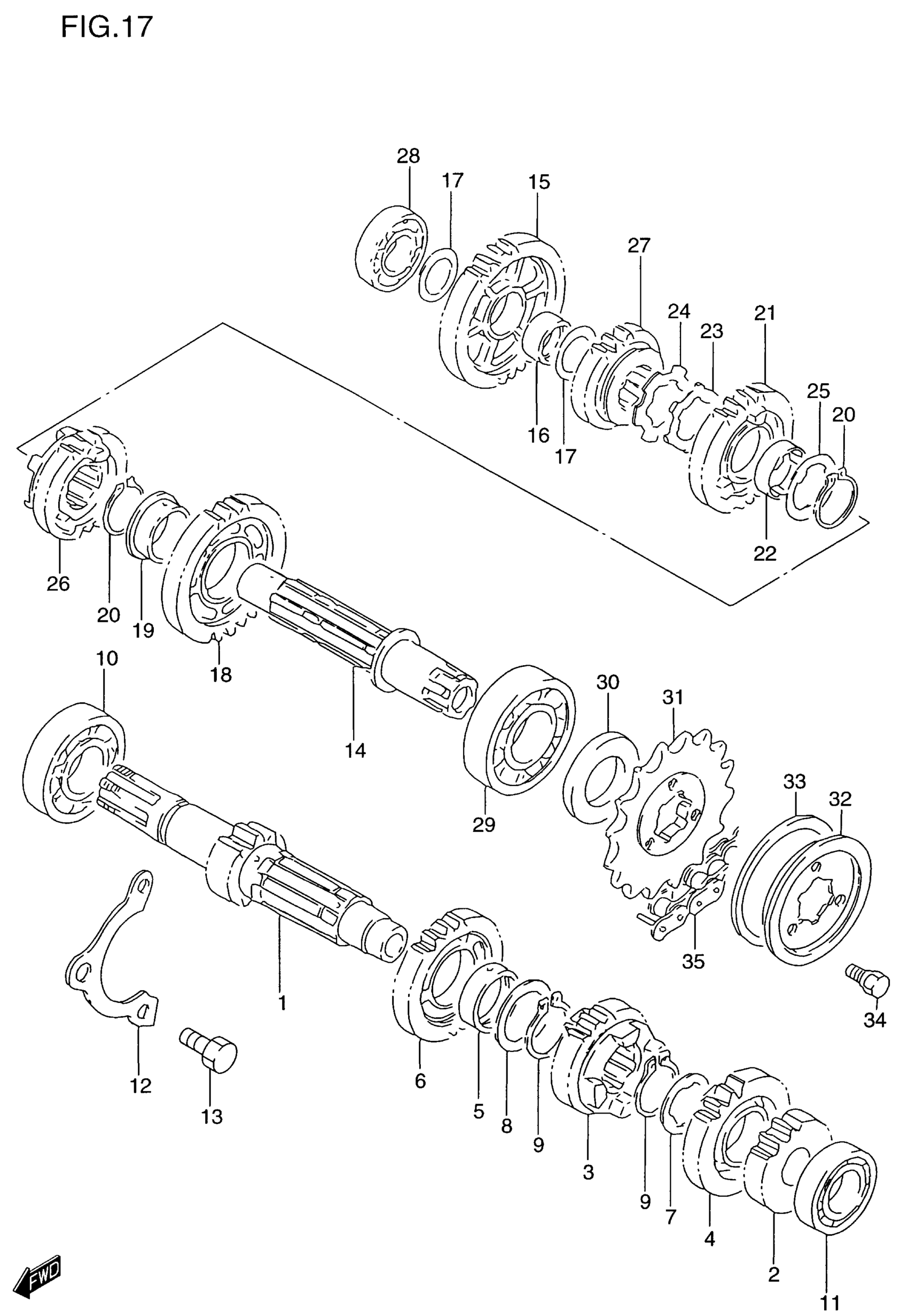

Suzuki DR650SE (2000) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT | MODEL T This part replaces 24121-14A10.

24120-14810

$298.40

1

COUNTERSHAFT (NT:12) | MODEL V/W/X/Y

24120-14810

$298.40

2

GEAR, 2ND DRIVE (NT:16)

24221-14A10

$130.03

3

GEAR, 3RD DRIVE This part replaces 24231-12D20.

24231-12D21

$134.47

4

GEAR, 4TH DRIVE | MODEL T/V This part replaces 24241-14A00.

24241-14A10

$130.03

4

GEAR, 4TH DRIVE (NT:21) | MODEL W/X/Y

24241-14A10

$130.03

5

BUSH, 4TH DRIVE GEAR This part replaces 09300-25023.

24252-19F00

$19.32

6

GEAR, 5TH DRIVE (NT:23)

24251-14A10

$125.27

7

WASHER LOCK (25.1X31X1.0)

09167-25012

$4.02

8

WASHER, 5TH DRIVE | MODEL T This part replaces 08211-25341.

09181-25167

$2.85

8

WASHER (25X34X1.0) | MODEL V/W/X/Y

09181-25167

$2.85

9

SNAP RING

09380-25003

$2.80

10

BEARING, RH (22X56X16)

09262-22028

$69.91

11

BEARING (17X40X12) | MODEL T/V/W/X This part replaces 09262-17018.

09262-17027

$37.62

11

BEARING, CNTR SHAFT LH | MODEL Y This part replaces 09262-17045.

09262-17046

$41.35

12

RETAINER,CNTR SHAFT BRG

24741-14A00

$10.35

13

PLUG, DRAIN This part replaces 01500-08163.

01500-0816B

$2.50

14

DRIVE SHAFT | MODEL T This part replaces 24131-14A10.

24130-14A10

$225.80

14

DRIVESHAFT | MODEL V/W/X/Y

24130-14A10

$225.80

15

GEAR, 1ST DRIVEN (NT:29)

24311-14A01

$127.13

16

BUSH

09300-20032

$19.02

17

WASHER | MODEL T

08211-20301

$2.97

17

WASHER (20X30X1.0) | MODEL V/W/X/Y

09181-20195

$2.68

18

GEAR, 2ND DRIVEN (NT:26)

24321-14A10

$130.03

19

BUSH

09301-25002

$19.93

20

SNAP RING

09380-25003

$2.80

21

GEAR, 3RD DRIVEN (NT:26)

24331-14A20

$134.47

22

BUSH, 3RD DRIVEN GEAR This part replaces 24332-24500.

24332-24510

$21.07

23

WASHER

09169-25001

$2.95

24

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.58

25

WASHER

09167-25016

$4.03

26

GEAR, 4TH DRIVEN | MODEL T/V This part replaces 24341-14A01.

24341-14A10

$127.63

26

GEAR, 4TH DRIVEN (NT:21) | MODEL W/X/Y

24341-14A10

$127.63

27

GEAR, 5TH DRIVEN | MODEL T/V This part replaces 24351-14A00.

24351-14A10

$125.27

27

GEAR, 5TH DRIVEN (NT:19) | MODEL W/X/Y

24351-14A10

$125.27

28

BEARING, RH (20X42X12)

09262-20059

$27.83

29

BEARING (25X62X17) This part replaces 09262-25083.

09262-25125

$75.18

30

OIL SEAL, LH (25X44X7)

09283-25096

$9.58

31

SPROCKET (NT:15)

27511-31D00

$49.48

32

PLATE (YELLOW)

27512-44B00

$5.95

33

DAMPER

27517-37400

$13.01

34

BOLT

09111-06039

$5.43

35

CHAIN, DRIVE This part replaces 27600-32C10-110.

27600-32C90-110

$255.48
