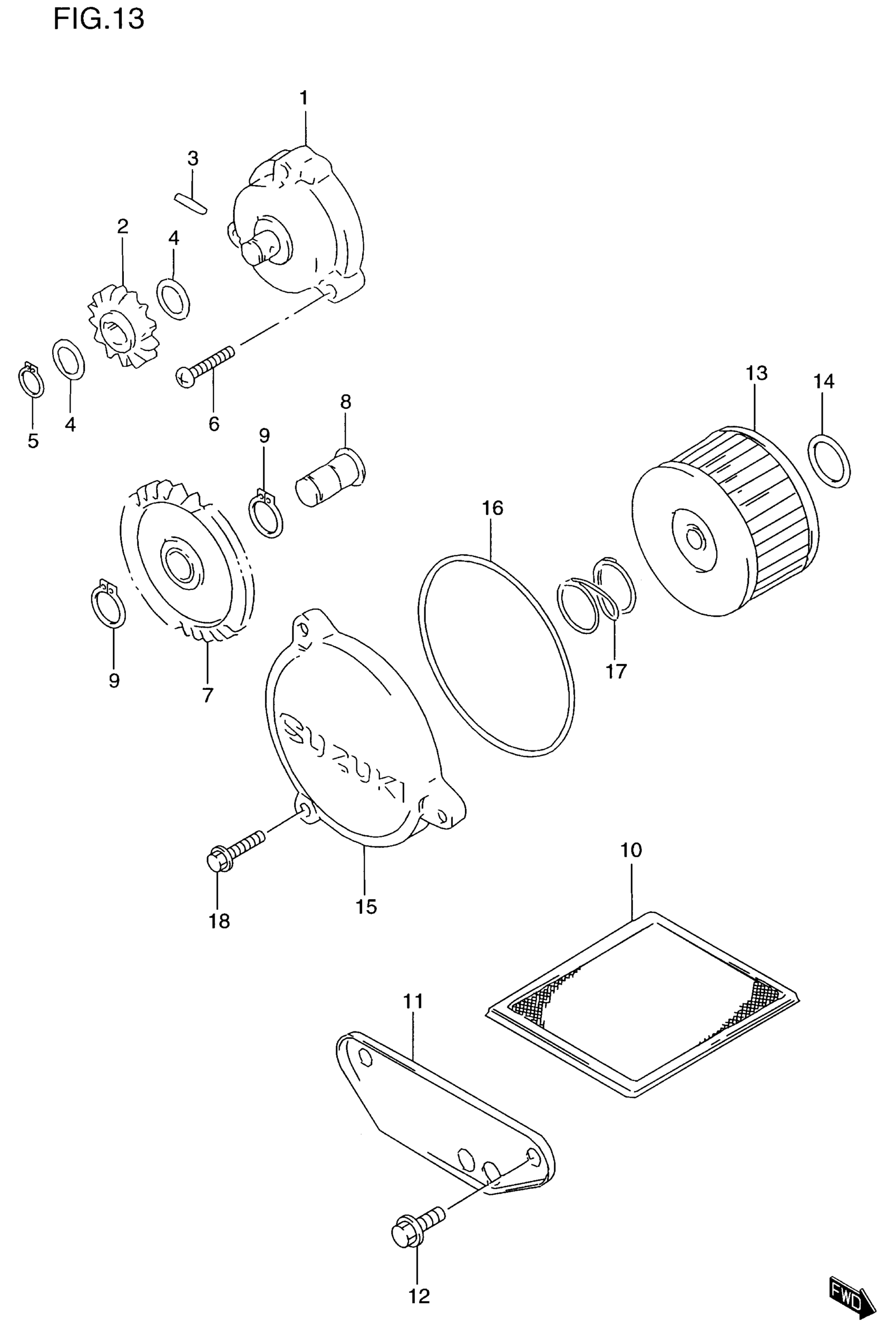

Suzuki DR650SE (2000) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY,ENG OIL

16400-32E00

$212.72

2

GEAR, DRIVEN (NT:15) | MODEL T/V

16331-44B00

Unavailable

2

GEAR, DRIVEN (NT:15) | MODEL W/X/Y

16331-32E00

$46.52

3

PIN

09261-04009

$1.50

4

WASHER | MODEL T/V

08221-10185

$2.35

4

WASHER (10X20X0.5) | MODEL W/X/Y

09181-10186

$1.99

5

CIRCLIP This part replaces 08331-31106.

08331-31109

$1.77

6

SCREW This part replaces 02112-06253.

02112-0625A

$1.79

7

GEAR, OIL PUMP DRIVE (NT:30)

16321-32E00

$24.61

8

SHIFT,ENG OIL PUMP DRIVE GEAR This part replaces 16322-32E00.

16322-32E01

Unavailable

9

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.77

10

STRAINER,ENG OIL This part replaces 16520-32E00.

16520-32E01

$12.33

11

CAP,OIL STRAINER

16523-32E00

Unavailable

12

BOLT (6X12) This part replaces 09103-06083.

09103-06285

$1.97

13

FILTER, ENGINE OIL | MODEL T/V This part replaces 16510-37440.

16510-37450

$5.39

13

FILTER, ENGINE OIL | MODEL W/X/Y

16510-37450

$5.39

14

O-RING (D:2.4,ID:15.8)

09280-15007

$1.71

15

CAP,OIL FILTER

16512-14D00

$40.83

16

.O RING (D:2.4,ID:73)

09280-72001

$4.47

17

SPRING

09440-21006

$2.01

18

BOLT

01547-06167

$1.64
