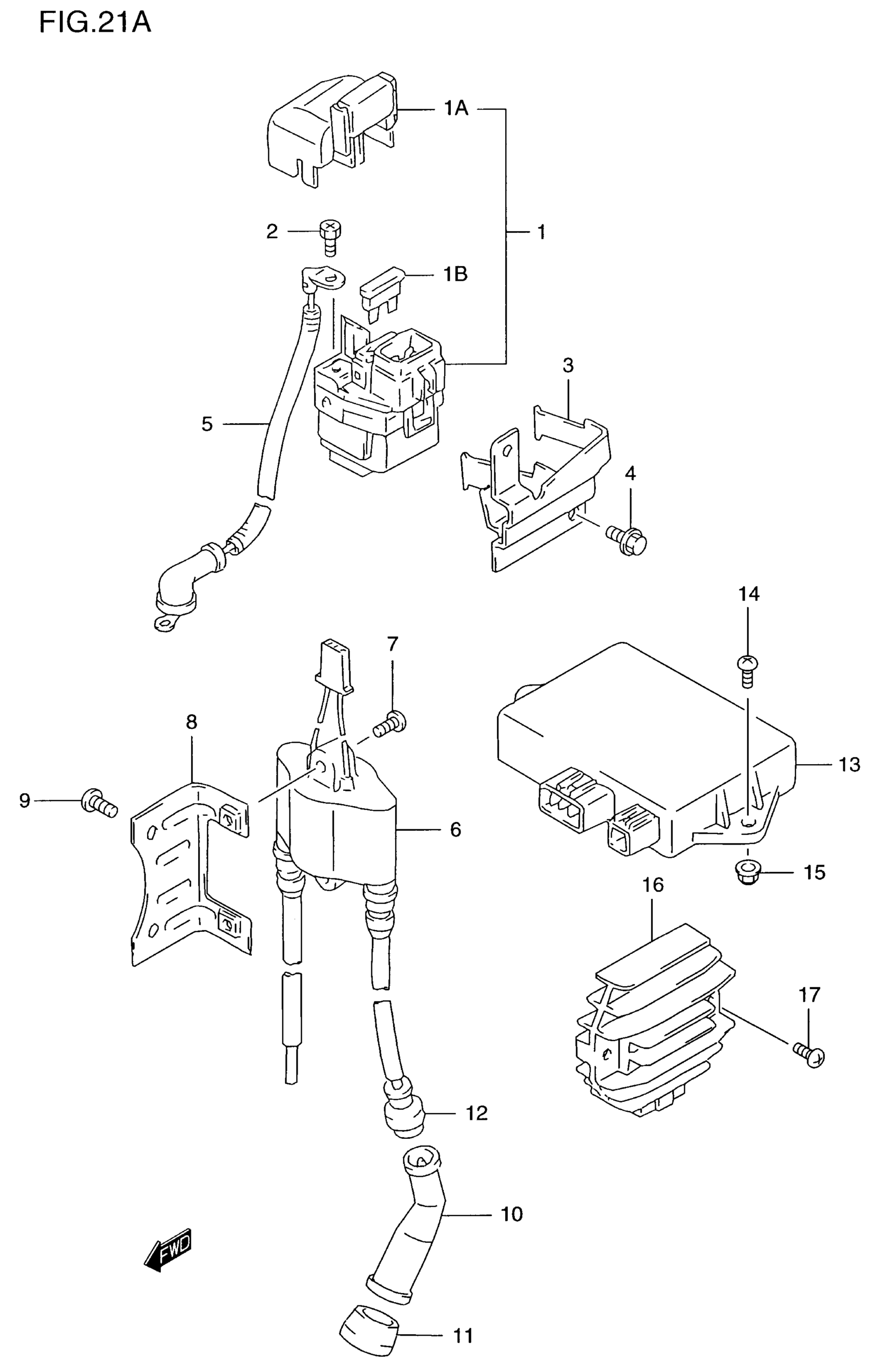

Suzuki DR650SE (2000) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY, STARTING MOTOR | Includes Item(s) 1A - 1B

31800-26E00

$89.07

1A

COVER ASSY

31861-26E00

$3.92

1B

FUSE (30A)

09481-30101

$2.28

2

BOLT (6X8)

09128-06013

$1.24

3

BRACKET,STG MOT RLY

31890-32E00

Unavailable

4

BOLT, STARTING MOTOR

09103-06078

$1.95

5

WIRE,STARTER MOTOR

33810-32E00

$25.35

6

COIL ASSY,IGNITION

33410-32E00

$155.96

7

SCREW This part replaces 02142-06253.

02142-0625A

$1.43

8

BRACKET,IGNITION COIL

33416-32E00

Unavailable

9

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

$1.38

10

CAP, SPARK PLUG OUTER

33510-43010

$22.88

11

SEAL, PLUG

33541-47D00

$7.16

12

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$3.97

13

CDI UNIT | MODEL T/V

32900-32E00

Unavailable

13

CDI UNIT | MODEL W/X/Y

32900-32E10

$1,078.95

14

SCREW This part replaces 02142-06203.

02142-0620A

$1.38

15

NUT This part replaces 08319-31063.

08319-3106A

$2.01

16

RECTIFIER ASSY

32800-32E00

$309.67

17

SCREW This part replaces 02142-06203.

02142-0620A

$1.38
