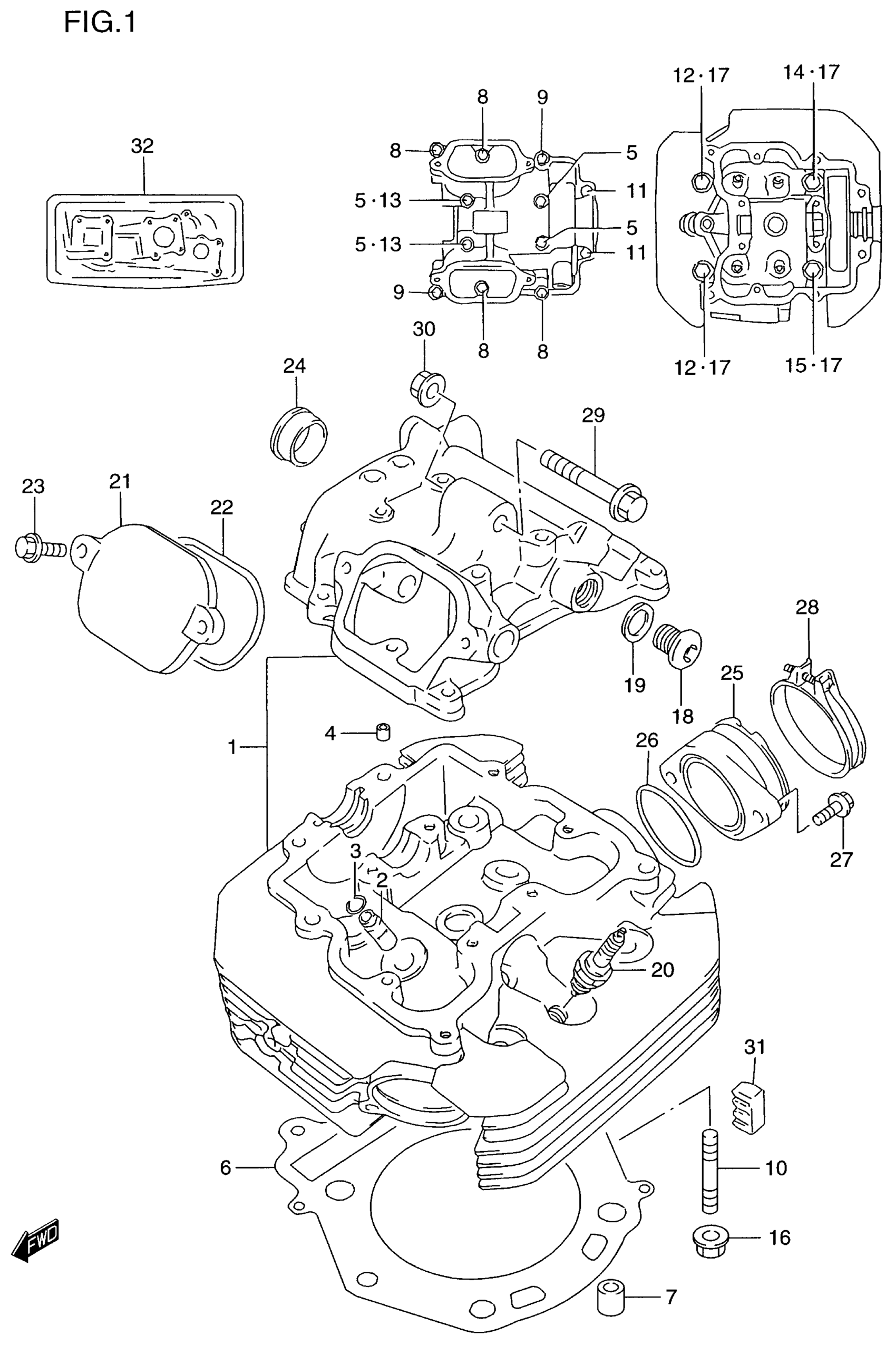

Suzuki DR650SE (2000) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER | Includes Item(s) 2 - 5

11100-32E00

Unavailable

2

GUIDE, VALVE

11115-32E70

$44.28

3

.RING (10X85)

09381-10004

$1.35

4

PIN

09206-08001

$1.77

5

BOLT (6X55)

09103-06102

$1.68

6

GASKET, CYLINDER HEAD

11141-32E00

$39.51

7

PIN

04211-13189

$2.19

8

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

9

BOLT This part replaces 01550-06303.

01550-0630A

$2.31

10

STUD BOLT (8X30)

09108-08142

$2.87

11

BOLT (6X115)

09103-06167

$3.90

12

BOLT (10X180)

09103-10178

$13.30

13

WASHER

09168-06023

$2.01

14

BOLT (10X190)

09103-10179

$14.02

15

BOLT (L:200)

09103-10180

$14.02

16

NUT This part replaces 08316-10083.

08316-1008B

$2.65

17

GASKET

09168-10017

$2.80

18

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.80

19

GASKET

09168-14002

$2.83

20

SPARK PLUG (NGK,CR10E)

09482-00460

$5.75

20

SPARK PLUG (ND,U31ESR-N)

09482-00461

$11.56

20

PLUG SPARK (CR9E) | OPT

09482-00458

$5.75

20

SPARK PLUG (ND,U27ESR-N) | OPT

09482-00459

$5.58

21

CAP,INSPECTION

11175-44B00

Unavailable

22

O RING, INSPECTION CAP | MODEL T This part replaces 11177-44B00.

11177-44B01

$4.73

22

O RING | MODEL V/W/X/Y

11177-44B01

$4.73

23

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

24

PLUG, HEAD

09241-25007

$5.58

25

PIPE,INTAKE

13110-32E00

$34.46

26

O RING (D:2.4 ID:45.7)

09280-46002

$9.46

27

SCREW (6X16)

09126-06014

$2.07

28

CLAMP

09402-58208

$4.84

29

BOLT (8X53)

09103-08332

$5.00

30

NUT | MODEL T/V This part replaces 08319-31085.

08319-3108A

$2.31

30

NUT | MODEL W/X/Y This part replaces 08319-31083.

08319-3108A

$2.31

31

PAD,CYLINDER HEAD RUBBER

11151-32E00

$8.72

32

GASKET SET | MODEL T This part replaces 11400-32870.

11400-32874

$184.18

32

GASKET SET | MODEL V/W This part replaces 11400-32871.

11400-32874

$184.18

32

GASKET SET | MODEL X/Y This part replaces 11400-32872.

11400-32874

$184.18
