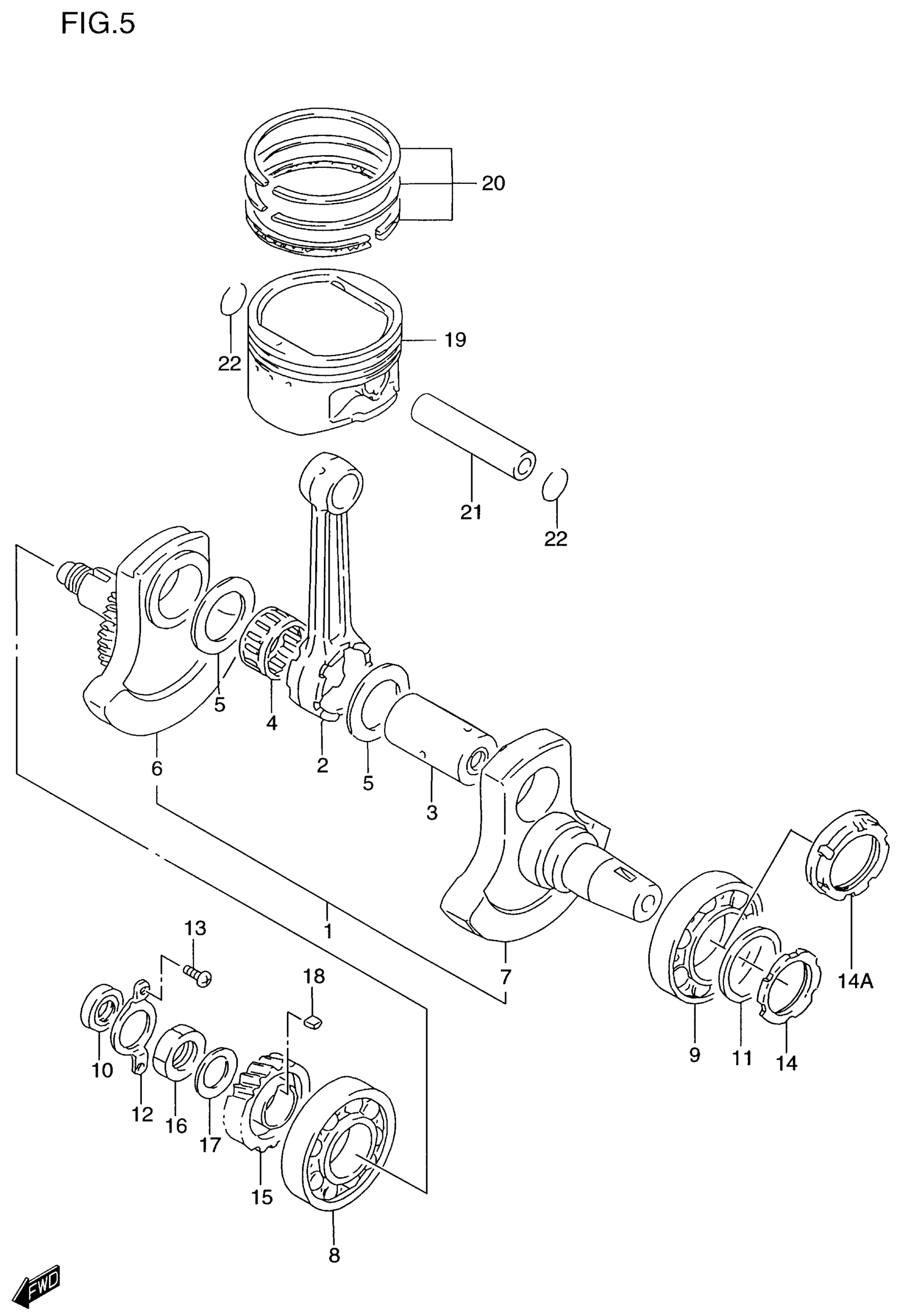

Suzuki DR650SE (2000) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT SET | Includes Item(s) 2 - 7

12000-32820

$1,207.20

2

ROD, CONNECTING

12161-32E00

$177.00

3

PIN, CRANK

12211-32E00

$97.10

4

BEARING (37X47X25)

09263-37004-0C0

$57.85

5

WASHER

09160-37006

$11.52

6

CRANKSHAFT SET, RH

12221-32810

Unavailable

7

CRANKSHAFT, LH

12261-32E00

Unavailable

8

BEARING, RH (40X80X18)

09262-40008

$87.28

9

BEARING, LH

09262-45011

$95.65

10

OIL SEAL (16X30X6)

09282-16002

$8.79

11

SPACER, LH | MODEL T/V

09180-40003

Unavailable

12

PLATE, RH

12548-37400

$4.65

13

SCREW This part replaces 02112-05083.

02112-0508A

$1.43

14

NUT | MODEL T/V

12664-44B00

Unavailable

14A

NUT,CRANKSHAFT BRG LH | MODEL W/X/Y

12664-04F00

$54.60

15

GEAR, PRIMARY DRIVE (NT:28)

21111-32E00

$86.48

16

NUT This part replaces 09140-20008.

09140-20013

$3.90

17

LOCK WASHER

09164-20003

$4.18

18

KEY, GEAR | MODEL T/V

08341-31059

$2.50

18

KEY, GEAR | MODEL W/X/Y

09420-05007

$5.00

19

PISTON

12111-32E00-0F0

$127.28

20

RING SET,PISTON

12140-32E10

$47.66

21

PIN, PISTON

12151-14A01

$22.03

22

CIRCLIP

09381-23003

$1.52
