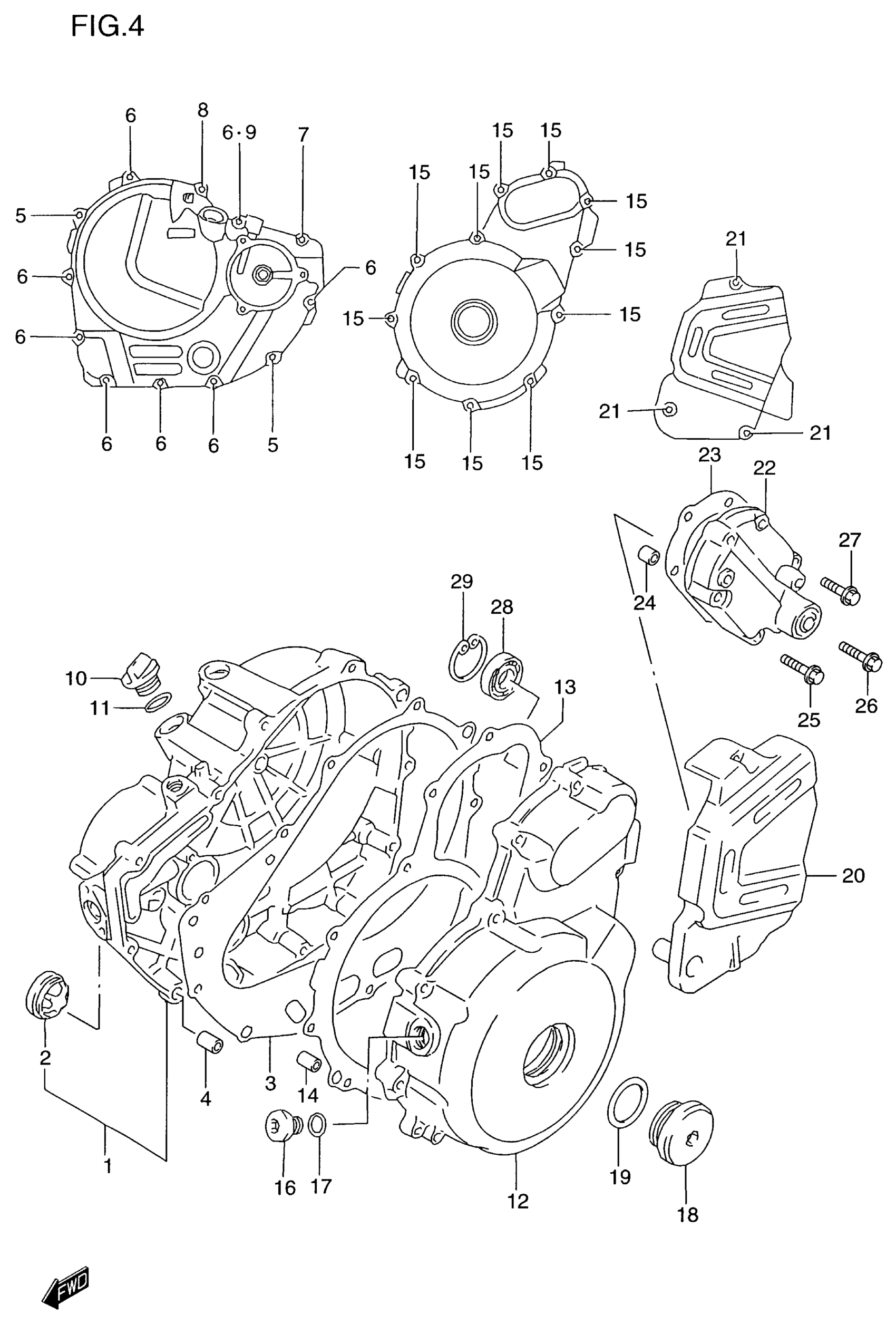

Suzuki DR650SE (2000) CRANKCASE COVER Diagram

#

Description
Price

1

COVER,CLUTCH | Includes Item(s) 2

11340-32E00

$375.68

2

LENS, OIL LEVEL

11971-33210

$16.66

3

GASKET, CLUTCH COVER

11482-32E00

$19.30

4

PIN

04211-09149

$1.64

5

BOLT (6X45)

01547-06457

$2.31

6

BOLT (6X35)

01547-06357

$2.01

7

BOLT (6X30)

01547-06307

$2.06

8

BOLT (6X25)

01547-06257

$2.01

9

GASKET (5.8X11X1.2) | MODEL T/V/W/X

09168-06024

$2.19

9

GASKET (5.8X13X1.2) | MODEL Y

09168-06023

$2.01

10

PLUG, OIL FILLER

09259-20019

$10.55

11

O RING (D:3.1 ID:16.8)

09280-17003

$1.64

12

COVER,MAGNETO | MODEL T/V This part replaces 11351-32E00.

11351-32E01

$304.95

12

COVER,MAGNETO | MODEL W/X/Y

11351-32E01

$304.95

13

GASKET

11483-32E00

$16.94

14

PIN

04211-09149

$1.64

15

BOLT (6X30)

01547-06307

$2.06

16

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.80

17

GASKET

09168-14002

$2.83

18

PLUG

09259-36016-20H

$12.45

19

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.24

20

COVER,ENG SPROCKET

11361-32E00

$102.83

21

BOLT (6X35)

01547-06357

$2.01

22

COVER,GEAR SHF

11371-12D30

$98.00

23

GASKET

11485-12D01

$5.34

24

PIN

04211-09129

$1.64

25

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

$2.73

26

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

27

..BOLT This part replaces 01547-06203.

01547-0620B

$2.43

28

BEARING, STARTER PINION SHAFT | MODEL T/V

09262-12001

$16.90

28

BEARING, STARTER PINION SHAFT | MODEL X/Y F.NO.X2100561~

09262-12001

$16.90

29

CIRCLIP | MODEL T/V This part replaces 08331-41286.

08331-41289

$2.92

29

CIRCLIP | MODEL X/Y F.NO.X2100561~ This part replaces 08331-41286.

08331-41289

$2.92
