1993 Suzuki DR650S Clutch Diagram

← All diagrams

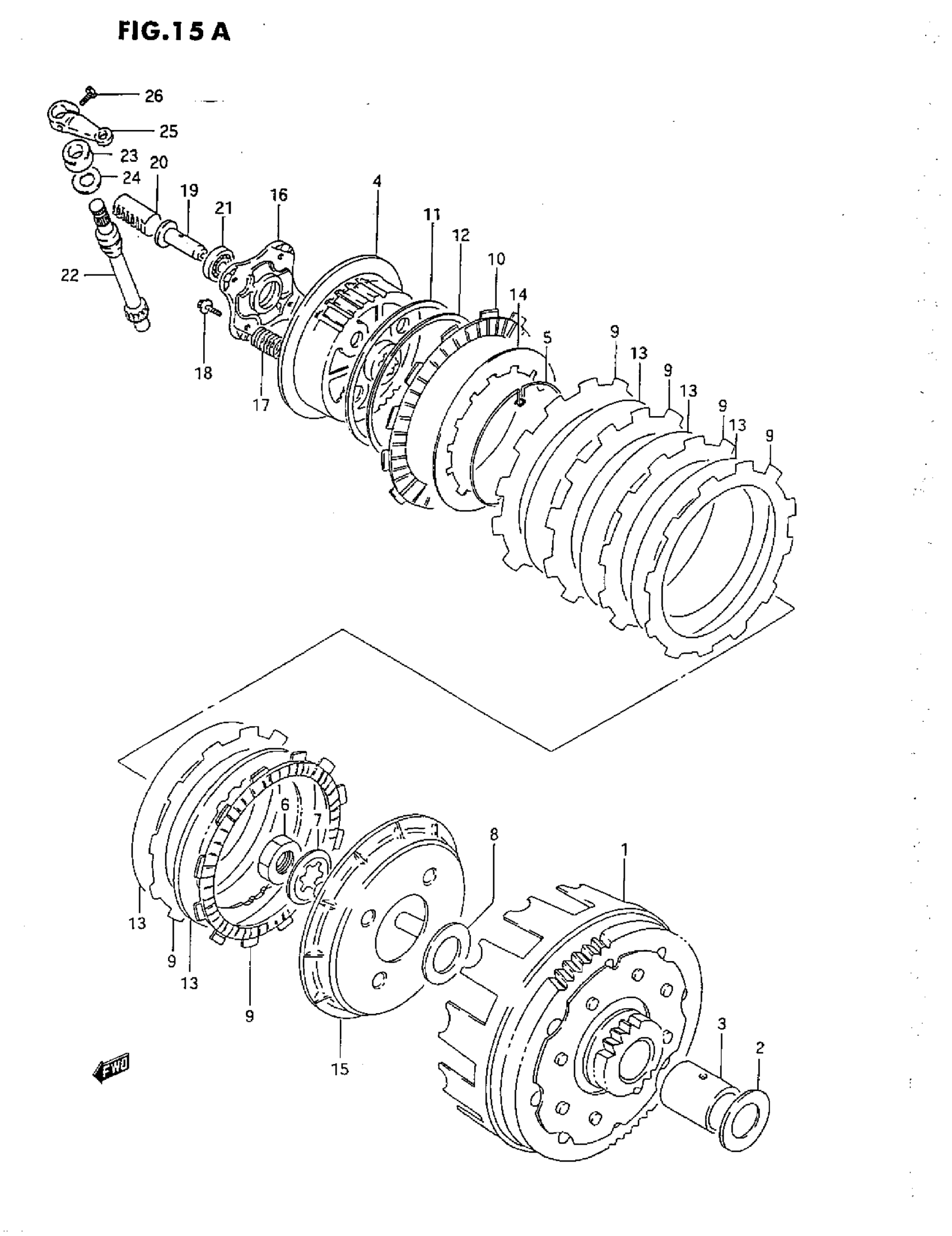

Find the part on the Clutch diagram for your 1993 Suzuki DR650S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki DR650S Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, PRIMARY DRIVEN | NT:66/18

21200-12D01

1
Out of stock

2

WASHER

08211-22383

1
Out of stock

3

SPACER

09180-22023

1
Out of stock

4

HUB, SLEEVE

21410-12D01

1
Out of stock

5

RING, WAVE WASHER

21481-20A01

1
Out of stock

6

NUT

09140-22003

1
Out of stock

7

LOCK WASHER

09167-22005

1
Out of stock

8

WASHER

08211-22383

1
Out of stock

9

PLATE, DRIVE (T:2.8)

21441-12D01

6
Out of stock

10

PLATE, CLUTCH DRIVE NO.2 This part replaces 21442-12D00.

21442-37401

1
Out of stock

11

SEAT, WAVE WASHER (T:1.8)

21471-12E00

1
Out of stock

12

WAVE WASHER

09164-00004

1
Out of stock

13

PLATE, DRIVEN, NO.1 (T:1.4)

21451-14A00

5
Out of stock

14

PLATE, DRIVEN, NO.2 (T:2.0)

21451-05A00

1
Out of stock

15

DISK, PRESSURE

21462-12D00

1
Out of stock

16

PLATE, RELEASE

21465-37400

1
Out of stock

17

SPRING

09440-20013

4
Out of stock

18

BOLT This part replaces 01550-06203.

01550-0620A

4
Out of stock

19

PIECE, CLUTCH PUSH

23121-14A00

1
Out of stock

20

RACK, RELEASE

23165-37400

1
Out of stock

21

BEARING

09262-12001

1
Out of stock

22

PINION, RELEASE

23261-16501

1
Out of stock

23

OIL SEAL (12X22X9)

09285-12006

1
Out of stock

24

WASHER (14.5X22X1) This part replaces 09160-14003.

09160-14054

1
Out of stock

25

ARM, RELEASE

23271-45400

1
Out of stock

26

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

1
Out of stock
