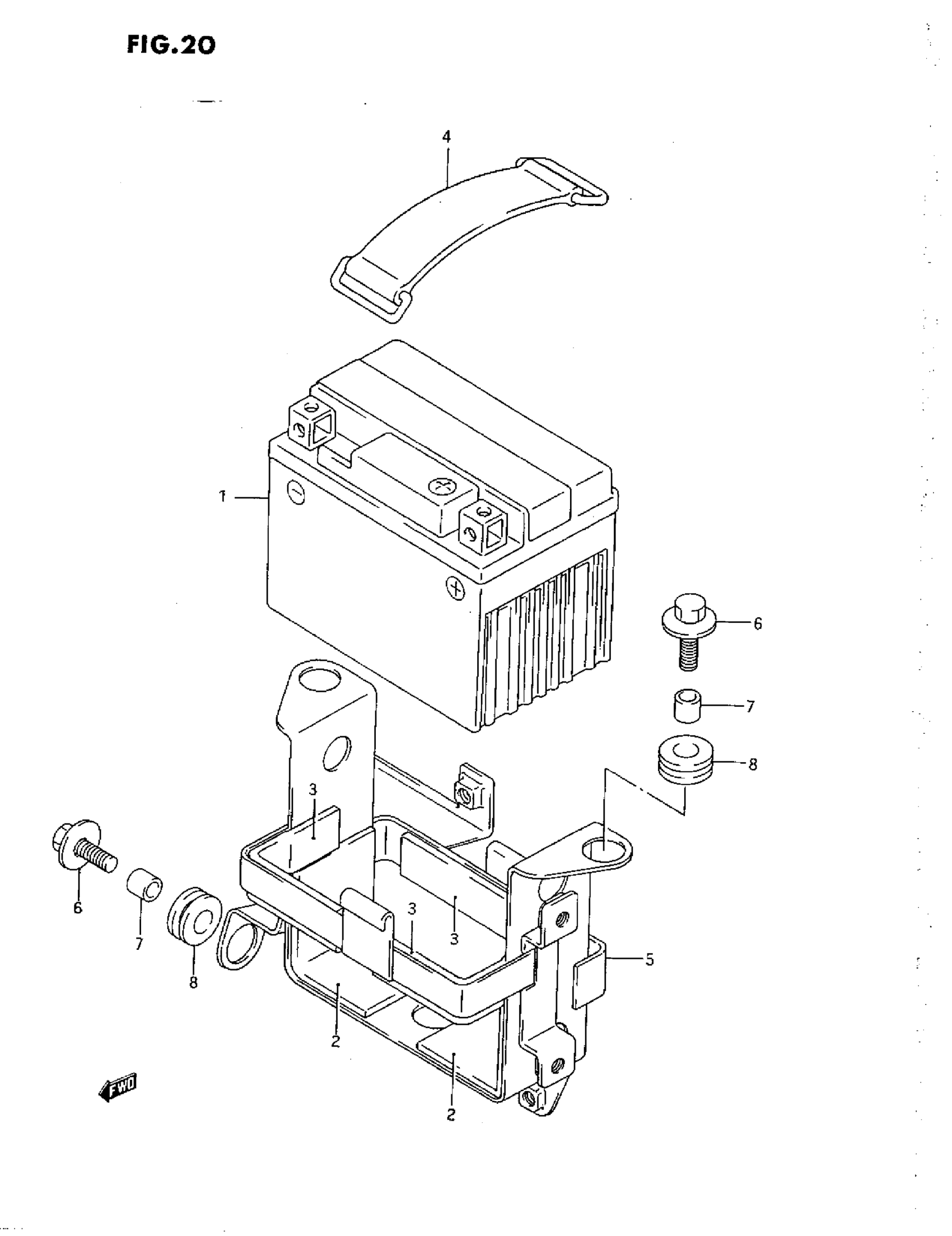

Suzuki DR650S (1993) BATTERY (N/P) Diagram

#

Description

Price

1

BATTERY(Y) YT4L This part replaces 33610-14D00.

33610C14D20J000

Unavailable

2

PROTECTOR | CUT AS REQUIRED PROFILE (85X40)

33651-37000

$4.28

3

CUSHION, REAR FENDER REAR This part replaces 33652-29100.

33651-37000

$4.28

4

BAND, BATTERY

09462-00008

$4.52

5

HOLDER, BATTERY

41540-12E00

Unavailable

6

BOLT (6X20) This part replaces 09116-06056.

09116-06115

$2.03

7

SPACER (6.1X9X7.5)

09180-06038

$1.86

8

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.74
