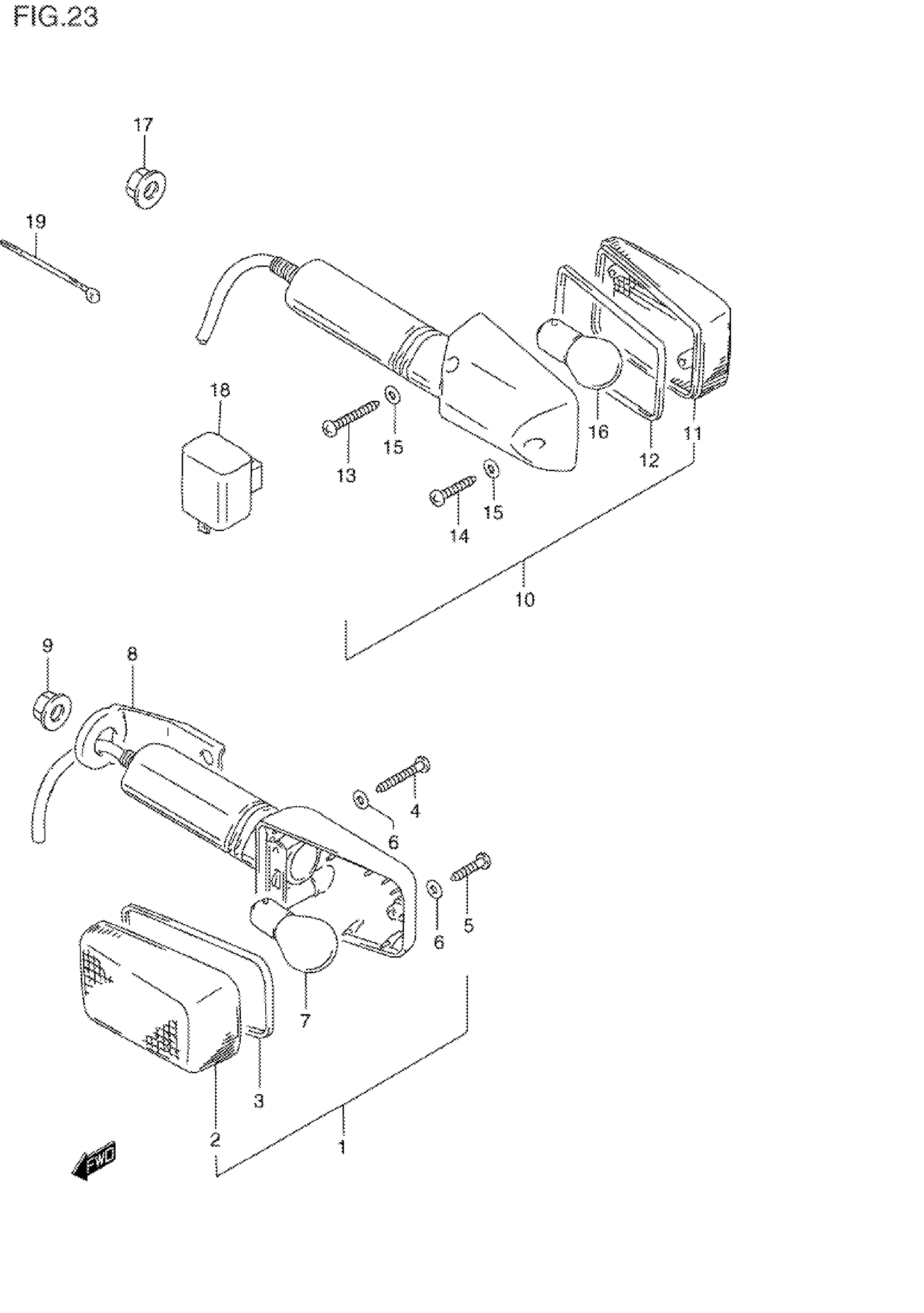

Suzuki DR350SET (1996) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL | MODEL L/M/N/P

35601-01D10

Unavailable

1

LAMP ASSY, FRONT TURNSIGNAL | MODEL R/S/T; Includes Item(s) 2 - 7

35601-29EC0

$123.67

2

LENS

35612-17C20

$10.23

3

GASKET

35613-27A00

$4.46

4

TAPPING SCREW

35623-27A00

$1.87

5

TAPPING SCREW

35725-40511

$1.78

6

GASKET

35627-27A02

$1.78

7

BULB (12V,21W)

09471-12045

$3.06

8

BRACKET, FRONT RH | MODEL L/M/N/P This part replaces 35670-14D11.

35670-14D12

$14.73

8

BRACKET, FRONT RH | MODEL R/S/T

35670-14D12

$14.73

8

BRACKET, FRONT LH | MODEL L/M/N/P This part replaces 35680-14D11.

35680-14D12

$14.73

8

BRACKET, FRONT LH | MODEL R/S/T

35680-14D12

$14.73

9

NUT | MODEL L/M/N/P This part replaces 08316-16105.

08316-1010B

$2.74

9

NUT | MODEL R/S/T This part replaces 08316-10103.

08316-1010B

$2.74

10

LAMP ASSY, REAR TURNSIGNAL | MODEL L/M This part replaces 35603-17C21.

35603-14D10

Unavailable

10

LAMP ASSY, REAR TURNSIGNAL | MODEL N/P

35603-14D10

Unavailable

10

LAMP ASSY,REAR TURNSIGNAL | MODEL R/S This part replaces 35603-29E60.

35603-29E90

$83.07

10

LAMP ASSY,REAR TURNSIGNAL | MODEL T; Includes Item(s) 11 - 16

35603-29E90

$83.07

11

LENS

35652-17C20

$10.12

12

GASKET

35613-27A00

$4.46

13

TAPPING SCREW

35623-27A00

$1.87

14

TAPPING SCREW

35725-40511

$1.78

15

GASKET

35627-27A02

$1.78

16

BULB (12V,21W)

09471-12045

$3.06

17

NUT | MODEL L/M/N/P This part replaces 08316-16105.

08316-1010B

$2.74

17

NUT | MODEL R/S/T This part replaces 08316-10103.

08316-1010B

$2.74

18

RELAY ASSY, TURNSIGNAL | MODEL L/M/N/P/R This part replaces 38610-31310.

38610-31X50

$90.45

18

RELAY ASSY, TURNSIGNAL | MODEL S/T

38610-31X50

$90.45

19

CLAMP

09407-03401

$2.92
