1996 Suzuki DR350SET Starting Motor Diagram

← All diagrams

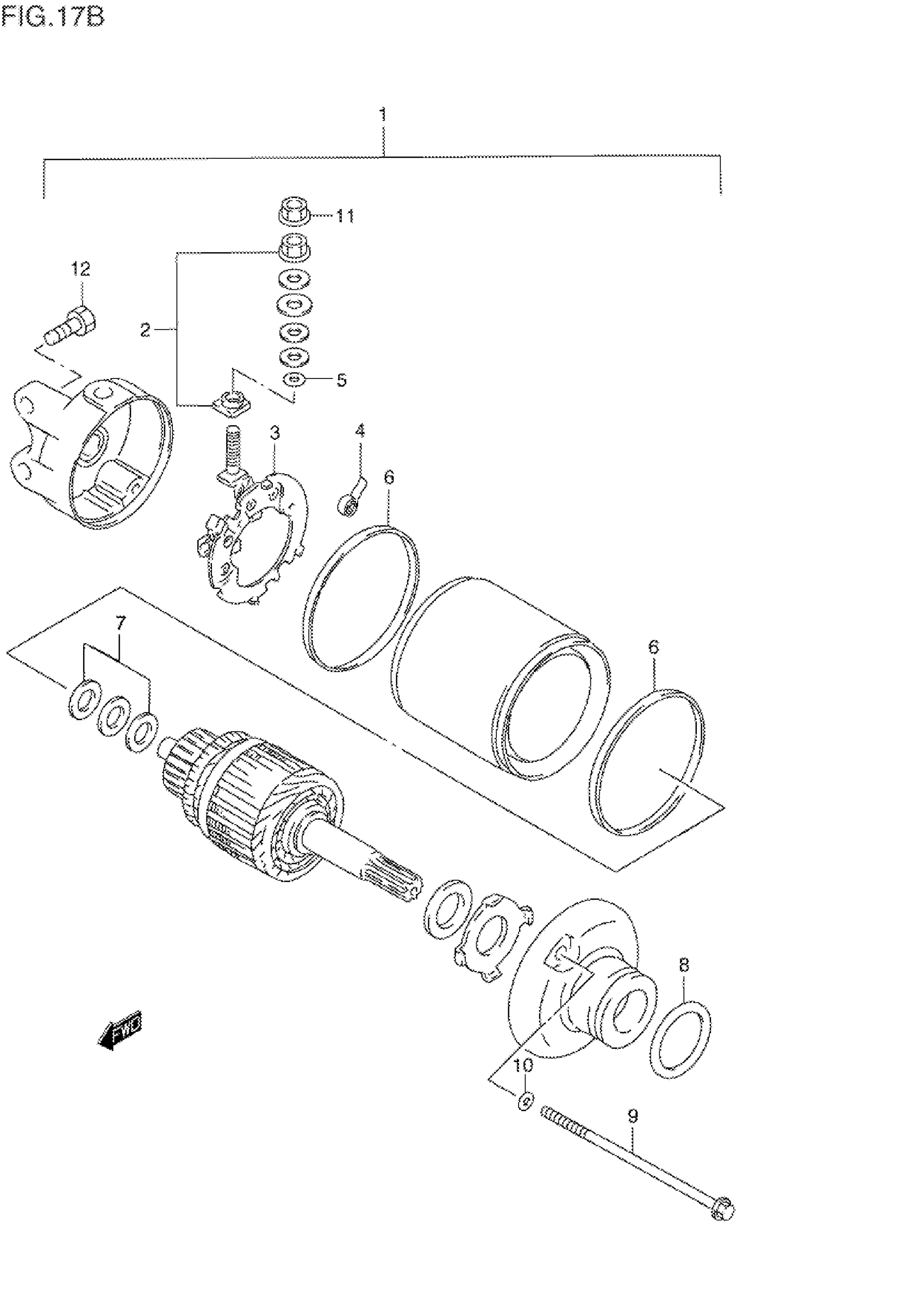

Find the part on the Starting Motor diagram for your 1996 Suzuki DR350SET, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Suzuki DR350SET Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MOTOR ASSY, STARTING | Includes Item(s) 2 - 10

31100-15D10

1
Out of stock

2

BRUSH TERMINAL SET

31130-13E00

1
Out of stock

3

BRUSH HOLDER SET

31132-33E00

1

$75.70

In stock

4

SPRING, BRUSH

31135-31300

2
Out of stock

5

O RING

31143-49040

1
Out of stock

6

O RING

31156-13E00

2
Out of stock

7

WASHER SET

31170-19B10

1
Out of stock

8

O RING

31264-13E00

2
Out of stock

9

SET BOLT ASSY

31280-15D10

2
Out of stock

10

.O-RING (D:3,ID:24.5)

09280-24003

1
Out of stock

11

NUT This part replaces 08361-35068.

08361-3506A

1
Out of stock

12

BOLT, FRONT BRG HOUSING This part replaces 07130-06203.

07130-0620B

2
Out of stock
