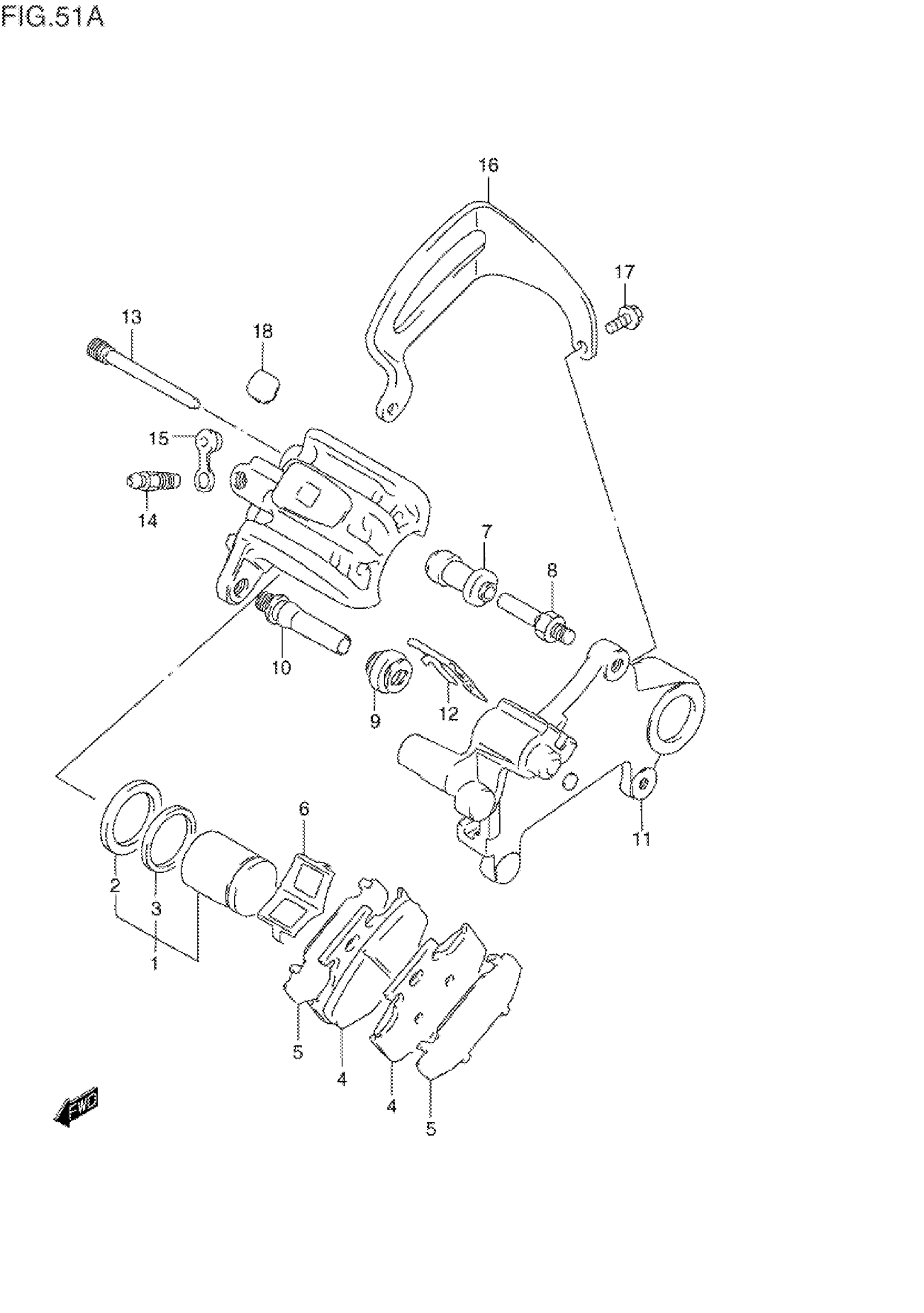

Suzuki DR350SET (1996) REAR CALIPER (MODEL N/P) Diagram

#

Description
Price

CALIPER ASSY, REAR | Includes Item(s) 1 - 15

69100-15D10

Unavailable

1

PISTON SET

69100-03810

$50.52

2

SEAL SET, PISTON This part replaces 59107-17C00.

69100-13810

$9.04

3

SEAL, DUST

59108-17C00

Unavailable

4

PAD SET | ->69100-15810 This part replaces 69140-15D00.

69100-15810

$72.28

5

SHIM

69132-28C00

$10.68

6

SPRING

59315-27C10

$13.20

7

BOOT

59386-13A00

$7.28

8

PIN

59382-14500

$8.43

9

BOOT

59303-14500

$5.06

10

PIN

59305-27C00

$26.52

11

BRACKET

69351-05D00

Unavailable

12

RETAINER

69113-43D00

$9.97

13

PIN

59345-14600

$18.33

14

BLEEDER

59121-01A00

$7.99

15

CAP

59122-01A00

$3.97

16

GUARD, CALIPER

69725-27C20

Unavailable

17

BOLT

01547-06107

$1.67

18

COVER, REAR CALIPER BODY

69171-14D00

Unavailable

19

REFER TO FIG.51B(I- 7) FOR

SPECIAL NOTE

Unavailable
