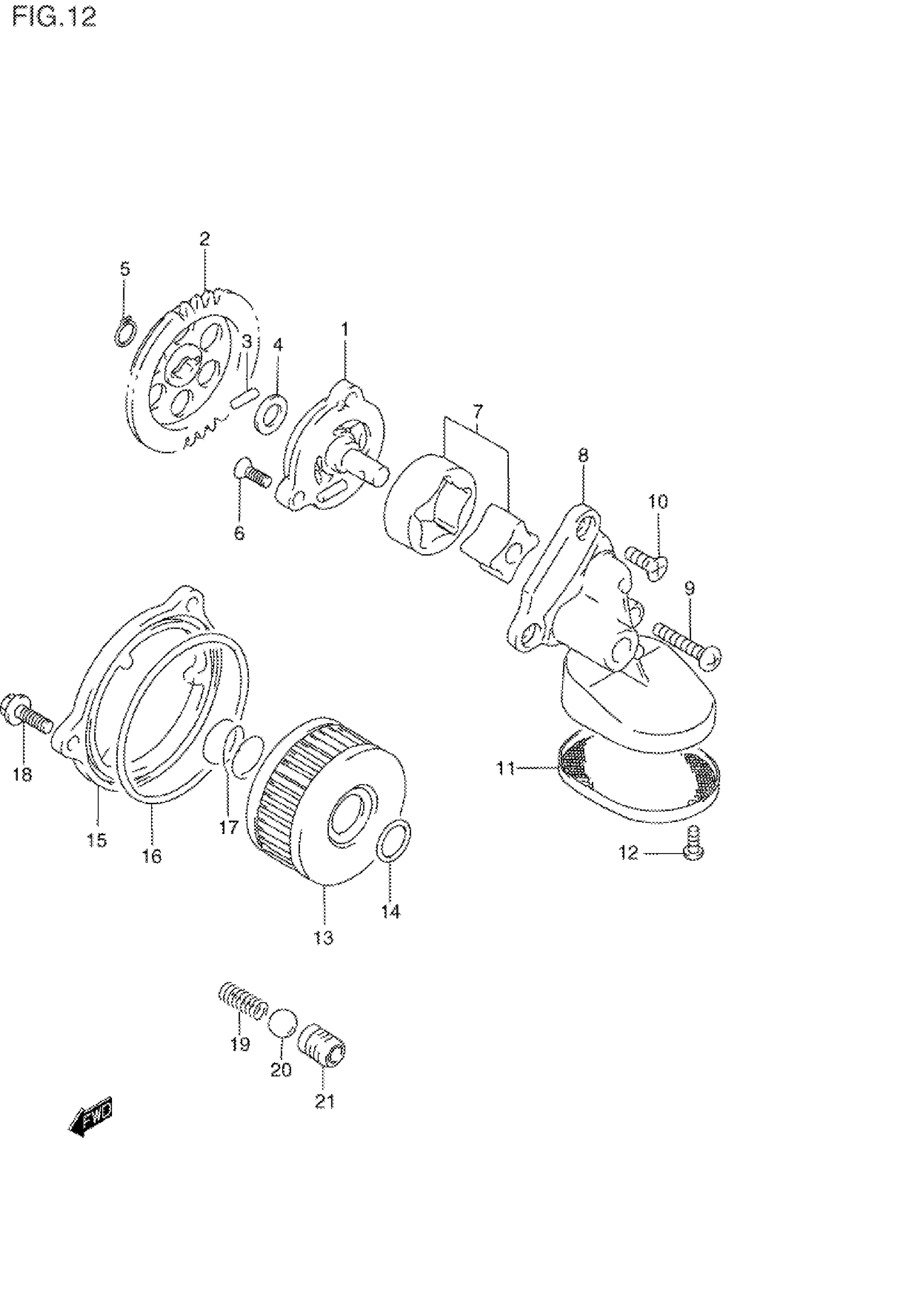

Suzuki DR350SET (1996) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY, ENGINE OIL NO.1

16400-14D01

$212.72

2

GEAR, DRIVEN (NT:35) | MODEL L/M This part replaces 16331-14D00.

16331-14D02

$45.54

2

GEAR, DRIVEN (NT:35) | MODEL N/P/R/S/T This part replaces 16331-14D01.

16331-14D02

$45.54

3

PIN

09261-04009

$1.50

4

WASHER

08221-10185

$2.35

5

CIRCLIP This part replaces 08331-31106.

08331-31109

$1.77

6

SCREW | MODEL L/M/N/P/R This part replaces 02122-06166.

02122-0616A

$1.43

6

SCREW | MODEL S/T This part replaces 02122-06163.

02122-0616A

$1.43

7

ROTOR SET, OIL PUMP

16410-14D00

$60.93

8

COVER, OIL PUMP NO.2

16431-14D01

Unavailable

9

SCREW, SEAT SUPPORT BRK | MODEL L/M/N/P/R This part replaces 02112-06306.

02112-0630A

$1.80

9

SCREW, SEAT SUPPORT BRK | MODEL S/T This part replaces 02112-06303.

02112-0630A

$1.80

10

SCREW | MODEL L/M/N/P/R This part replaces 02122-06166.

02122-0616A

$1.43

10

SCREW | MODEL S/T This part replaces 02122-06163.

02122-0616A

$1.43

11

STRAINER, ENGINE OIL

16520-14D00

$13.35

12

SCREW, THROTTLE | MODEL L/M/N/P/R This part replaces 02112-05106.

02112-0510A

$1.43

12

SCREW, THROTTLE | MODEL S/T This part replaces 02112-05103.

02112-0510A

$1.43

13

FILTER, ENGINE OIL

16510-38240

$5.39

14

O RING (D:2.4,ID:15.8) | MODEL L/M/N/P

09280-16005

$2.24

14

O-RING (D:2.4,ID:15.8) | MODEL R/S/T

09280-15007

$1.71

15

CAP,OIL FILTER

16512-14D00

$40.83

16

.O RING (D:2.4,ID:73)

09280-72001

$4.47

17

SPRING | MODEL L/M/N/P

09440-21004

$2.99

17

SPRING | MODEL R/S/T

09440-21006

$2.01

18

BOLT | MODEL L/M/N/P/R

01547-06207

$2.01

18

..BOLT | MODEL S/T This part replaces 01547-06203.

01547-0620B

$2.43

19

SPRING | MODEL P/R/S/T

09440-07073

$4.12

20

BALL | MODEL P/R/S/T

06111-12004

$1.95

21

SEAT, OIL CHECK VALVE | MODEL P/R/S/T

16442-14D00

$40.02
