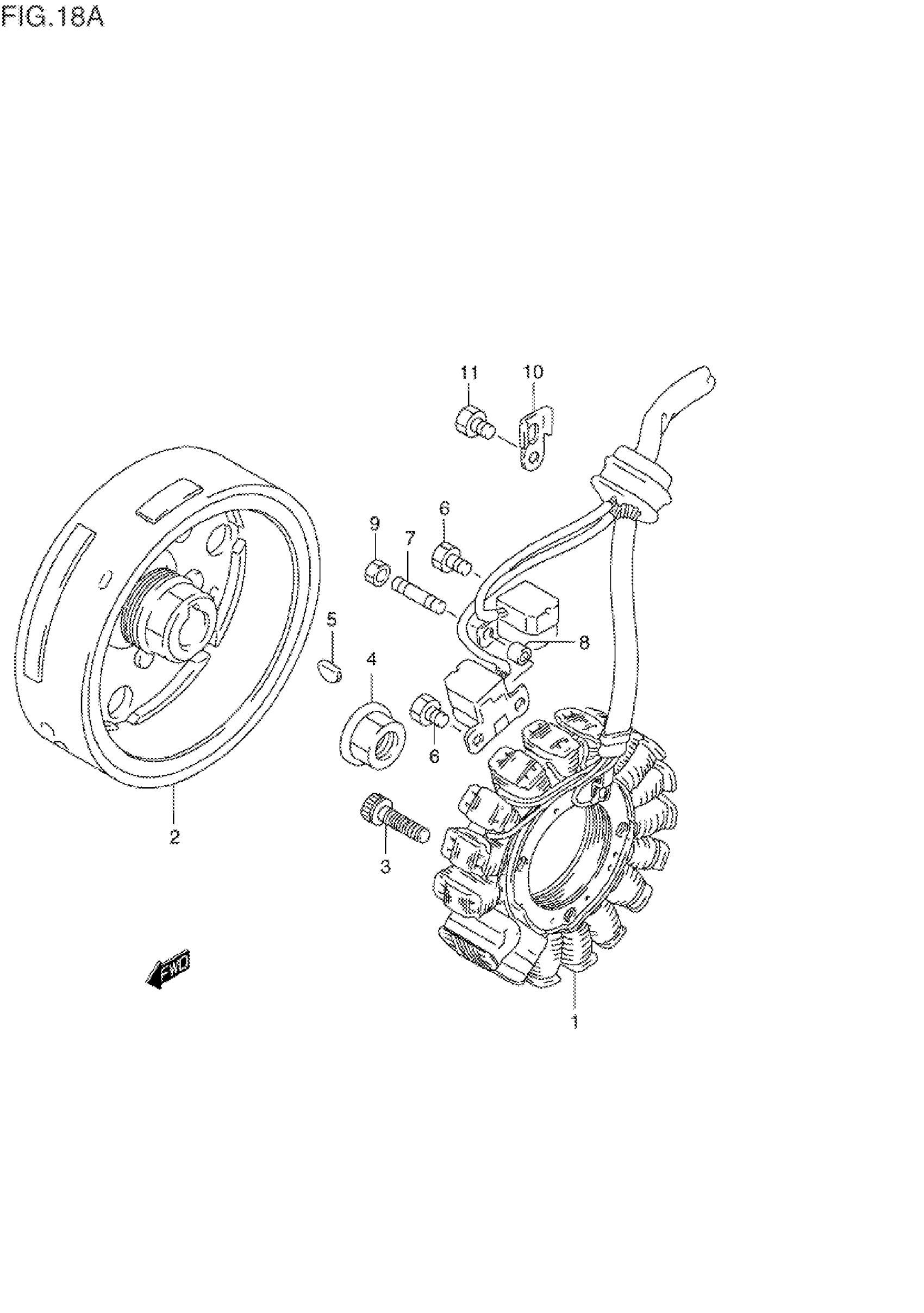

Suzuki DR350SET (1996) MAGNETO (MODEL P) Diagram

#

Description
Price

1

STATOR ASSY

32101-14D40

Unavailable

2

ROTOR

32102-14D30

Unavailable

3

BOLT This part replaces 07110-06257.

07130-06257

$2.90

4

NUT

09159-14015

$5.17

5

KEY

09420-04008

$3.08

6

BOLT

09100-05019

$2.10

7

STUD BOLT

09108-05014

Unavailable

8

SPACER This part replaces 09180-05009.

09180-05053

Unavailable

9

NUT This part replaces 08310-11057.

08310-00057

$1.83

10

CLAMP, MAGNETO LEAD

31497-45000

$2.17

11

BOLT

09100-05019

$2.10

12

REFER TO FIG.18B(D-12) FOR

SPECIAL NOTE

Unavailable
