1996 Suzuki DR350SET Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1996 Suzuki DR350SET, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

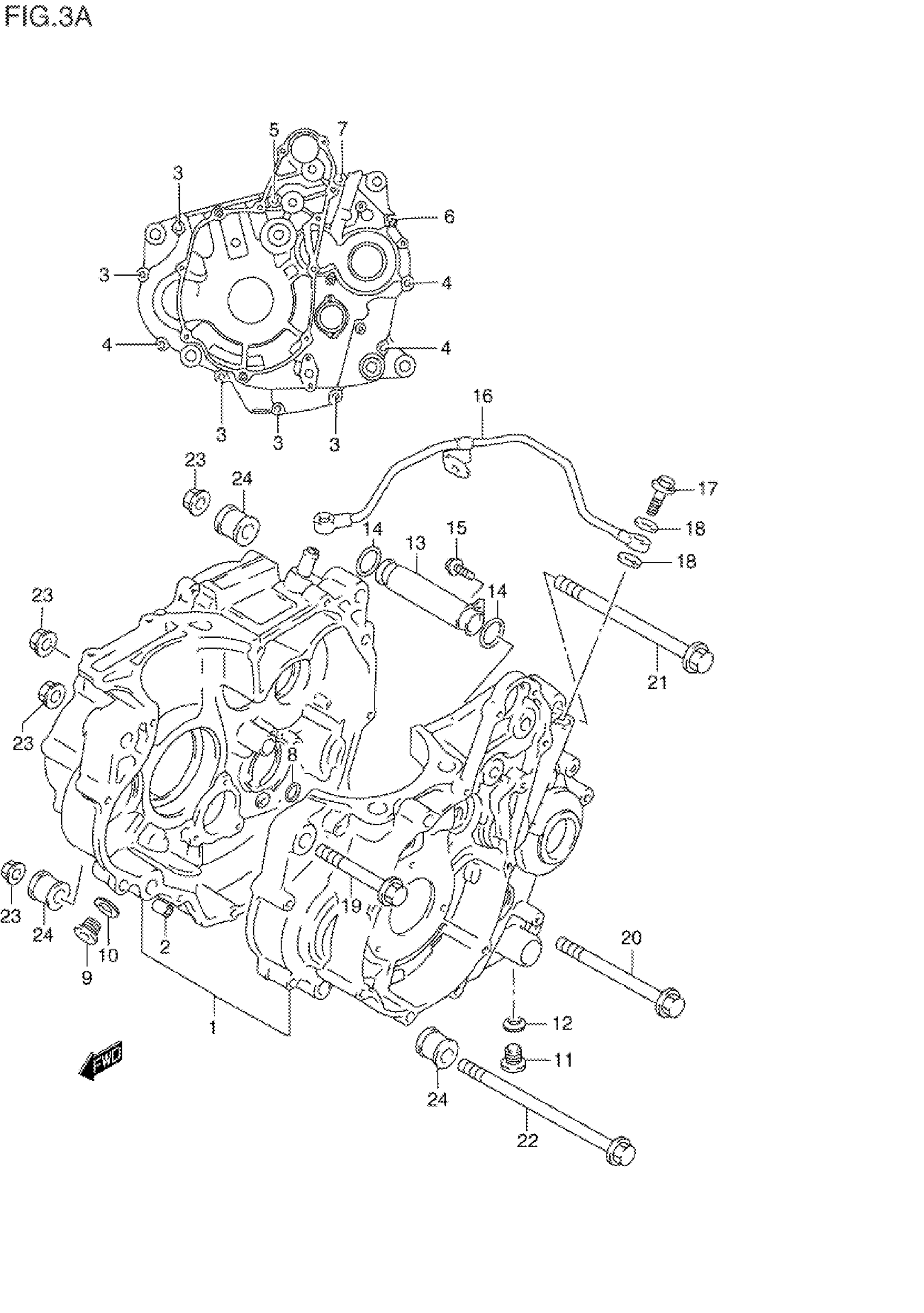

1996 Suzuki DR350SET Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE SET | MODEL R This part replaces 11301-15812.

11301-15815

1
Out of stock

1

CRANKCASE SET | MODEL S/T; Includes Item(s) 2 - 8 This part replaces 11301-15814.

11301-15815

1
Out of stock

2

PIN

04211-09149

2
Out of stock

3

BOLT This part replaces 01547-06453.

01547-0645B

5
Out of stock

4

BOLT This part replaces 01547-06503.

01547-0650B

3
Out of stock

5

BOLT This part replaces 01547-06653.

01547-0665B

1
Out of stock

6

BOLT

01547-06707

1
Out of stock

7

BOLT This part replaces 01547-06903.

01547-0690B

1
Out of stock

8

O RING (D:1.9,ID:12.6) | MODEL R This part replaces 09280-13007.

09280-12009

1
Out of stock

8

O RING | MODEL S/T

09280-12009

1
Out of stock

9

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

1
Out of stock

10

GASKET (14x19.2x2)

09168-14002

1
Out of stock

11

BOLT This part replaces 01500-12203.

01500-1220B

1
Out of stock

12

GASKET

09168-12002

1
Out of stock

13

PIPE, MISSION OIL INNER

11450-14D01

1
Out of stock

14

O-RING (D:2.4,ID:15.8)

09280-15007

2
Out of stock

15

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

1
Out of stock

16

PIPE, MISSION OIL OUTER This part replaces 11280-15D01.

11280-15D10

1
Out of stock

17

BOLT (8x25)

09360-08011

2
Out of stock

18

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

4
Out of stock

19

BOLT,10X85 This part replaces 09103-10230.

09103-10083

1
Out of stock

20

BOLT (10X100)

09103-10242

1
Out of stock

21

BOLT (10X115)

09103-10063

1
Out of stock

22

BOLT (10X143)

09103-10241

1
Out of stock

23

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

4
Out of stock

24

SPACER (L:19.85)

11611-14D00

3
Out of stock
