1996 Suzuki DR350SET Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1996 Suzuki DR350SET, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

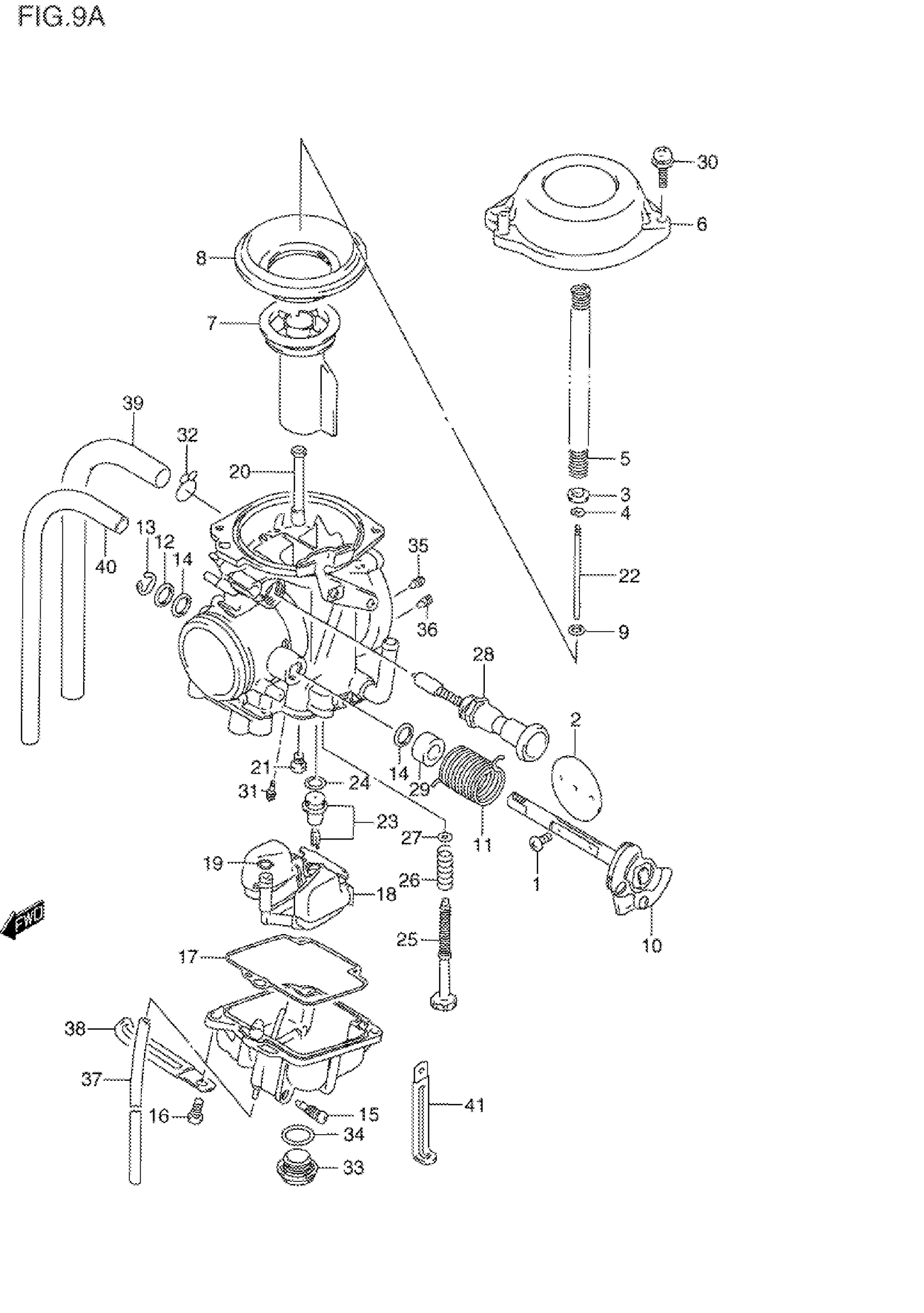

1996 Suzuki DR350SET Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

CARBURETOR ASSY | MODEL N

13200-14E20

1
Out of stock

CARBURETOR ASSY | MODEL N,CALIFORNIA ONLY

13200-14E30

1
Out of stock

CARBURETOR ASSY | MODEL P

13200-14E90

1
Out of stock

CARBURETOR ASSY | MODEL PCALIFORNIA ONLY; Includes Item(s) 1 - 40

13200-14EC0

1
Out of stock

1

SCREW, THROTTLE VALVE This part replaces 13604-42A00.

13604-44080

2
Out of stock

2

VALVE, THROTTLE (115)

13551-45B00

1
Out of stock

3

RING

13382-42A00

1

$4.46

In stock

4

E RING

13394-01D00

1
Out of stock

5

SPRING

13417-44B00

1
Out of stock

6

COVER, DIAPHRAGM

13502-01D00

1
Out of stock

7

VALVE, PISTON

13551-44B10

1
Out of stock

8

DIAPHRAGM This part replaces 13507-44B00.

13507-44B01

1
Out of stock

9

RING

13387-47010

1

$7.41

In stock

10

SHAFT ASSY

13550-14E00

1
Out of stock

11

SPRING

13268-31D00

1
Out of stock

12

WASHER

13557-47070

1
Out of stock

13

E RING

13617-44080

1
Out of stock

14

SEAL

13556-44B00

2
Out of stock

15

1

$4.97

In stock

16

SCREW This part replaces 13602-05128.

02112-05127

2
Out of stock

17

GASKET, FLOAT CHAMBER

13258-44B00

1
Out of stock

18

FLOAT ASSY | MODEL N

13240-14D20

1
Out of stock

18

FLOAT ASSY | MODEL P

13240-17E10

1
Out of stock

19

.O RING

13374-46710

1
Out of stock

20

JET, NEEDLE (0-6M) This part replaces 09494-00691.

09494-00883

1
Out of stock

21

JET, MAIN (135) | MODEL N

09491-27009

1
Out of stock

21

JET, MAIN (127.5) | MODEL P

09491-25011

1
Out of stock

22

NEEDLE, JET (5CD16-1)

13383-14D20

1
Out of stock

23

VALVE ASSY,NEED This part replaces 13370-44B00.

13370-02D01

1
Out of stock

24

1

$5.97

In stock

25

ADJUSTER

13267-14D10

1
Out of stock

26

SPRING

13375-14D10

1
Out of stock

27

WASHER

13427-38300

1

$2.17

In stock

28

PLUNGER ASSY This part replaces 13411-14E00.

13411-14E10

1
Out of stock

29

RING

13574-28A00

1
Out of stock

30

SCREW This part replaces 13602-34390.

02112-7516A

2
Out of stock

31

JET, PILOT (37.5)

09492-35010

1

$9.21

In stock

32

CLIP This part replaces 13671-48B10.

09401-10401

1
Out of stock

33

CAP, DRAIN

13247-32210

1
Out of stock

34

O RING

13249-41310

1
Out of stock

35

JET, AIR (1.3)

09493-26004

1
Out of stock

36

JET, AIR (0.6)

09493-60004

1
Out of stock

37

.HOSE (3X5X600) | L:300->150 This part replaces 13683-36A00.

09352-30504-600

1
Out of stock

38

CLAMP(L:80) This part replaces 13671-05A20.

09404-06036

1
Out of stock

39

HOSE(7X11X600) | L:300->200 This part replaces 13683-43410.

09352-70119-600

1
Out of stock

40

HOSE,5X10X600 | MODEL N This part replaces 13687-32C00.

44421-13ER0

1
Out of stock

40

HOSE(4.5X8.5X60 | MODEL P This part replaces 13684-36510.

09355-45001-600

1
Out of stock

41

CLAMP This part replaces 09404-06401.

09404-06039

1
Out of stock

42

REFER TO FIG.9B(C-6) FOR

SPECIAL NOTE

—
Out of stock
