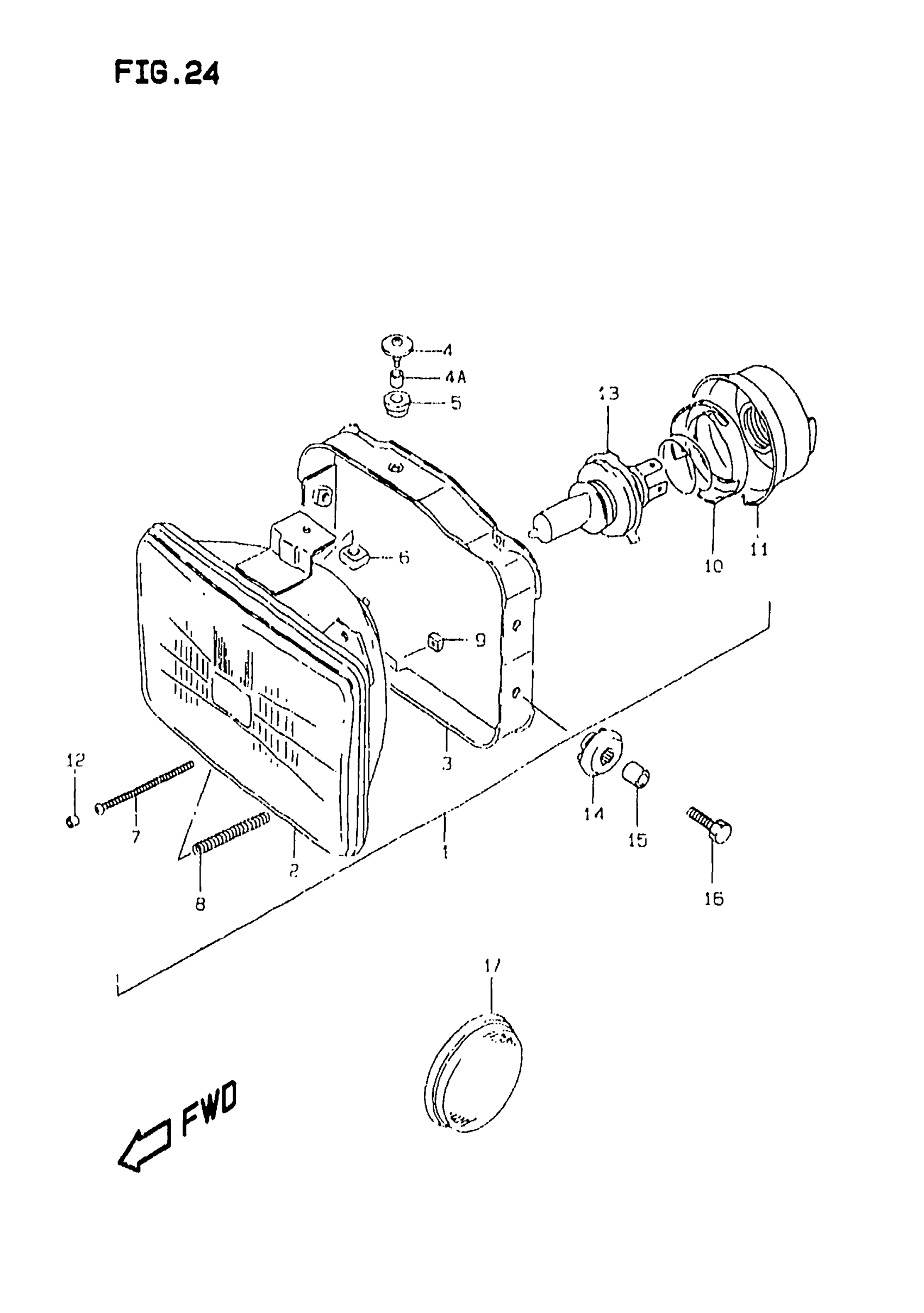

Suzuki DR350SE (1999) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 11 This part replaces 35100-14A31-999.

35100-14A33-999

$237.25

2

LAMP UNIT

35121-14A31

Unavailable

3

RING, MOUNTING

35141-14A00

$42.37

4

.SCREW MOUNTING

35136-38A00

$4.53

4A

SPACER

35133-14A00

Unavailable

5

CUSHION

35139-45230

$2.25

6

NUT

35135-45900

$3.67

7

SCREW, ADJUSTING

35151-45900

$3.44

8

SPRING

35154-49200

$6.22

9

NUT

35135-45600

$4.12

10

HULCER, BULB

35136-01A00

Unavailable

11

.COVER SOCKET

35173-01440

$19.60

12

COVER

35158-43400

$2.17

13

BULB (12V,60/55W,H4)

09471-12060

$22.69

14

CUSHION

09320-09018

$2.28

15

SPACER (6.3x9.1x11.5)

09180-06138

$2.58

16

BOLT (6X20)

09116-06167

$2.19

17

REFLECTOR, FRONT SIDE

35950-14A00

$15.95
