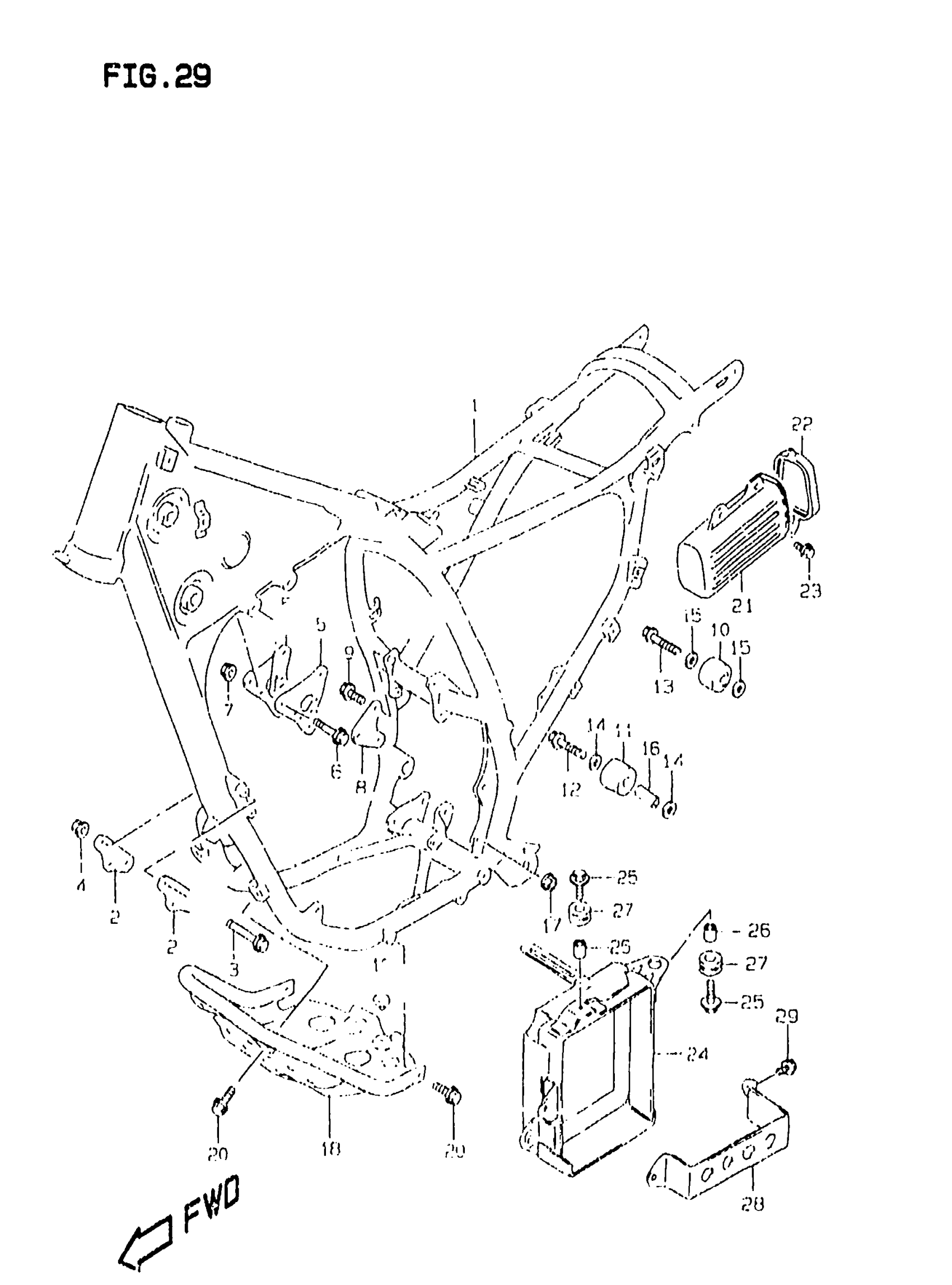

Suzuki DR350SE (1999) FRAME Diagram

#

Description
Price

1

FRAME (PURPLE) | MODEL V/W

41100-14E30-Z16

Unavailable

1

FRAME (CHARCOAL) | MODEL X

41100-14E30-24K

Unavailable

2

PLATE, FRONT

41911-14D01

Unavailable

3

BOLT

09103-08294

Unavailable

4

NUT

09159-08034

$1.62

5

PLATE, UPPER

41991-14D01

Unavailable

6

BOLT (8X70) This part replaces 09103-08293.

09103-08569

$5.32

7

NUT

09159-08034

$1.62

8

PLATE, LOWER

41971-14D01

Unavailable

9

BOLT (8X16) This part replaces 09103-08283.

09103-08570

$2.32

10

POLLER, CHAIN LOWER

43910-27C11

$72.98

11

ROLLER, CHAIN UPPER

43911-35B00

$18.81

12

BOLT, UPPER

09103-08178

$4.29

13

BOLT, INNER This part replaces 09103-08068.

09103-08043

$2.87

14

WASHER, UPPER

08211-08201

$2.06

15

WASHER, LOWER

09181-08111

$1.95

16

SPACER This part replaces 09180-08119.

09180-08156

$6.14

17

NUT This part replaces 08313-20083.

08313-2008B

$3.13

18

PROTECTOR, ENGINE (SILVER)

42510-14D10-13L

Unavailable

19

CUSHION

09321-10026

Unavailable

20

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.31

21

HOLDER, TOOL

47431-14D00

$53.13

22

CAP,TOOL HOLDER This part replaces 47432-14D00.

47432-14D01

$14.48

23

BOLT, CENTER This part replaces 09116-06144.

09116-06165

$3.30

24

HOLDER, BATTERY

41540-15D00

Unavailable

25

BOLT (6X20)

09116-06010

$2.10

26

SPACER (6.5X10X9)

09180-06285

$2.63

27

CUSHION

09320-10501

$4.85

28

BAND, BATTERY HOLDER

41542-15D00

Unavailable

29

BOLT (6x10)

09128-06058

$2.17
