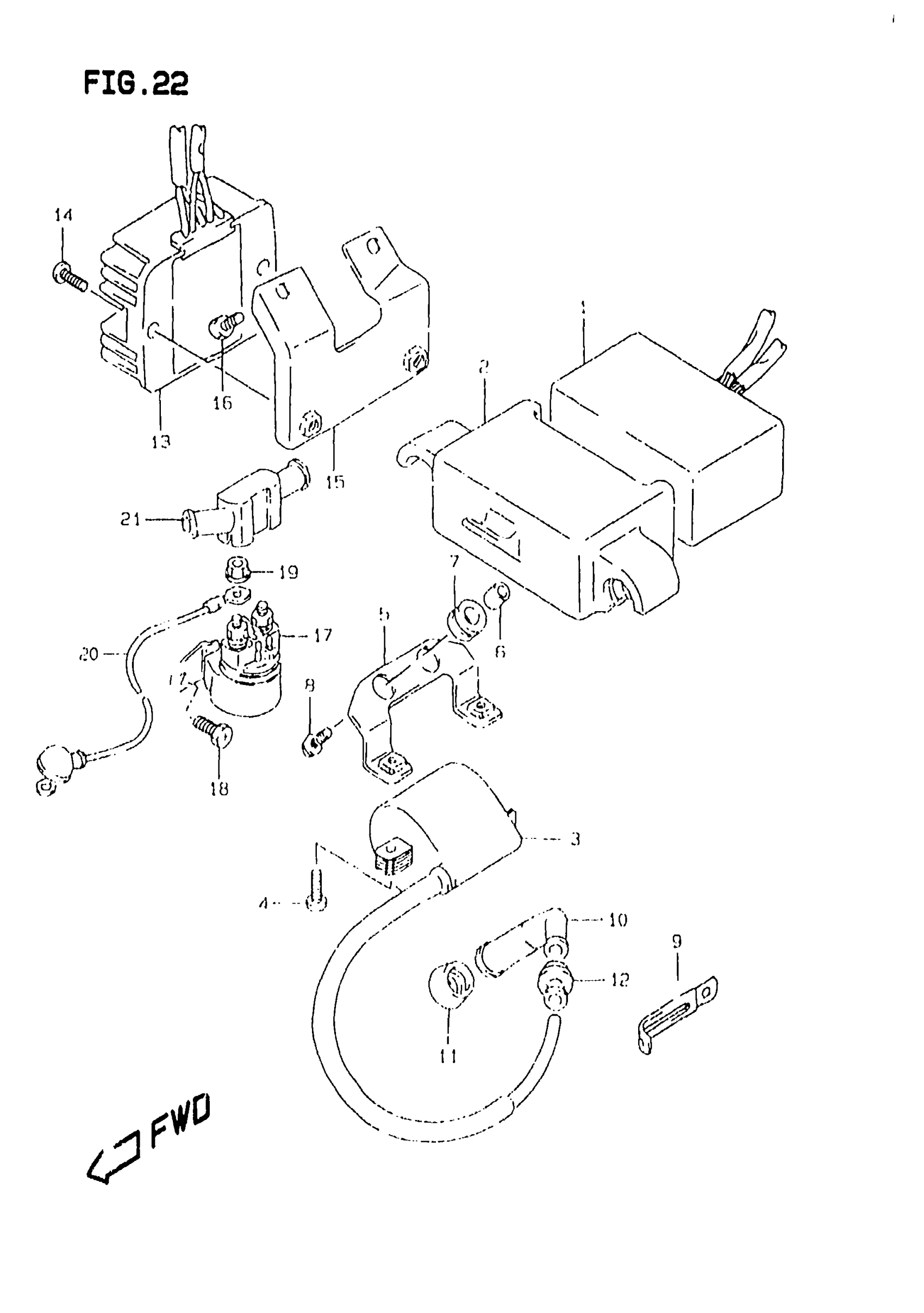

Suzuki DR350SE (1999) ELECTRICAL Diagram

#

Description
Price

1

CDI UNIT

32900-14D50

Unavailable

2

CUSHION

32980-14D00

Unavailable

3

COIL ASSY,IGNIT This part replaces 33410-14D00.

33410-14D01

$131.13

4

SCREW This part replaces 02112-06203.

02112-0620A

$1.45

5

BRACKET, IGNITION COIL

33416-14D00

Unavailable

6

SPACER (6.5X9X6.7)

09180-06258

$1.82

7

CUSHION

09320-09036

$4.70

8

BOLT This part replaces 01560-06163.

01560-0616A

Unavailable

9

CLAMP (L:60) | MODEL V/W

09404-06429

$1.82

9

CLAMP | MODEL X This part replaces 09404-06432.

09404-06039

$1.73

10

CAP, SPARK PLUG

33510-43010

$22.88

11

SEAL, SPARK PLUG

33541-47D00

$7.16

12

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$3.97

13

RECTIFIER

32800-14D11

$331.60

14

SCREW This part replaces 02112-06163.

02112-0616A

$1.43

15

BRACKET, RECTIFIER

32831-14D03

Unavailable

16

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

17

RELAY ASSY, STARTING MOTOR

31800-49100

$89.07

18

BOLT (6x10)

09128-06044

$1.38

19

NUT This part replaces 08361-35068.

08361-3506A

$1.81

20

WIRE, STARTING LEAD

33850-00A01

Unavailable

21

CAP, STARTER RELAY TERMINAL

31861-24500

Unavailable
