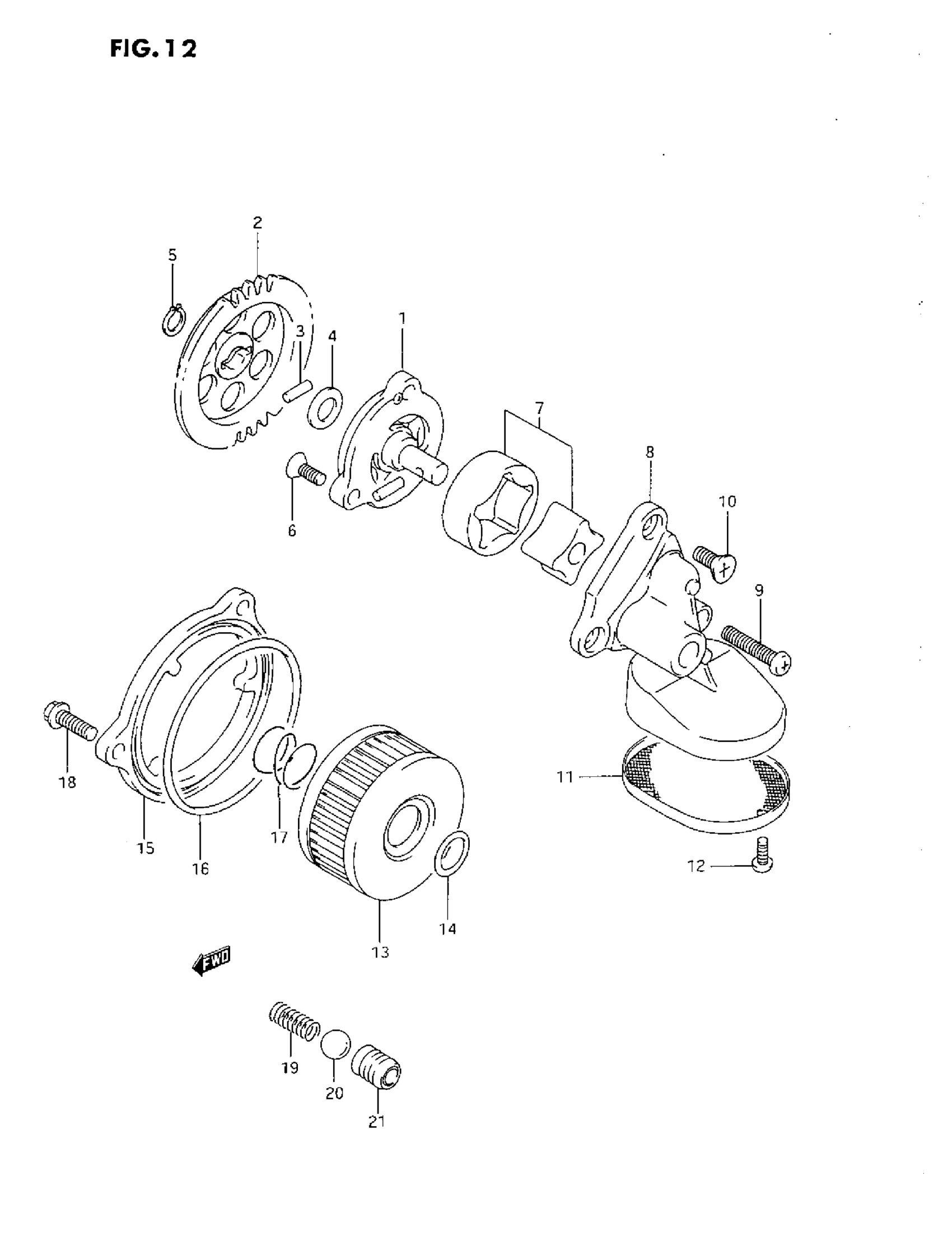

Suzuki DR350S (1993) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY, ENGINE OIL NO.1

16400-14D01

$212.72

2

GEAR, DRIVEN (NT:35) | MODEL L/M This part replaces 16331-14D00.

16331-14D02

$45.54

2

GEAR, DRIVEN (NT:35) | MODEL N/P/R This part replaces 16331-14D01.

16331-14D02

$45.54

3

PIN

09261-04009

$1.50

4

WASHER

08221-10185

$2.35

5

CIRCLIP This part replaces 08331-31106.

08331-31109

$1.77

6

SCREW This part replaces 02122-06166.

02122-0616A

$1.43

7

ROTOR SET, OIL PUMP

16410-14D00

$60.93

8

COVER, OIL PUMP NO.2

16431-14D01

Unavailable

9

SCREW, SEAT SUPPORT BRK This part replaces 02112-06306.

02112-0630A

$1.80

10

SCREW This part replaces 02122-06166.

02122-0616A

$1.43

11

STRAINER, ENGINE OIL

16520-14D00

$13.35

12

SCREW, THROTTLE This part replaces 02112-05106.

02112-0510A

$1.43

13

FILTER, ENGINE OIL

16510-38240

$5.39

14

O-RING (D:2.4, ID:15.8) | MODEL L/M/N/P

09280-16005

$2.24

14

O-RING (D:2.4,ID:15.8) | MODEL R

09280-15007

$1.71

15

CAP,OIL FILTER

16512-14D00

$40.83

16

.O RING (D:2.4,ID:73)

09280-72001

$4.47

17

SPRING | MODEL L/M/N/P

09440-21004

$2.99

17

SPRING | MODEL R

09440-21006

$2.01

18

BOLT

01547-06207

$2.01

19

SPRING | MODEL P/R

09440-07073

$4.12

20

BALL | MODEL P/R

06111-12004

$1.95

21

SEAT, OIL CHECK VALVE | MODEL P/R

16442-14D00

$40.02
