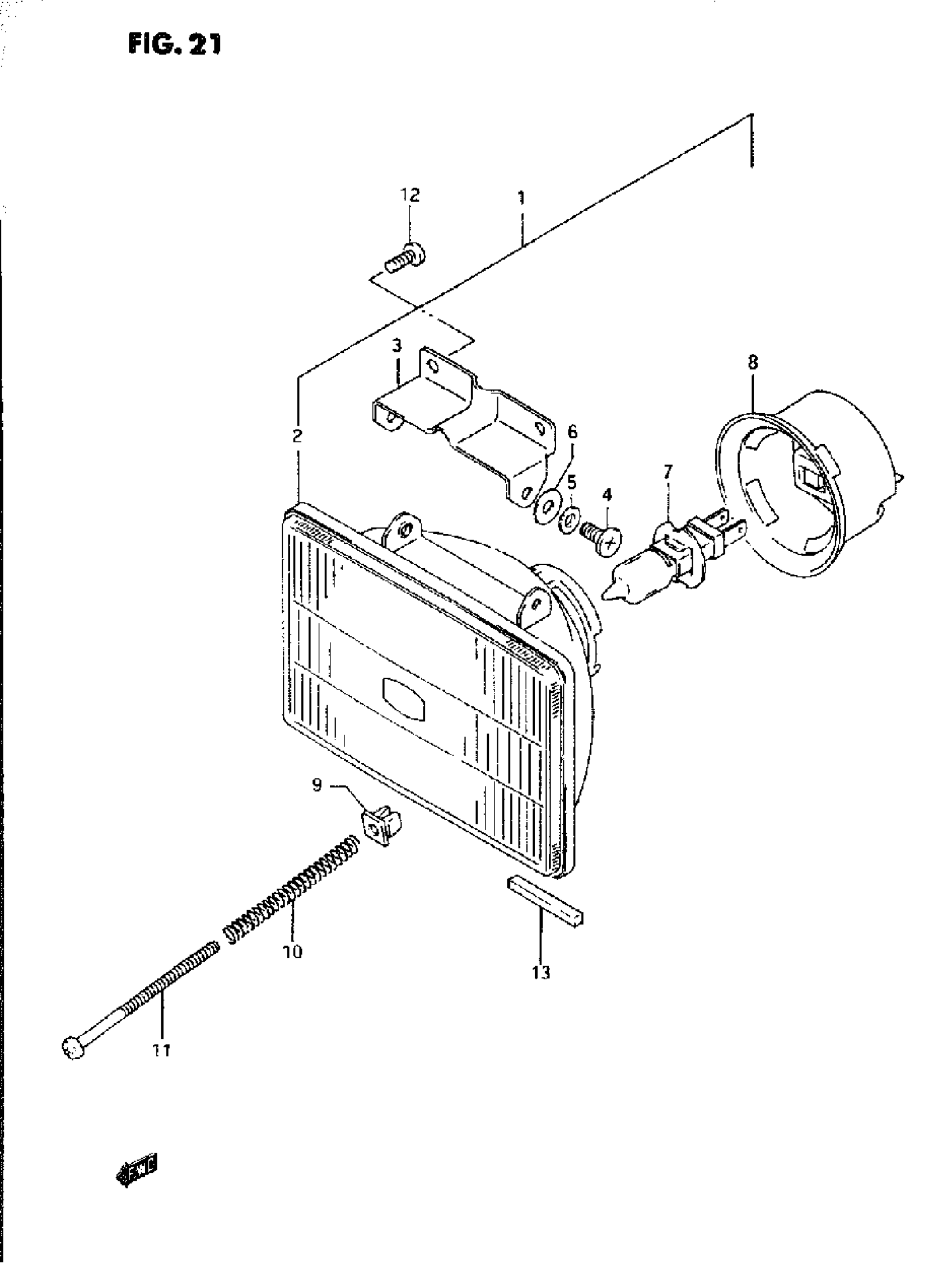

Suzuki DR350 (1995) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | MODEL L/M

35100-05D00

Unavailable

1

HEADLAMP ASSY | MODEL N/P/R/S/T

35100-05D10

Unavailable

2

UNIT, LAMP This part replaces 35121-05D00.

35121-05D01

Unavailable

3

BRACKET, LAMP

35230-05D00

$11.93

4

SCREW

35136-16700

$5.10

5

LOCK WASHER | MODEL L/M/N/P/R This part replaces 08321-21057.

08321-0105A

$1.83

5

LOCK WASHER | MODEL S/T This part replaces 08321-01057.

08321-0105A

$1.83

6

WASHER

35138-05D00

Unavailable

7

-BULB (12V, 55W)

09471-12160

$33.85

8

COVER, SOCKET

35173-05D00

Unavailable

9

.NUT ADJUSTING | MODEL L/M/N/P/R This part replaces 35152-05C00.

35135-12E20

$4.20

9

.NUT ADJUSTING | MODEL S/T

35135-12E20

$4.20

10

SPRING

35154-30B00

Unavailable

11

SCREW, LENS (4X45) | MODEL L/M/N/P/R This part replaces 35151-05D00.

09125-04501

$2.90

11

SCREW | MODEL S/T

09125-04501

$2.90

12

SCREW | MODEL L/WN/P/R This part replaces 03511-04106.

03511-0410A

$1.90

12

SCREW | MODEL S/T This part replaces 03511-04103.

03511-0410A

$1.90

13

PROTECTOR (50X50X5) | MODEL N/P This part replaces 33652-14D00.

33652-20C00

$2.80

13

CUSHION | MODEL R/S/T

33652-20C00

$2.80
