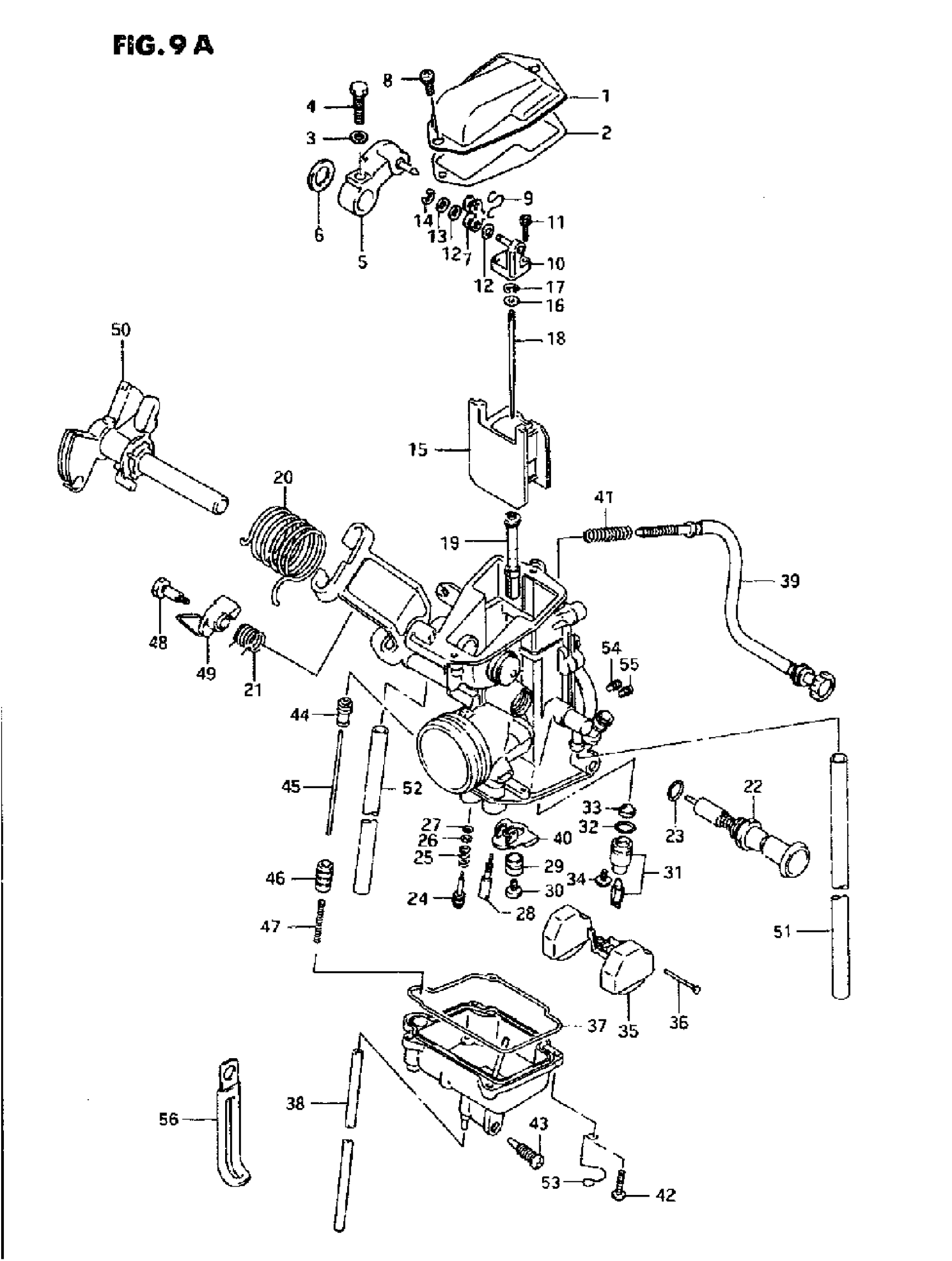

Suzuki DR350 (1995) CARBURETOR (MODEL R/S/T) Diagram

#

Description
Price

1

CARBURETOR ASSY

13200-14D03

Unavailable

1

CAP, TOP

13261-27A00

Unavailable

2

GASKET

13266-27A00

$7.40

3

LOCK WASHER This part replaces 08321-01053.

08321-0105A

$1.83

4

BOLT This part replaces 01500-05163.

01500-0516B

$2.35

5

LEVER SET, THROTTLE This part replaces 13541-14A00.

13541-13E00

Unavailable

6

WASHER This part replaces 13574-38200.

13575-38200

Unavailable

7

PLATE

13447-14A00

Unavailable

8

SCREW This part replaces 02112-34103.

02112-3410A

$2.04

9

SPRING

13446-14A00

Unavailable

10

CONNECTOR

13398-27A02

Unavailable

11

SCREW This part replaces 02112-03123.

02112-0312B

Unavailable

12

WASHER

13445-14A00

$3.72

13

WASHER (4.5X8X0.5) | MODEL R/S This part replaces 13449-14A00.

09160-04024

Unavailable

13

WASHER (4.5X8X0.5) | MODEL I This part replaces 09160-04021.

09160-04024

Unavailable

14

E RING | MODEL R/S This part replaces 13298-49000.

13415-38300

$1.86

14

E RING | MODEL I

13415-38300

$1.86

15

VALVE, PISTON (CA:1.5)

13551-14D00

Unavailable

16

WASHER

13382-47010

$3.35

17

E RING

13394-10010

$6.15

18

NEEDLE, JET (5FP96-3)

13383-14D00

Unavailable

19

JET. NEEDLE (P-8)

09494-00681

Unavailable

20

SPRING

13573-42A20

Unavailable

21

SPRING

13494-14D00

$9.97

22

PLUNGER ASSY

13411-14D00

Unavailable

23

.O RING

13374-46710

$4.09

24

SCREW, PILOT (1 1/8)

13279-47070

$12.24

25

.SPRING (NT:45)

13268-47070

$3.97

26

WASHER

13291-29900

$1.87

27

O-RING This part replaces 13295-29900.

13295-29901

$3.97

28

JET, PILOT (37.5)

09492-35017

Unavailable

29

RING

13331-13A00

$6.95

30

JET, MAIN (127.5)

09491-25011

$12.38

31

VALVE ASSY, NEEDLE This part replaces 13370-37100.

13370-05530

$80.58

32

O RING This part replaces 13374-44080.

13374-35C00

$5.48

33

FILTER This part replaces 13376-84110.

13376-19F00

$9.41

34

SCREW

13602-43410

$2.80

35

FLOAT ASSY

13250-28A00

$29.07

36

PIN, FLOAT

13254-92311

$2.31

37

0 RING

13251-27A00

$9.92

38

.HOSE (3X5X600) | L:600->150 This part replaces 09352-30503-600.

09352-30504-600

$4.49

39

ADJUSTER

13267-14D00

Unavailable

40

RING This part replaces 13331-14D00.

13331-13E00

$5.32

41

SPRING

13268-14D00

Unavailable

42

SCREW (4XL4)

13601-04148

$2.80

42

SCREW This part replaces 02112-04163.

02112-0416A

$1.24

43

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.56

44

CAP

13499-44500

$14.18

45

ROD

13487-14D00

Unavailable

46

PLUNGER

13493-27A00

$11.88

47

SPRING

13271-09400

$4.11

48

BOLT

13613-14A00

$9.97

49

LEVER

13490-14A00

$8.27

50

SHAFT ASSY

13553-14D00

Unavailable

51

.HOSE | L:600->200 This part replaces 09352-50903-600.

09352-50006-600

$6.75

52

.HOSE | L:600->175 This part replaces 09352-50903-600.

09352-50006-600

$6.75

53

CLIP

13692-19C00

Unavailable

54

JET, MAIN AIR (0.7)

09493-70009

$18.33

55

JET, PILOT AIR (1.1)

09493-22005

Unavailable

56

CLAMP | MODEL R/S This part replaces 09404-06402.

09404-06039

$1.73

56

CLAMP, OVER FLOW HOSE | MODEL T

09404-06429

$1.82
