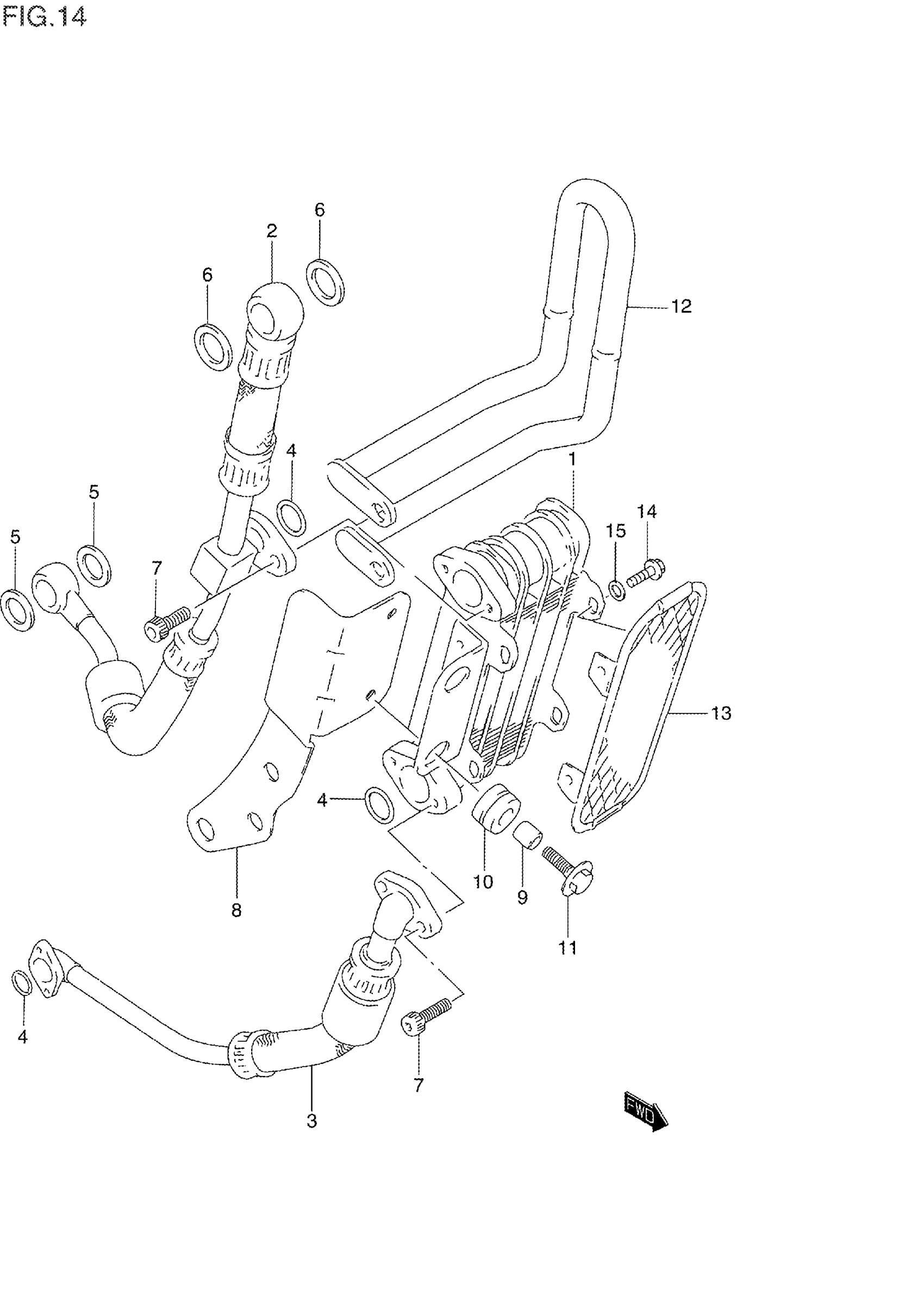

1995 Suzuki DR250SES OIL Cooler (Optional Diagram

← All diagrams

Find the part on the OIL Cooler (Optional diagram for your 1995 Suzuki DR250SES, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Suzuki DR250SES OIL Cooler (Optional Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

COOLER SET, OIL | MODEL L/M/N

16000-14830

1
Out of stock

COOLER SET, OIL | MODEL P/R/S

16000-14820

1
Out of stock

1

OIL COOLER

16600-14D00

1
Out of stock

2

HOSE, OIL COOLER, UPPER | MODEL L/M/N

16480-14D10

1
Out of stock

2

HOSE, OIL COOLER, UPPER | MODEL P/R/S

16450-14D00

1
Out of stock

3

HOSE, OIL COOLER, LOWER | MODEL L/M/N

16490-14D10

1
Out of stock

3

HOSE, OIL COOLER, LOWER | MODEL P/R/S

16490-14D00

1
Out of stock

4

O RING (ID:12.3,D:2.4)

09280-12008

3
Out of stock

5

GASKET (12X16.5X1.5) | MODEL L/M/N/P

09168-12010

2
Out of stock

5

GASKET (12X17X1) | MODEL R/S

09168-12017

2
Out of stock

6

GASKET (16X22X2)

09168-16003

2
Out of stock

7

BOLT | MODEL L/M/N/P This part replaces 07110-06165.

07130-0616B

4
Out of stock

7

BOLT | MODEL R/S This part replaces 07130-06163.

07130-0616B

4
Out of stock

8

BRACKET | MODEL L/M/N

16620-14D10

1
Out of stock

8

BRACKET | MODEL P/R/S

16620-14D00

1
Out of stock

9

SPACER (6.5X10X10) This part replaces 09180-06030.

09180-06310

2
Out of stock

10

CUSHION

09320-10015

2
Out of stock

11

BOLT (6X20) This part replaces 09116-06143.

09116-06115

2
Out of stock

12

GUARD, OIL COOLER

16640-14D00

1
Out of stock

13

BUMPER, OIL COOLER

16650-14D00

1
Out of stock

14

BOLT | MODEL L/M/N/P This part replaces 01547-05105.

01547-0510B

4
Out of stock

14

BOLT | MODEL R/S This part replaces 01547-05103.

01547-0510B

4
Out of stock

15

LOCK WASHER | MODEL L/M/N/P This part replaces 08321-21055.

08321-0105A

4
Out of stock

15

LOCK WASHER | MODEL R/S This part replaces 08321-01053.

08321-0105A

4
Out of stock
