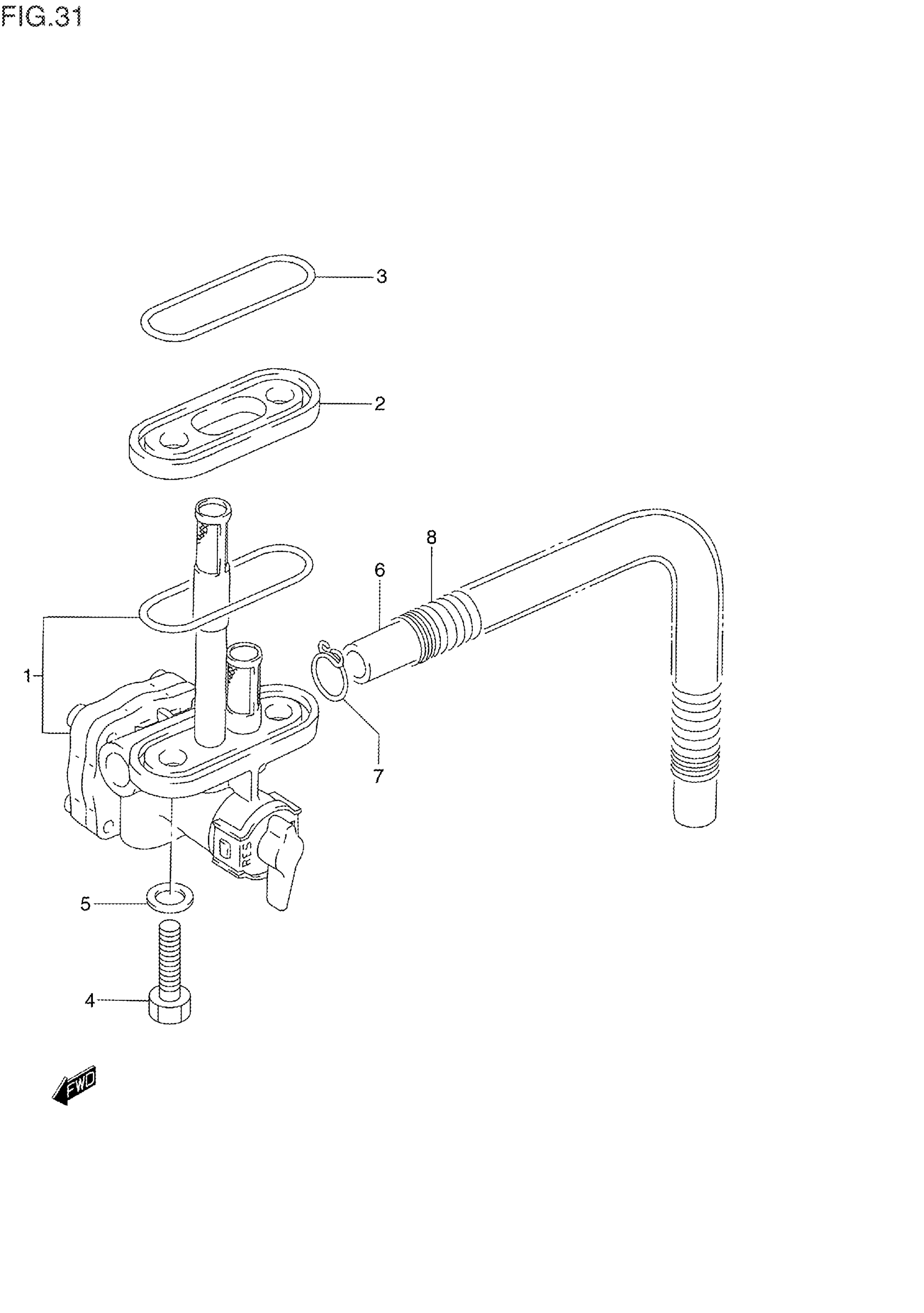

Suzuki DR250SES (1995) FUEL COCK Diagram

#

Description

Price

1

COCK ASSY, FUEL | MODEL L/M/N

44300-15D10

Unavailable

1

COCK ASSY,FUEL | MODEL P/R/S This part replaces 44300-15D30.

44300-15D32

Unavailable

2

SPACER, FUEL COCK

44365-14A00

$19.03

3

GASKET FUEL COCK This part replaces 44366-14A00.

44366-14A01

$2.80

4

BOLT This part replaces 09128-06006.

09128-06057

$1.64

5

GASKET

09168-06026

$2.80

6

HOSE(7X10.2X600 This part replaces 09352-70103-600.

09352-70104-600

$5.07

7

CLIP

09401-10401

$1.45

8

SPRING This part replaces 09440-13016.

09440-13052

$7.10
