1995 Suzuki DR250SES Frame Cover Diagram

← All diagrams

Find the part on the Frame Cover diagram for your 1995 Suzuki DR250SES, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

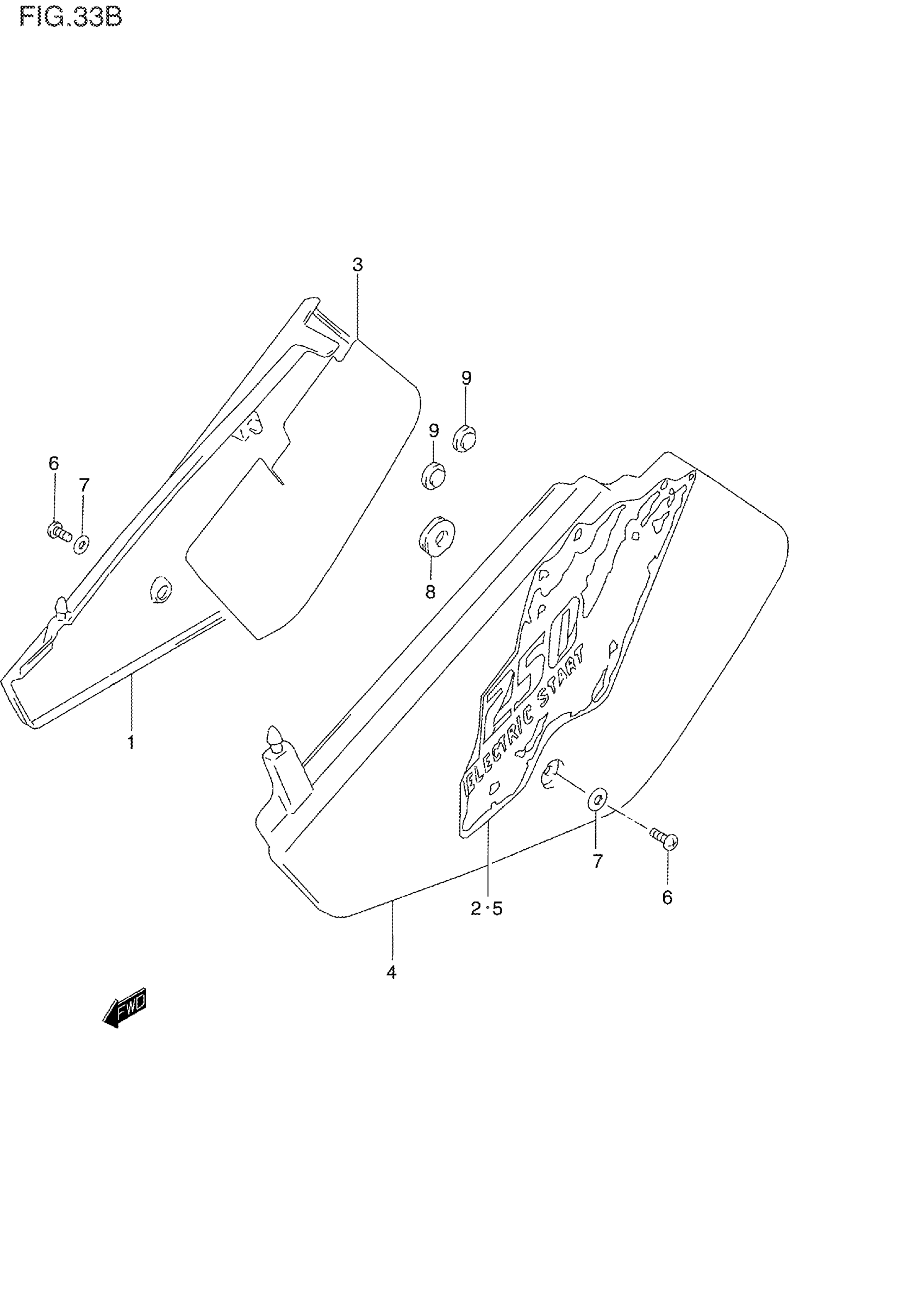

1995 Suzuki DR250SES Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, FRAME RH (WHITE)

47111-14D00-30H

1
Out of stock

2

TAPE, FRAME COVER RH

68135-15E00-D1T

1
Out of stock

3

SHIELD, FRAME COVER RH

47166-14D00

1
Out of stock

4

COVER, FRAME LH (WHITE)

47211-15D00-30H

1
Out of stock

5

TAPE, FRAME COVER LH

68145-15E00-D1T

1
Out of stock

6

SCREW

02142-06167

2
Out of stock

7

2

$2.35

In stock

8

CUSHION, REAR

09320-08029

2
Out of stock

9

CUSHION, MUFFLER

09321-10018

2
Out of stock
