1985 Suzuki DR250 Rear Fender Diagram

← All diagrams

Find the part on the Rear Fender diagram for your 1985 Suzuki DR250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

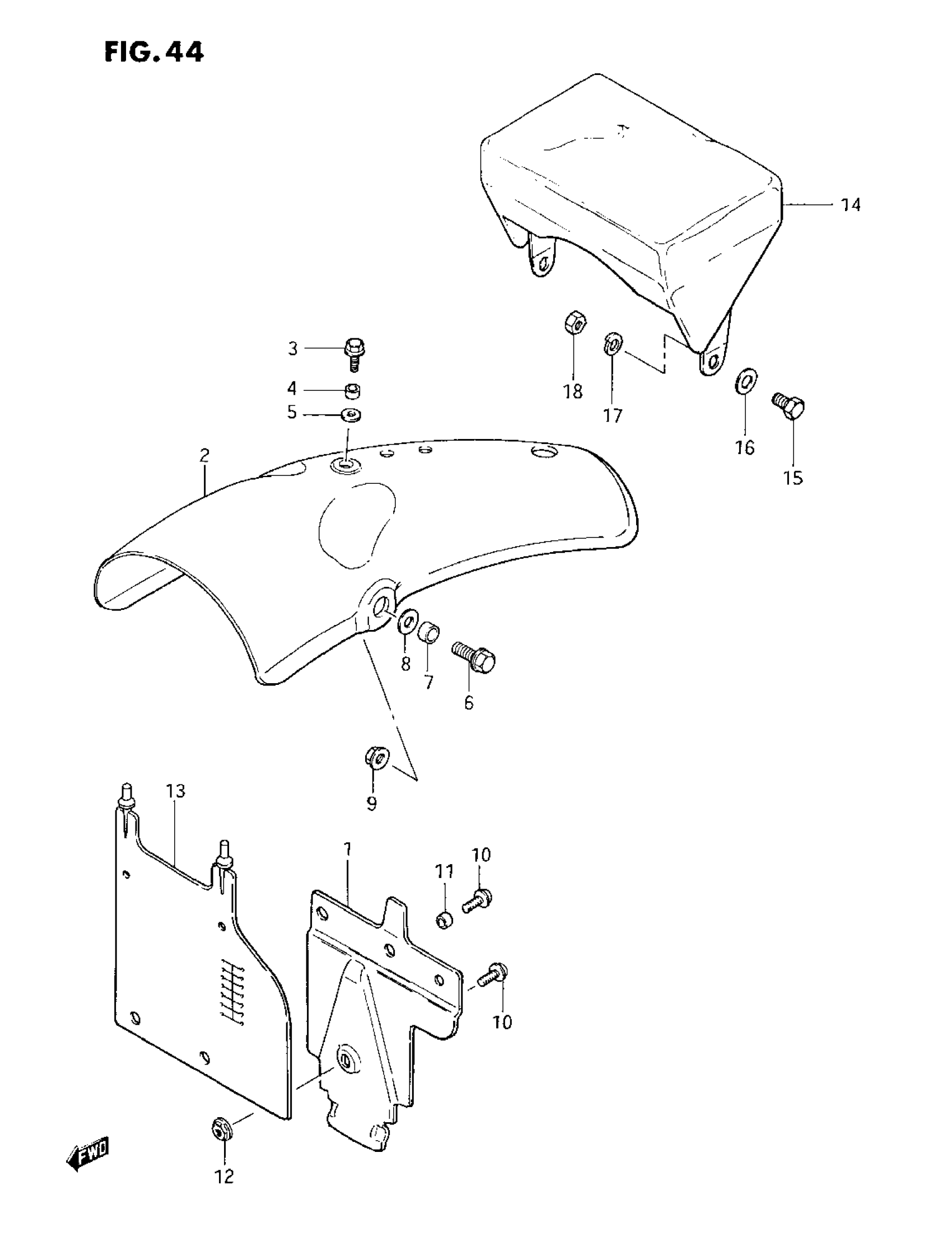

1985 Suzuki DR250 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR FENDER, FRONT

63112-38220

1
Out of stock

2

NO DESCRIPTION AVAILABLE This part replaces 63111-38221-163.

63111-38221-10V

1
Out of stock

3

BOLT This part replaces 01517-06165.

01550-0616A

1
Out of stock

4

1

$2.22

In stock

5

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

1
Out of stock

6

BOLT This part replaces 01517-08205.

01550-0820A

2
Out of stock

7

SPACER

09180-08100

2
Out of stock

8

WASHER (8.5X22X2) This part replaces 09160-08007.

09160-08127

2
Out of stock

9

NUT This part replaces 08319-31088.

08319-3108A

2
Out of stock

10

SCREW This part replaces 02152-06128.

02112-06127

3
Out of stock

11

2

$2.22

In stock

12

NUT This part replaces 08319-31068.

08319-31067

1
Out of stock

13

MUD FLAP, FRONT

63411-38220

1
Out of stock

14

BAG ASSY, SEAT TAIL (BLUE) This part replaces 94900-38200-54G.

94900-38220-4UZ

1
Out of stock

15

BOLT This part replaces 01107-06125.

01500-0612A

2
Out of stock

16

WASHER This part replaces 08322-21068.

08322-01067

2
Out of stock

17

2

$2.28

In stock

18

.NUT This part replaces 08310-11068.

08310-00067

2
Out of stock
