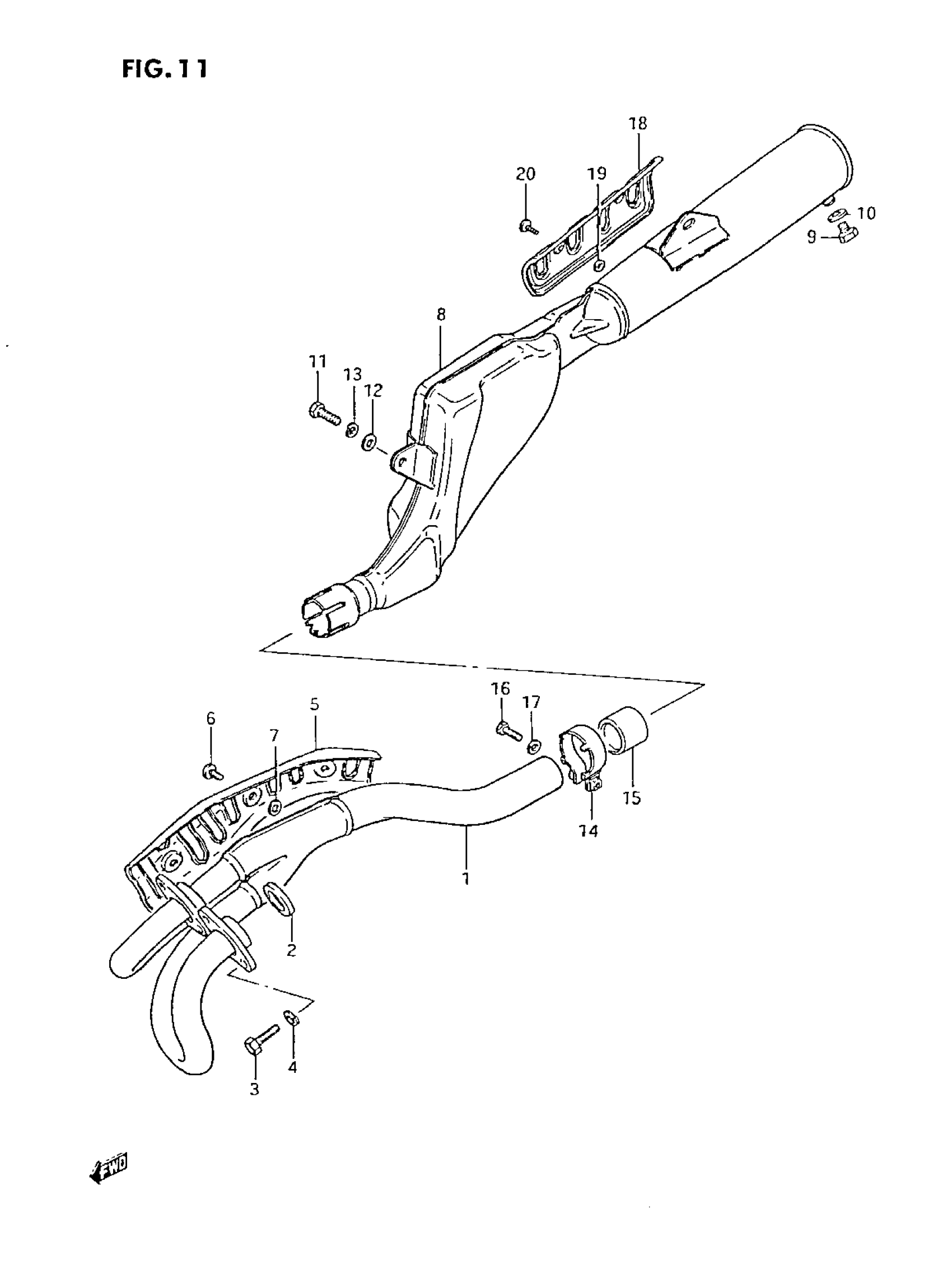

Suzuki DR250 (1985) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST

14150-38202-H01

Unavailable

2

GASKET, EXHAUST PIPE This part replaces 14181-03310.

14181-37D00

$4.18

3

BOLT, GEAR SHIFT ARM This part replaces 01107-06255.

01500-0625A

$1.77

4

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.83

5

COVER

14186-38200

Unavailable

6

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06104.

02142-0610A

$1.38

7

GASKET,MUFFLER This part replaces 09168-06005.

09168-06105

$2.13

8

MUFFLER ASSY

14301-38240-H01

Unavailable

9

PLUG, DRAIN

09247-12103

$2.80

10

GASKET

09168-12002

$1.59

11

BOLT This part replaces 01107-08205.

01500-0820A

$2.87

12

WASHER This part replaces 08322-11084.

08322-0108A

$2.18

13

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.83

14

CLAMP

14459-32400

Unavailable

15

CONNECTOR,MUFFL This part replaces 14771-38200.

14771-38200-H17

Unavailable

16

BOLT

09100-08195

Unavailable

17

WASHER This part replaces 08322-11084.

08322-0108A

$2.18

18

COVER

14781-38200

Unavailable

19

GASKET,MUFFLER This part replaces 09168-06005.

09168-06105

$2.13

20

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06104.

02142-0610A

$1.38
