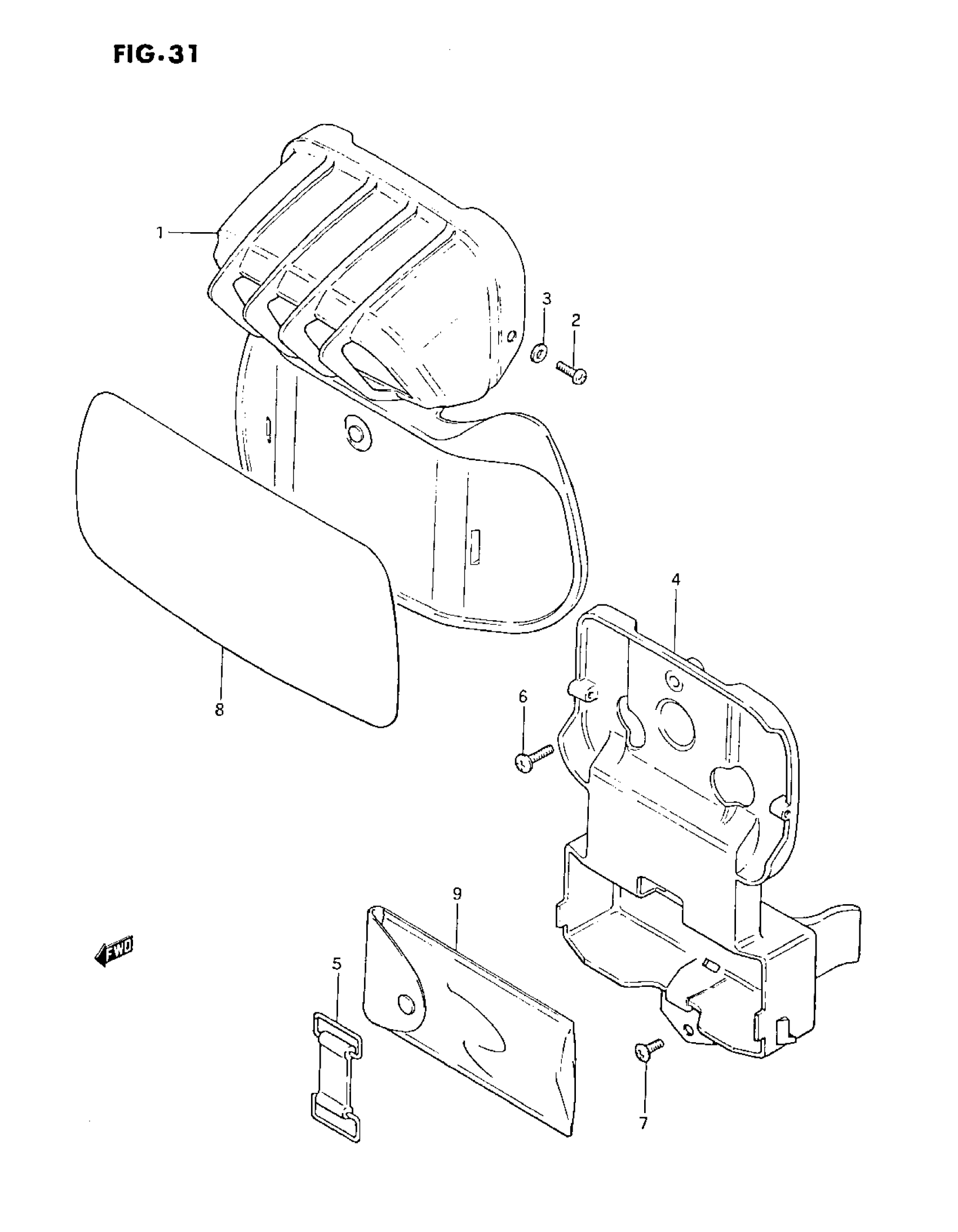

Suzuki DR250 (1985) HEADLAMP HOUSING Diagram

#

Description

Price

1

HOUSING, HEADLAMP (YELLOW)

51811-37202-163

Unavailable

2

SCREW This part replaces 03211-04128.

03142-0412B

$2.37

3

WASHER This part replaces 08322-21047.

08322-01047

$1.88

4

HOLDER, TOOL This part replaces 41551-37201.

41551-37202

Unavailable

5

BAND

09462-00017

$2.95

6

SCREW 5 X 20 This part replaces 02142-05258.

02142-05257

Unavailable

7

SCREW This part replaces 02142-05128.

02142-05127

$1.97

8

EMBLEM, FRONT

68169-37200

Unavailable

9

TOOL ASSY This part replaces 09800-00242.

09800-21024

Unavailable
