Description

Price

1

COCK ASSY,FUEL This part replaces 44300-38201.

44300-38204

$65.30

2

FUEL COCK O RIN This part replaces 44348-28070.

44348-28071

$4.63

3

CUP

44347-28071

$10.15

4

O-RING This part replaces 44346-28070.

44346-28071

$2.35

5

O RING, LEVER This part replaces 44353-32470.

44353-12C01

$6.80

6

SPRING

44357-32470

$2.12

7

SCREW

44343-41370

$2.50

8

BOLT This part replaces 09128-06006.

09128-06057

$1.64

9

GASKET (5.8X13X1.2) This part replaces 09168-06010.

09168-06023

$2.01

10

HOSE,5X10X600 This part replaces 09343-05129.

44421-13ER0

$9.08

11

CLIP

09401-08401

$1.52

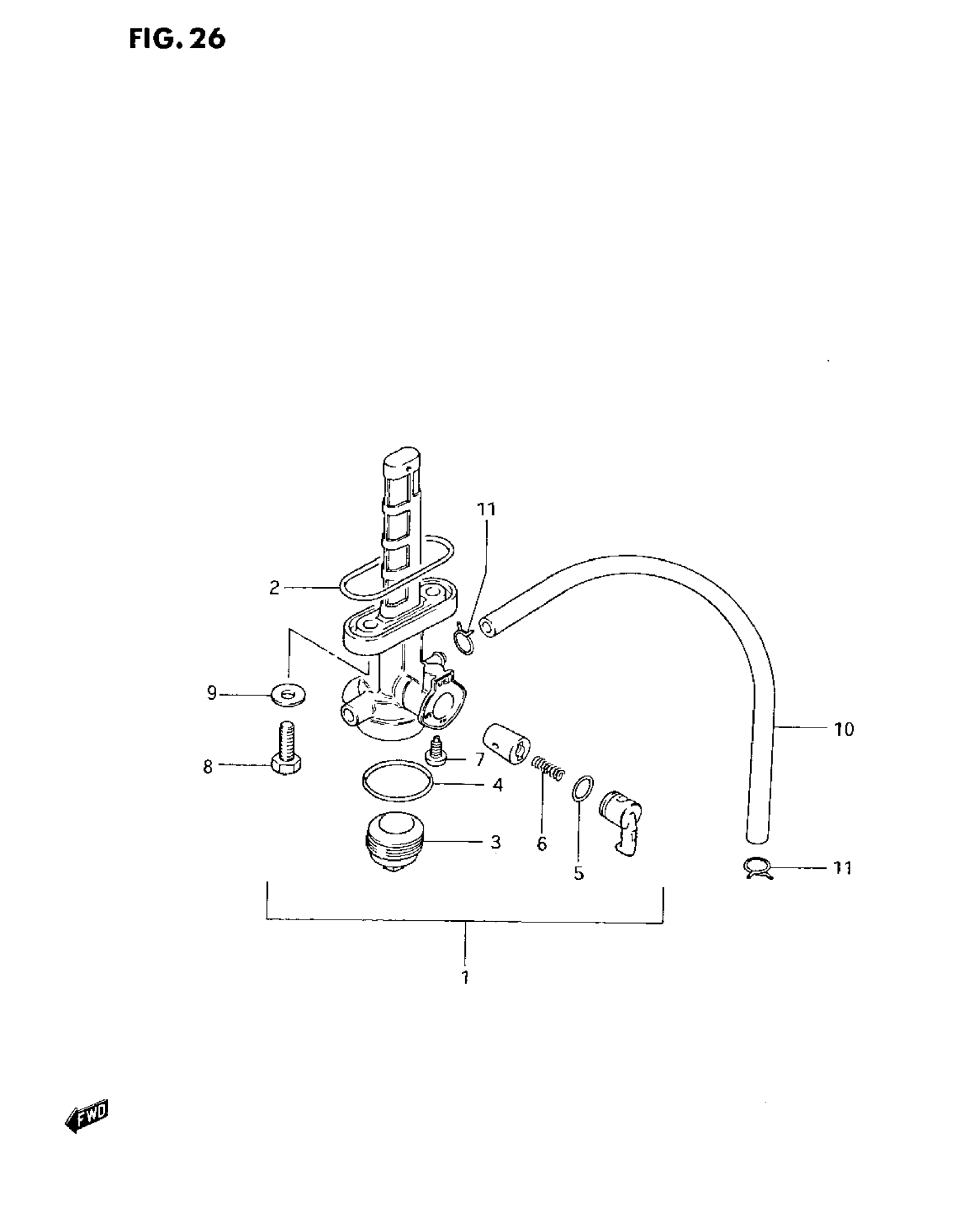

Suzuki DR250 (1985) FUEL COCK Diagram
