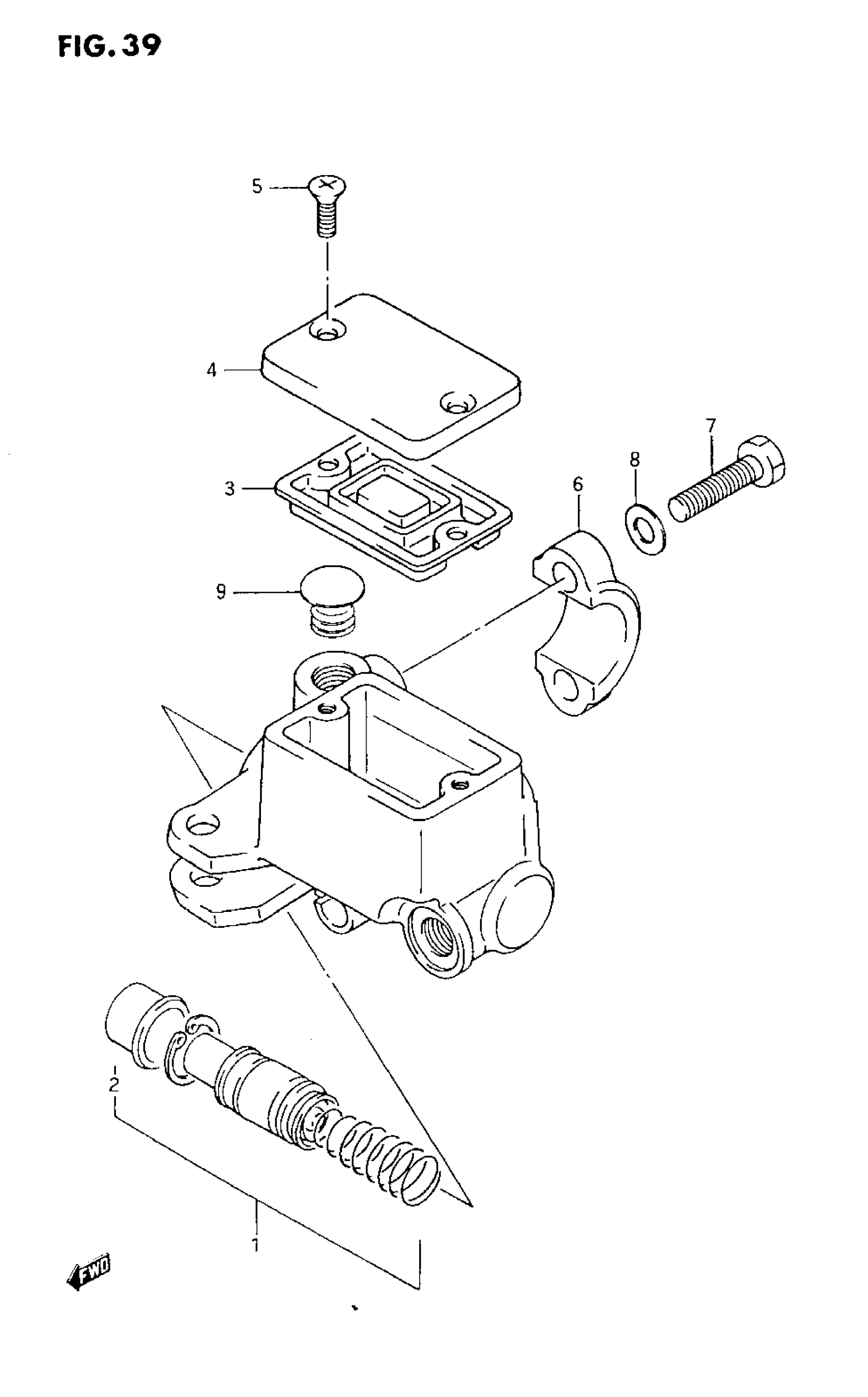

Suzuki DR250 (1985) FRONT MASTER CYLINDER Diagram

#

Description

Price

1

CYLINDER, FR MA This part replaces 59600-13A20.

59600-13A60

Unavailable

1

PISTON & CUP SET

59600-13820

$65.62

2

BOOT

59666-44300

$5.30

3

DIAPHRAGM

59667-04700

$8.95

4

CAP This part replaces 59669-04710.

69669-24A01

$14.23

5

SCREW

69689-49300

$1.81

6

.HOLDER

59671-36500

$11.50

7

BOLT, GEAR SHIFT ARM This part replaces 01107-06255.

01500-0625A

$1.77

8

.WASHER This part replaces 08322-21064.

08322-0106B

$2.24

9

CAP This part replaces 09250-09001.

09250-09008

$1.56
