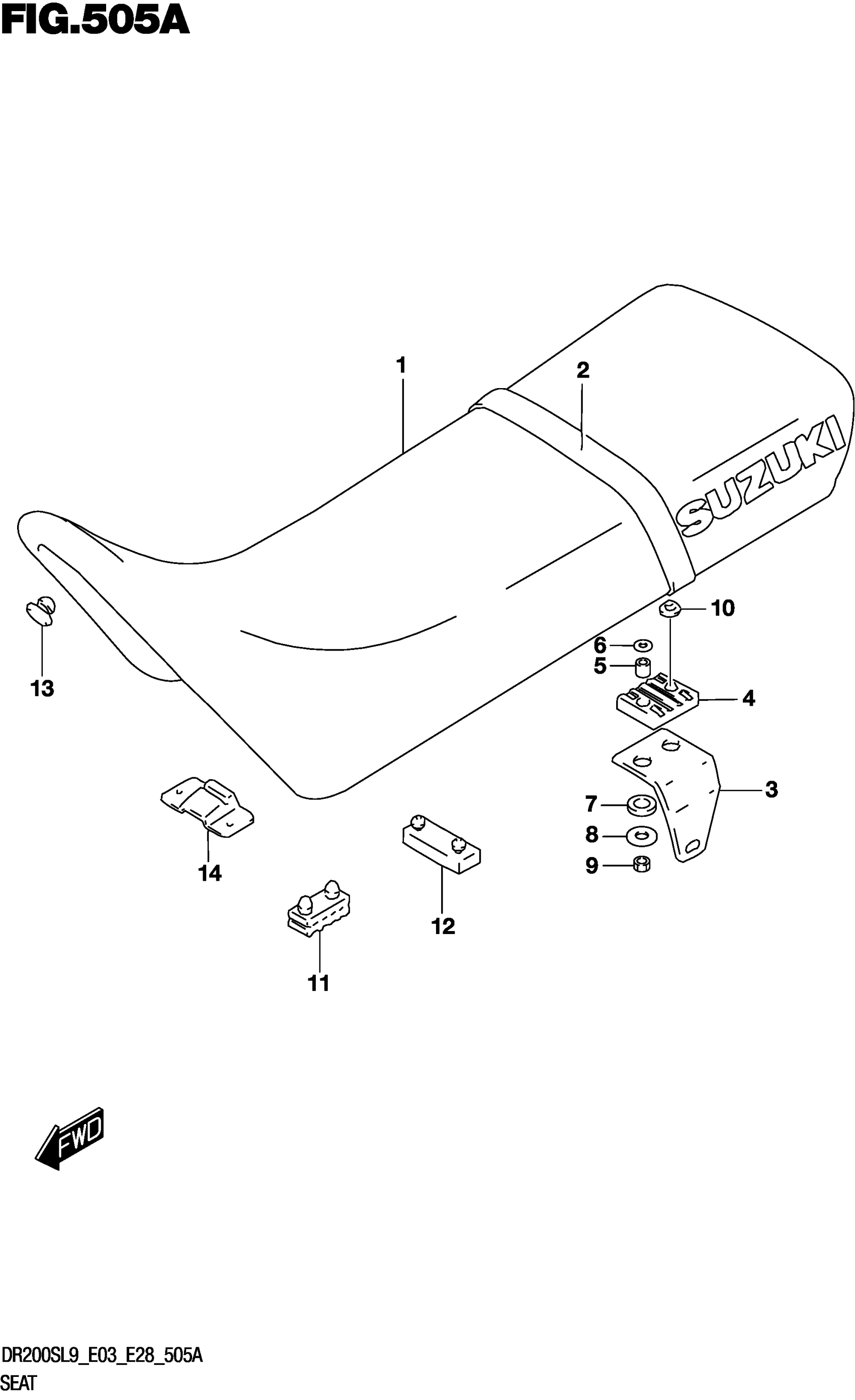

Suzuki DR200SL9 (2019) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLACK/SILVER)

45100-49J00-AX8

$332.93

2

.BAND

45180-49J00-T5P

$24.43

3

.BRACKET

45117-49J00

$11.02

4

.CUSHION

45150-23450

$7.22

5

.SPACER

45219-49J00

$4.18

6

.WASHER (6.5X16X4)

09160-06131

$2.53

7

.CUSHION

45147-23450

Unavailable

8

WASHER This part replaces 09160-06012.

09160-06054

$1.62

9

.NUT

08316-2006A

$2.87

10

WASHER (6.3X16X1)

09169-06053

$1.10

11

.CUSHION,SEAT (40X20X15)

45149-31300

$3.26

12

.CUSHION

45149-43500

$7.73

13

CUSHION

09329-10001

$2.14

14

PLATE

45119-42A00

$7.40
