2019 Suzuki DR200SL9 Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 2019 Suzuki DR200SL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

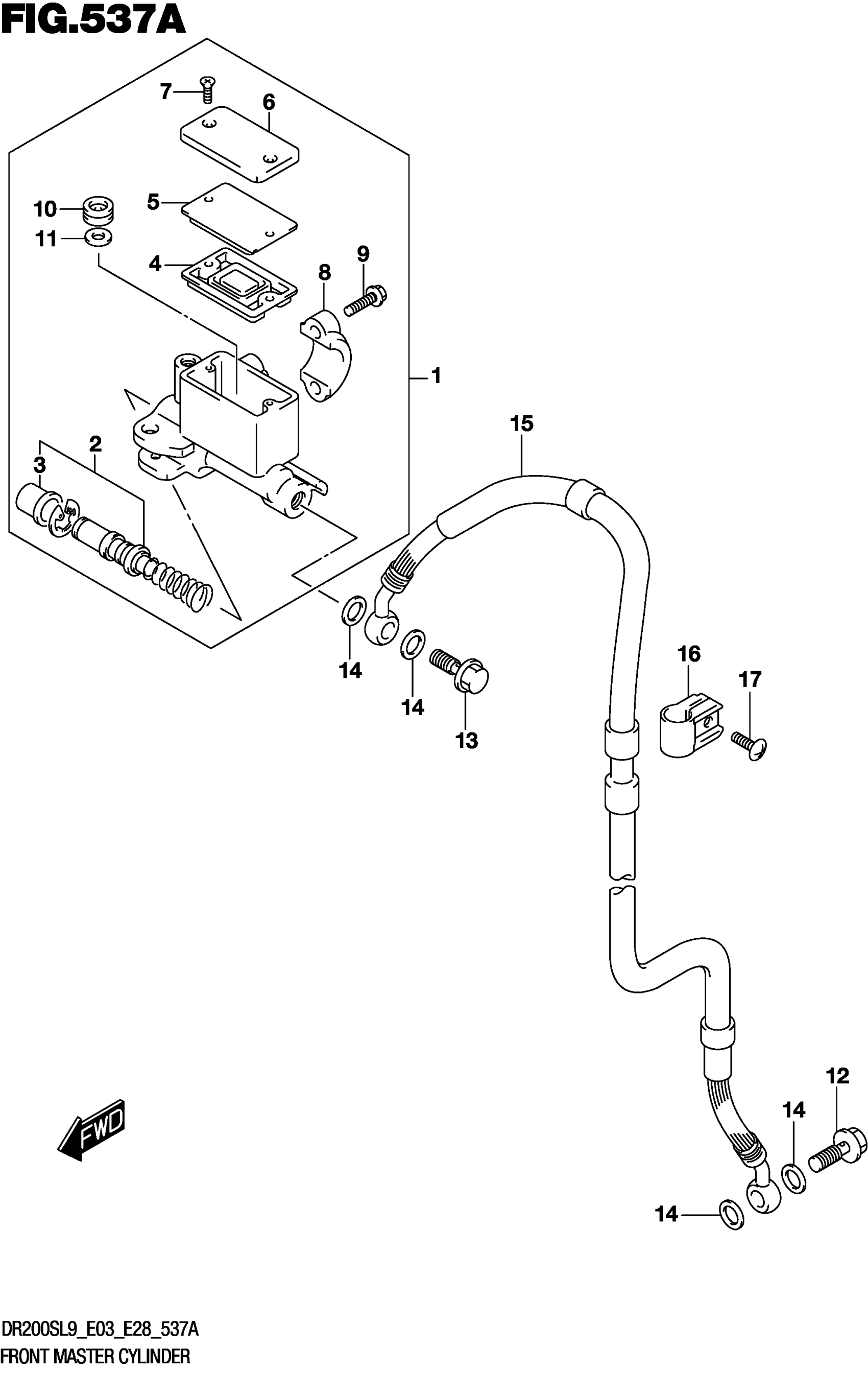

2019 Suzuki DR200SL9 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER ASSY FRONT MASTER

59600-44E50

1
Out of stock

2

.PISTON/CUP SET

69600-38810

1
Out of stock

3

..BOOT

59666-44300

1
Out of stock

4

.DIAPHRAGM

59667-04700

1
Out of stock

5

.PLATE,DIAPHRAGM

59668-14F00

1
Out of stock

6

.PLATE

59669-14F20

1
Out of stock

7

.SCREW

02122-0412A

2
Out of stock

8

.HOLDER

59671-03D00

1
Out of stock

9

.BOLT (6X25)

59675-06F00

2
Out of stock

10

.SEPARATOR

59748-36E00

1
Out of stock

11

.RING

69744-36E00

1
Out of stock

12

UNION

09360-10061

1

$6.33

In stock

13

UNION (10X1.25X22)

09360-10062

1
Out of stock

14

WASHER (10X15X1.5)

09161-10009

4
Out of stock

15

HOSE

59480-49J00

1
Out of stock

16

CLAMP

59245-49J00

1
Out of stock

17

SCREW

02142-0612B

1
Out of stock
