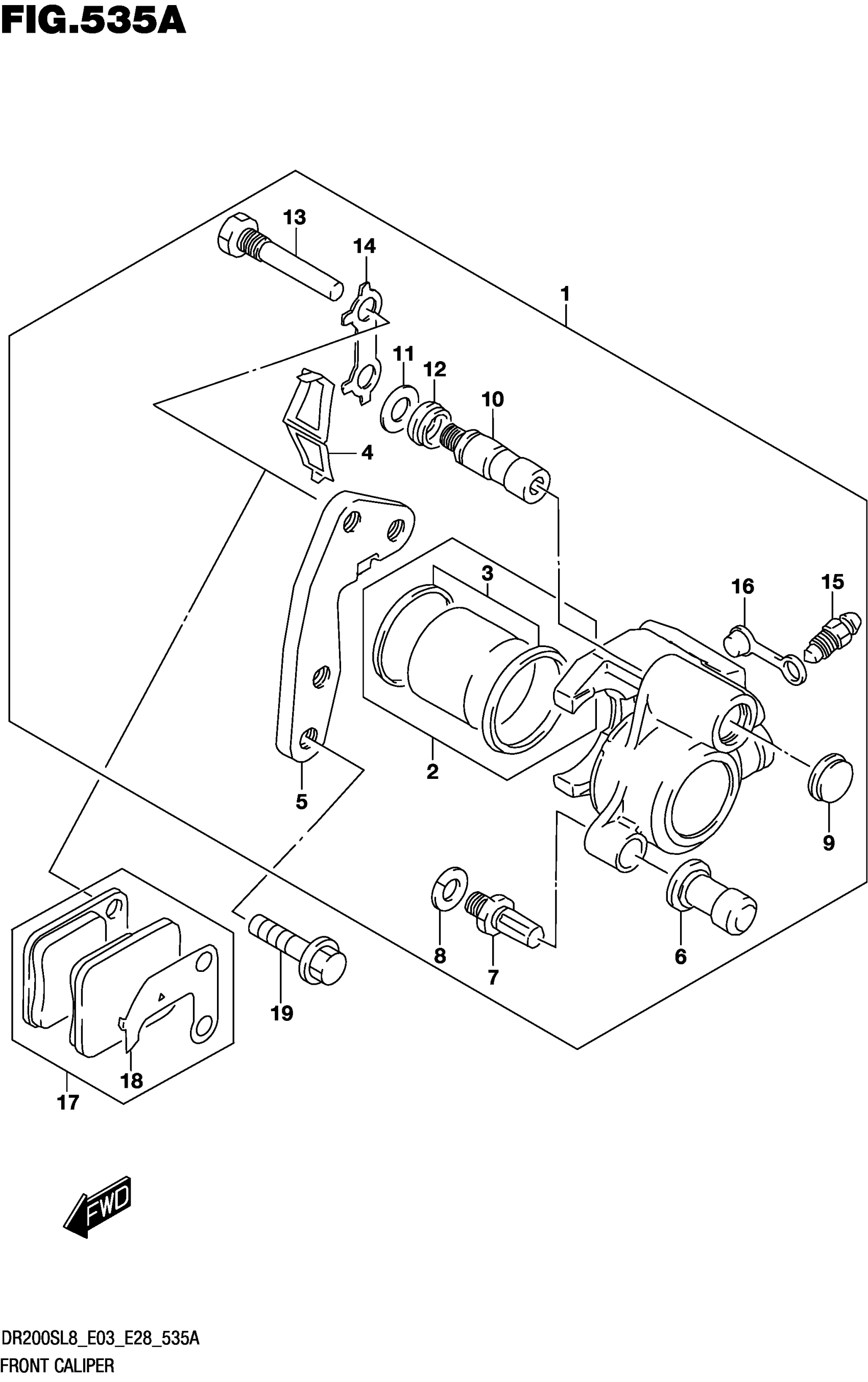

Suzuki DR200SL8 (2018) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY

59300-42A20-999

$318.17

2

.PISTON SET

59300-42820

Unavailable

3

..SEAL SET,PISTON

69100-13820

$8.02

4

.SPRING

59315-13A00

$12.43

5

.BRACKET

59351-13A01

Unavailable

6

.BOOT

59386-13A00

$7.28

7

.BOLT

59382-13A00

$7.24

8

.WASHER

59314-13A00

$2.28

9

.SEAL

59384-13A00

$4.93

10

.PIN

59305-13A01

$22.60

11

.SPRING

59306-13A00

$3.57

12

.BOOT

59303-13A00

$5.46

13

.PIN

59345-13A00

$7.88

14

.WASHER

59346-13A00

$4.70

15

.BLEEDER

59121-01A00

$7.99

16

.CAP,BLEEDER

59122-01A00

$3.97

17

PAD & SHIM SET

59300-42860

$68.63

18

.SHIM

59371-13A00

$10.58

19

BOLT (8X30)

09103-08269

$2.80
