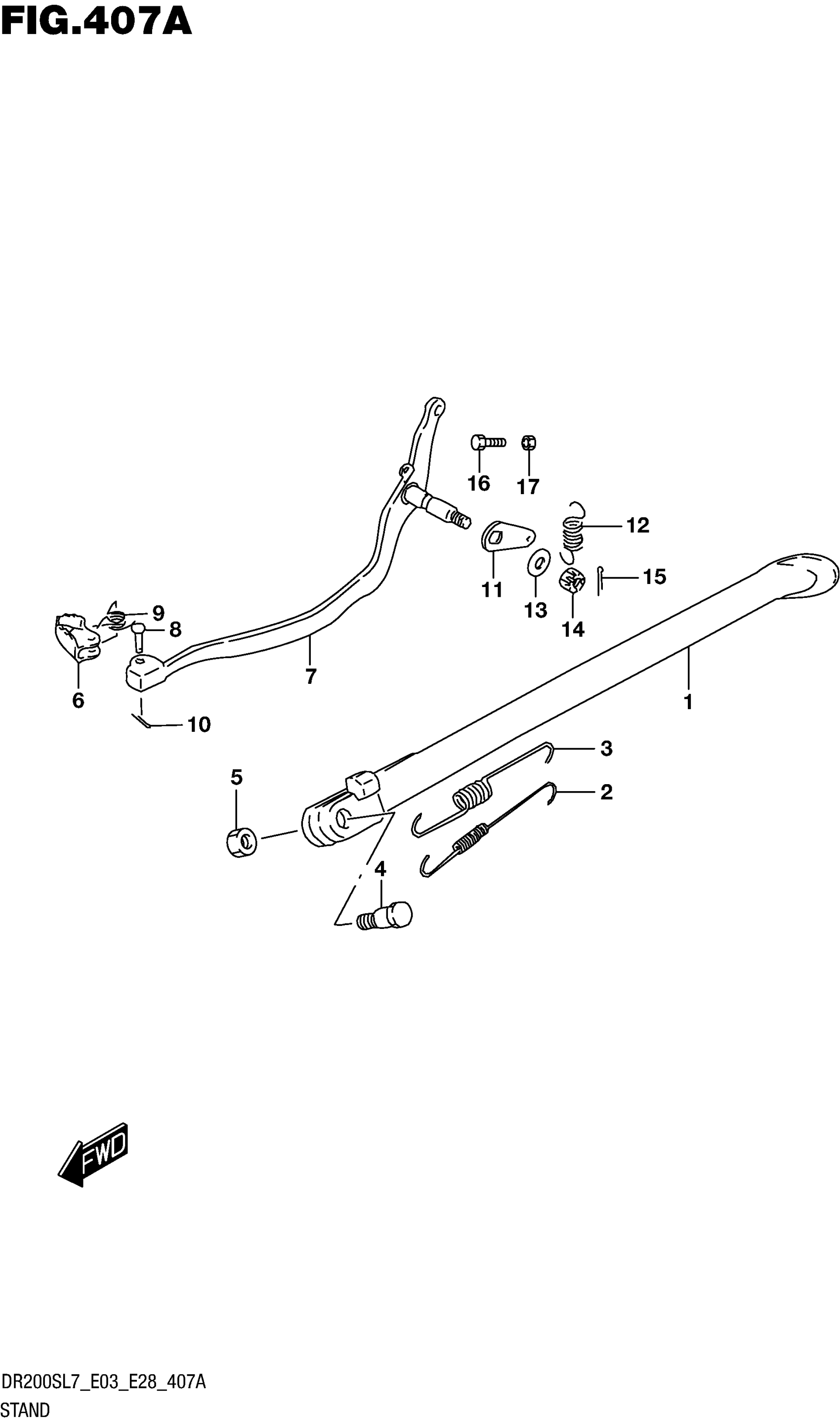

Suzuki DR200SL7 (2017) STAND (DR200SL7 E03) Diagram

#

Description
Price

1

STAND, PROP (BLACK)

42310-44A60-019

$108.58

2

SPRING, PROP STAND INNER

42421-49J00

$9.28

3

SPRING, PROP STAND OUTER

42422-49J00

$15.77

4

BOLT (10X30)

09111-10047

$3.76

5

NUT

09159-10097

$5.10

6

PEDAL, BRAKE

43110-14130

$18.23

7

ARM, BRAKE PEDAL

43120-44A12

$83.00

8

PIN

09200-06038

$2.58

9

SPRING

09444-11005

$2.80

10

PIN, COTTER

04111-2015A

$1.22

11

ARM, BRAKE RETURN SPRING

43128-38200

$3.80

12

SPRING

09443-14002

$2.21

13

WASHER, THRUST

08211-08202

$2.29

14

NUT

08314-4008B

$3.30

15

PIN, COTTER

04111-2020A

$1.22

16

BOLT (6X23)

09100-06009

$1.79

17

NUT

08310-0006B

$2.37
