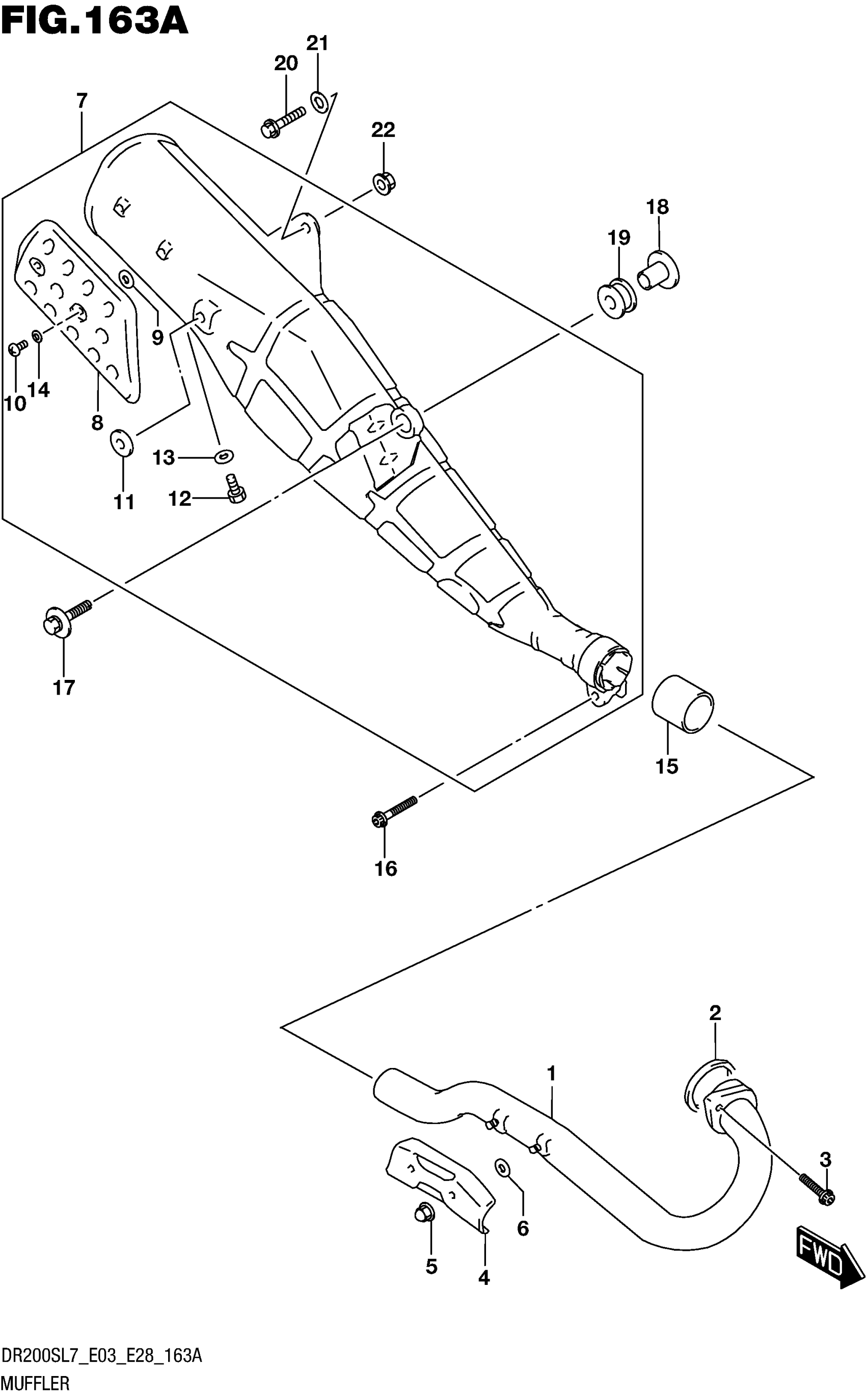

Suzuki DR200SL7 (2017) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST

14150-42A30

$244.93

2

GASKET, EXHAUST PIPE

14181-42A00

$10.01

3

BOLT

07120-0825A

$3.98

4

COVER, EXHAUST PIPE

14186-42A20

Unavailable

5

NUT

09145-06005

$4.62

6

GASKET (6X16X1.4)

09168-06122

$2.75

7

MUFFLER ASSY

14301-42A61-H01

$547.33

8

.COVER, MUFFLER

14781-42A20

$31.82

9

.GASKET (5.8X13X1.4)

09168-06120

$2.80

10

.SCREW (6X10)

09139-06076

$2.43

11

.CUSHION

09321-10007

$2.80

12

.PLUG (12X9)

09247-12104

$2.73

13

.GASKET (12.1X16.2X3.7)

09168-12002

$1.59

14

.WASHER

08322-0106A

$1.83

15

GASKET, 2ND MUFFLER

14773-14202

$26.15

16

BOLT

07120-0835A

$3.25

17

BOLT (8X35)

09118-08080

$3.30

18

SPACER (8.6X12X17.5)

09180-08151

$4.73

19

CUSHION

09320-12043

$7.20

20

BOLT (8X35)

09103-08357

$4.53

21

WASHER

08322-0108A

$2.18

22

NUT

08361-2508A

$1.97
