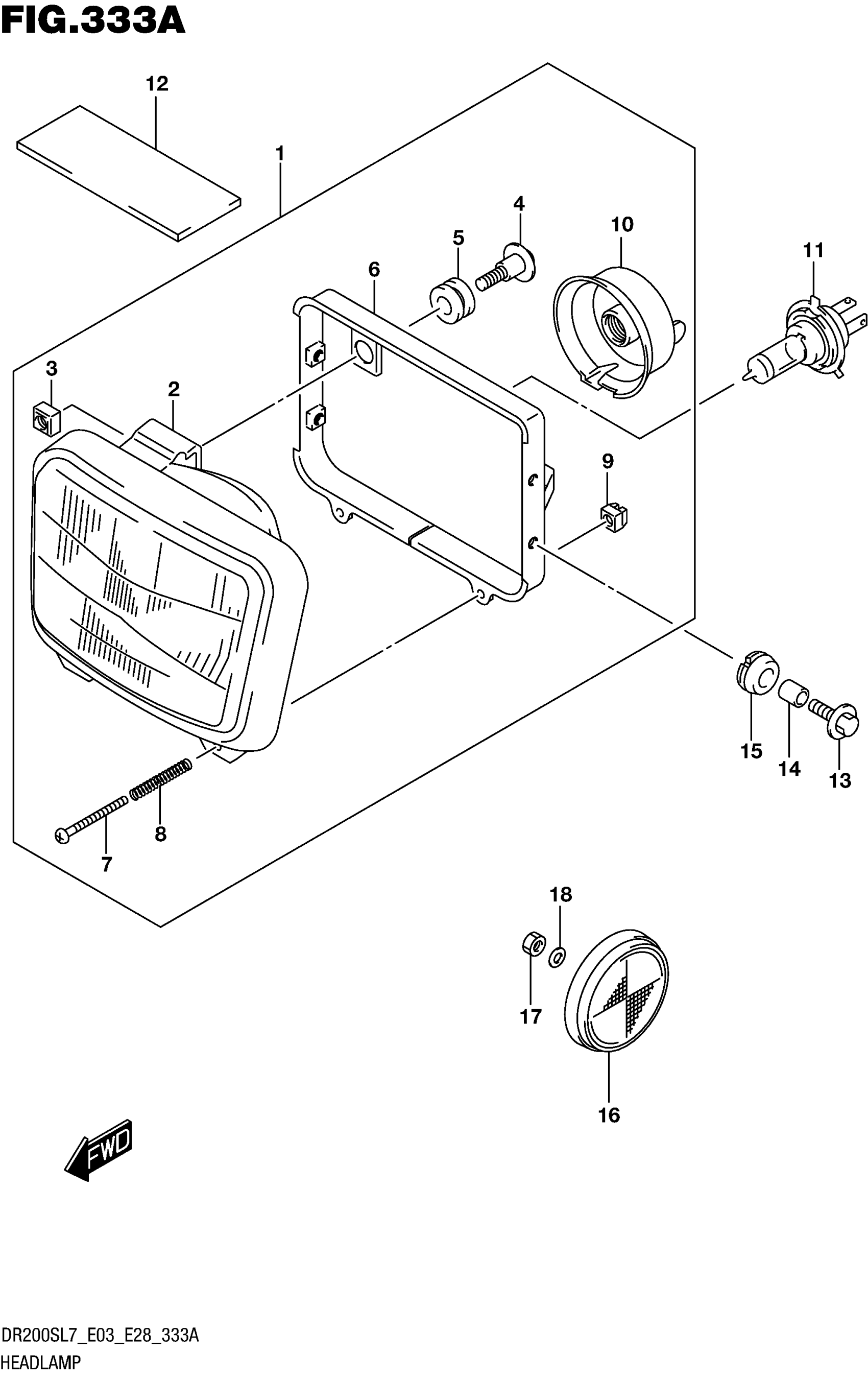

Suzuki DR200SL7 (2017) HEADLAMP (DR200SL7 E03) Diagram

#

Description
Price

1

HEADLAMP ASSY

35100-12EA0-999

$494.00

2

.UNIT ASSY

35121-12EA0

$177.30

3

.NUT

35135-45900

$3.67

4

.SCREW MOUNTING

35136-38A00

$4.53

5

.CUSHION

35139-45230

$2.25

6

.HOUSING

35141-12EA0

$126.22

7

.SCREW ADJUSTING

35151-12EA0

$7.03

8

.SPRING ADJUSTING

35154-12EA0

$7.82

9

.NUT ADJUSTING

35135-12E20

$4.20

10

.COVER SOCKET

35173-01440

$19.60

11

BULB (12V,60/55W) This part replaces 09471-12185.

09471-12060

$22.69

12

CUSHION HEADLAMP

36920-44A01

$7.22

13

BOLT (6X20)

09116-06167

$2.19

14

SPACER (6.5X10X10)

09180-06310

$1.92

15

CUSHION

09320-09018

$2.28

16

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$13.94

16

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$13.94

17

NUT

08310-0005A

$1.83

18

WASHER (5.2X12X1.6) | RH

09160-05026

$1.48
