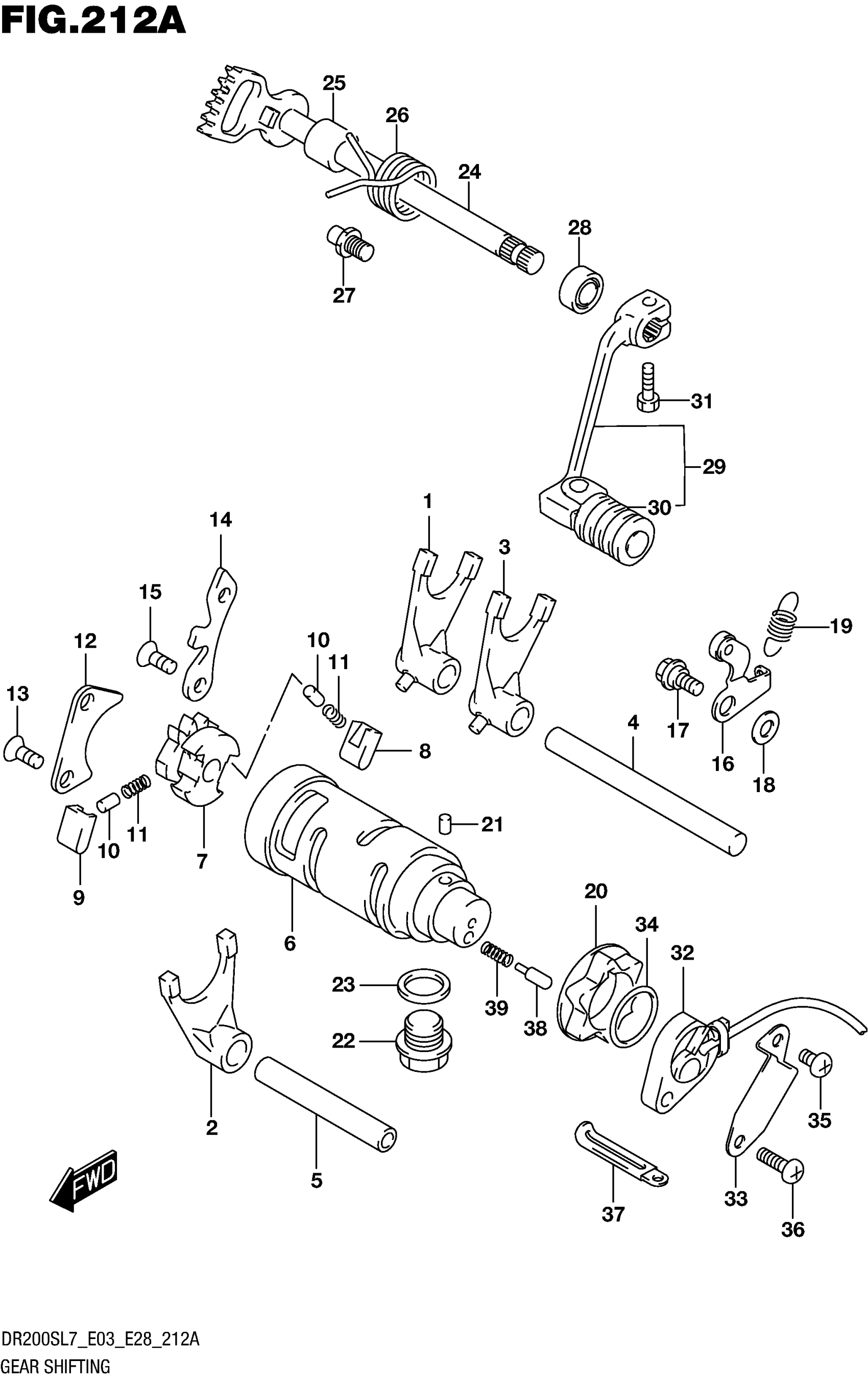

Suzuki DR200SL7 (2017) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT NO.1

25211-42A02

Unavailable

2

FORK, GEAR SHIFT NO.2

25221-42A02

Unavailable

3

FORK, GEAR SHIFT NO.3

25231-42A02

Unavailable

4

SHAFT, GEAR SHIFT FORK (L:109

25411-16701

$20.33

5

SHAFT, GEAR SHIFT FORK NO.2

25421-35420

Unavailable

6

CAM, GEAR SHIFT

25310-42A00

Unavailable

7

GEAR, GEAR SHIFT CAM DRIVEN

25322-31310

$30.40

8

PAWL, GEAR SHIFT NO.1

25323-34201

$6.61

9

PAWL, GEAR SHIFT NO.2

25324-34201

$6.80

10

PIN (5X8)

09261-05003

$1.69

11

SPRING

09440-04003

$1.48

12

LIFTER, GR SHIFT POLE

25331-30001

Unavailable

13

SCREW (6X12)

09126-06011

$2.01

14

GUIDE, GEAR SHIFT CAM

25341-05200

Unavailable

15

SCREW (6X12)

09126-06011

$2.01

16

STOPPER, GEAR SHIFT CAM

25350-42A01

Unavailable

17

BOLT (6X14.6)

09111-06054

$4.02

18

WASHER

08211-06141

$1.61

19

SPRING

09443-10036

Unavailable

20

PLATE, GEAR SHIFT CAM STOPPER

25381-04700

Unavailable

21

PIN

04221-04069

$2.30

22

PLUG (14X12)

09247-14026

$3.38

23

GASKET (13.8X18.8X4.8)

09168-14002

$2.83

24

SHAFT, GEAR SHIFTING

25510-05201

$101.80

25

SPACER (12X20X15.3)

09180-12068

$2.63

26

SPRING

09444-26023

$5.25

27

STOPPER, GEAR SHIFT ARM

25671-01011

$4.09

28

OIL SEAL (12X22X9)

09285-12006

$5.70

29

LEVER ASSY, GEAR SHIFT

25600-42A00

$46.45

30

.RUBBER, GEAR SHIFT PEDAL

25652-03D00

$4.63

31

BOLT

01500-0620A

$1.77

32

BASE ASSY, NEUTRAL SWITCH

37720-42A30

$46.52

33

PROTECTOR, GEAR SHIFT SWITCH

37721-42A00

$3.80

34

.O-RING (D:2.4,ID:21.8)

09280-22001

$1.48

35

SCREW

02112-0508A

$1.43

36

.SCREW

02112-0516A

$1.45

37

CLAMP (L:45)

09404-06429

$1.82

38

PIN (5X15.5)

09209-05011

$2.02

39

SPRING

09440-04010

$1.52
