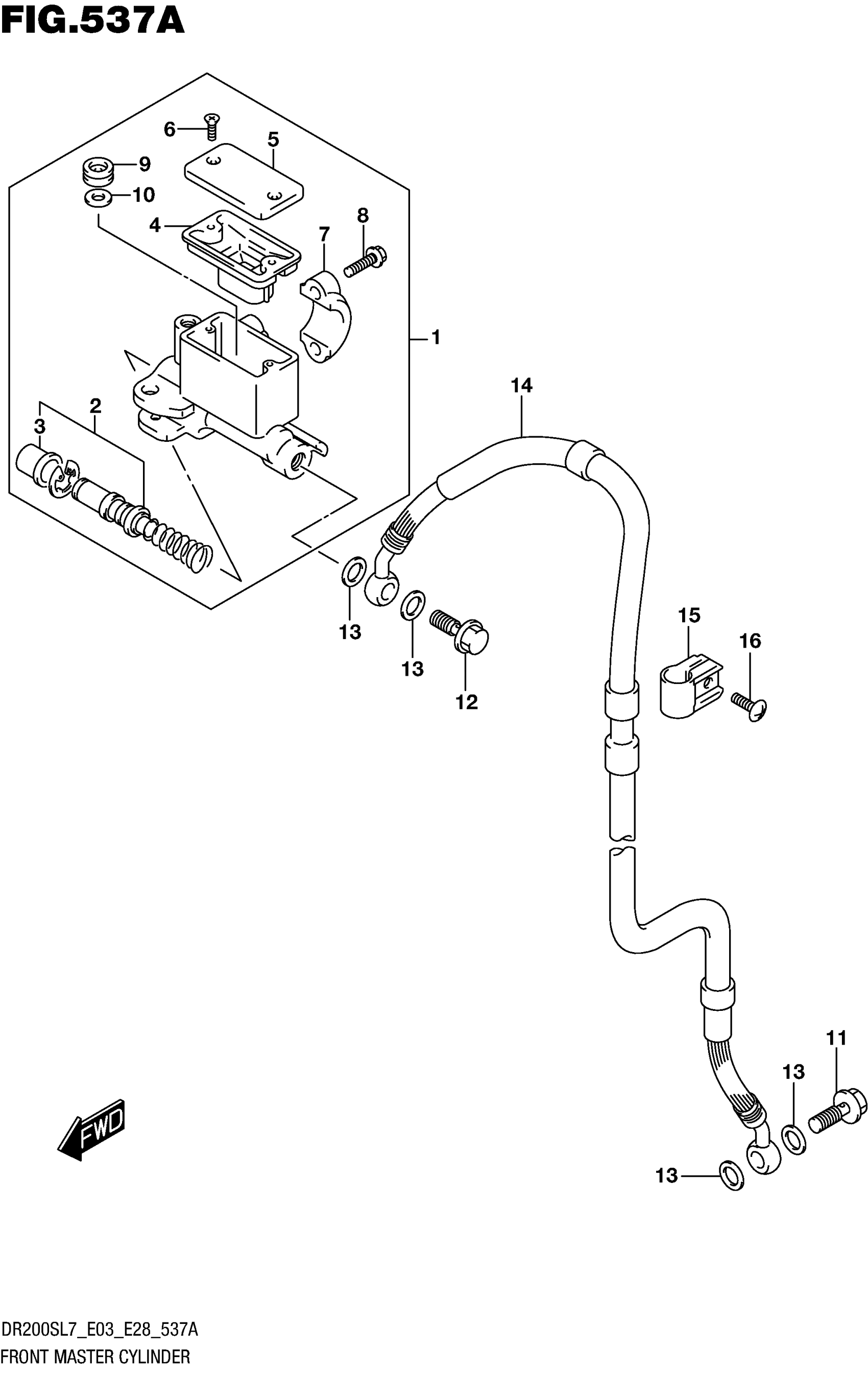

Suzuki DR200SL7 (2017) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER

59600-44E30

$339.85

1

(SILVER)

59600-44E30

$339.85

2

.PISTON/CUP SET

69600-38810

$66.13

3

..BOOT

59666-44300

$5.30

4

.DIAPHRAGM

59667-44B00

$8.95

5

.CAP (SILVER)

59669-03D00

$36.47

6

.SCREW

02122-04127

$1.97

7

.HOLDER (SILVER)

59671-03D00

$29.60

8

.BOLT

59675-27C00

$3.34

9

.SEPARATOR

59748-36E00

$10.58

10

.RING

69744-36E00

$4.53

11

UNION

09360-10061

$5.89

12

UNION

09360-10062

$5.81

13

WASHER (10X15X1.5)

09161-10009

$1.83

14

HOSE, FRONT BRAKE

59480-49J00

Unavailable

15

CLAMP, FR BRAKE HOSE

59245-49J00

Unavailable

16

SCREW

02142-0612B

$1.89
