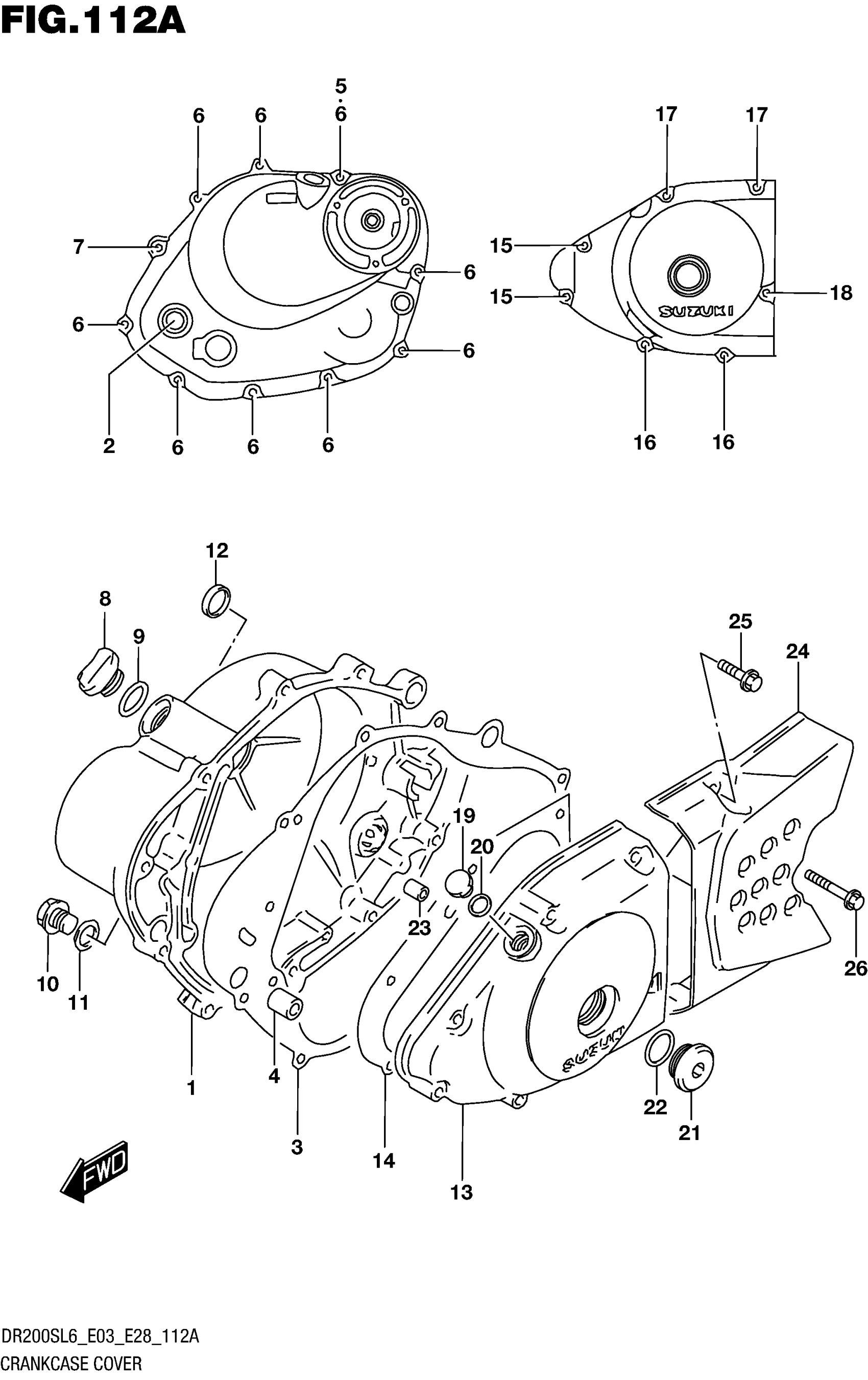

Suzuki DR200SL6 (2016) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH This part replaces 11340-42A20.

11340-42A30

$275.28

2

.LENS, OIL LEVEL CHECK

11971-45010

$16.49

3

.GASKET, CLUTCH COVER

11482-05211

$12.26

4

PIN, KNOCK

04211-13189

$2.25

5

GASKET (5.8X13X1.2)

09168-06023

$2.09

6

BOLT

01547-0630A

$2.38

7

BOLT

01547-0645A

$2.53

8

PLUG

09259-20019

$10.92

9

O RING (D:3.1, ID:16.8)

09280-17003

$1.70

10

PLUG (14X12)

09247-14026

$3.49

11

GASKET (13.8X18.8X4.8)

09168-14002

$2.83

12

PLUG, CLUTCH COVER KICK

11342-12C51

$12.02

13

COVER, MAGNETO

11351-42A30

$187.45

14

GASKET, MAGNETO COVER

11483-05312

$10.22

15

BOLT

01547-0630A

$2.38

16

BOLT

01547-0635A

$2.38

17

BOLT

01547-0640A

$2.38

18

BOLT

01547-0650A

$2.51

19

PLUG (12X9)

09247-12104

$2.80

20

GASKET (12.1X16.2X3.7)

09168-12002

$1.63

21

PLUG (26X9)

09259-26011

$10.26

22

O RING (D:3.1, ID:22.7)

09280-22008

$2.10

23

PIN, KNOCK

04211-09129

$1.70

24

COVER, ENGINE SPROCKET

11360-42A20

$103.77

25

BOLT

01547-0625A

$2.09

26

BOLT

01547-0635A

$2.38
