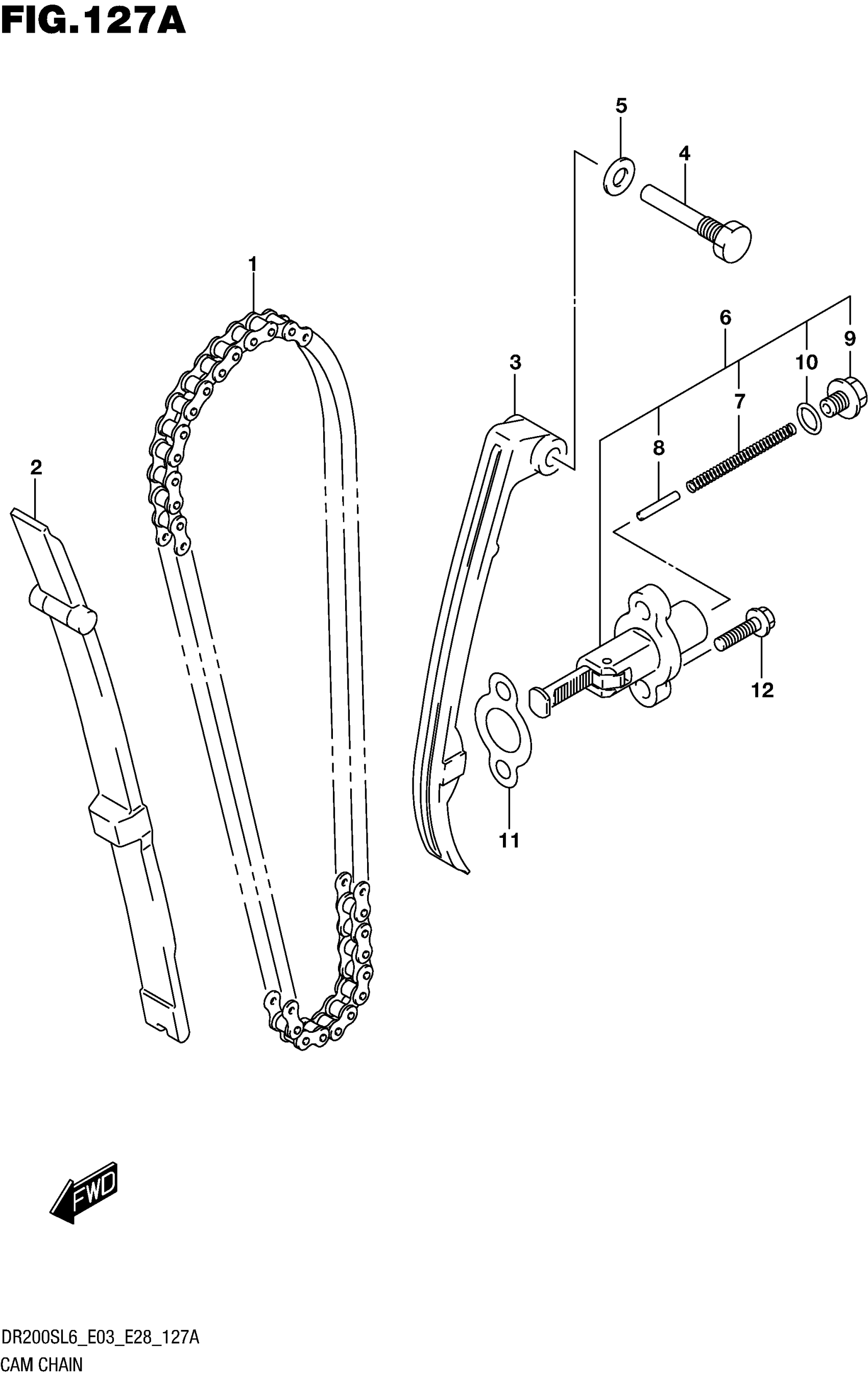

Suzuki DR200SL6 (2016) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAM SHAFT DRIVE

12760-42A00

$112.88

2

GUIDE,CAM CHAIN This part replaces 12771-18A00.

12771-18A01

$27.85

3

TENSIONER,CAM This part replaces 12811-18A01.

12811-18A02

$32.33

4

BOLT, CAM CHAIN TENSIONER

12812-32400

$4.92

5

GASKET (8.2X14X1)

09168-08016

$1.70

6

ADJUSTER ASSY, TENSIONER

12830-19B02

$94.90

7

.SPRING

12833-19B00

$3.67

8

.BAR

12835-19B00

$2.80

9

.PLUG

12834-19B00

$19.60

10

.O RING

12832-02A00

$2.80

11

.GASKET,TENSIONER ADJUSTER

12837-19B10

$2.80

12

BOLT

01547-0620A

$2.10
