2015 Suzuki DR200SL5 Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2015 Suzuki DR200SL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

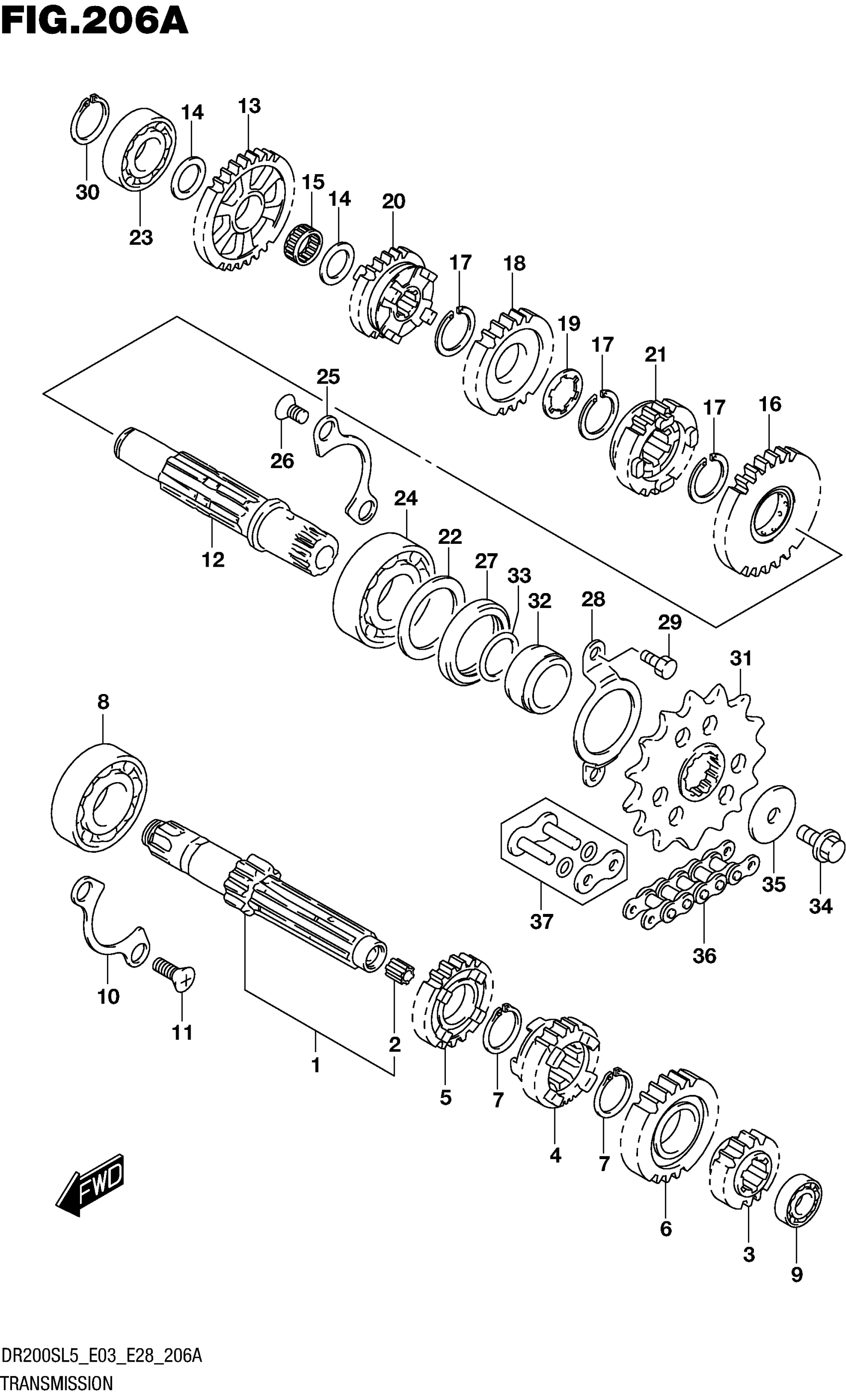

2015 Suzuki DR200SL5 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, COUNTER (NT:11)

24120-42A10

1
Out of stock

2

BUSH

24125-38201

1

$7.22

In stock

3

GEAR, 2ND DRIVE (NT:15)

24221-42A02

1
Out of stock

4

GEAR, 3RD DRIVE (NT:16)

24231-42A03

1
Out of stock

5

GEAR, 4TH DRIVE (NT:21)

24241-42A00

1
Out of stock

6

GEAR, 5TH DRIVE (NT:23)

24251-42A10

1
Out of stock

7

CIRCLIP

09380-20009

2
Out of stock

8

BEARING (20X47X14) | RH

09262-20069

1
Out of stock

9

BEARING | LH

08123-60027

1

$25.32

In stock

10

RETAINER, DRIVE SHAFT BEARING

24741-05200

1
Out of stock

11

SCREW (6X12)

09126-06011

2
Out of stock

12

SHAFT, DRIVE

24130-42A20

1
Out of stock

13

1

$130.65

In stock

14

SHIM (17X26X1)

09181-17167

2

$2.93

In stock

15

BEARING (17X21X9.8)

09263-17004

1
Out of stock

16

1

$108.60

In stock

17

CIRCLIP

09380-22006

3

$3.00

In stock

18

GEAR, 3RD DRIVEN (NT:23)

24331-42A02

1
Out of stock

19

LOCK WASHER

09167-22011

1

$4.12

In stock

20

GEAR, 4TH DRIVEN (NT:23)

24341-42A02

1
Out of stock

21

GEAR, 5TH DRIVEN (NT:21)

24351-42A02

1
Out of stock

22

WASHER, OIL SEALING

24359-42A00

1
Out of stock

23

1

$46.75

In stock

24

1

$27.83

In stock

25

RETAINER, DRIVE SHAFT BEARING

24741-05200

1
Out of stock

26

SCREW (6X12)

09126-06011

2
Out of stock

27

OIL SEAL (30X40X6)

09283-30053

1
Out of stock

28

RETAINER, DRIVE SHAFT OIL SEA

24751-42A10

1
Out of stock

29

BOLT

01500-0610A

2
Out of stock

30

CIRCLIP

08331-31179

1

$2.03

In stock

31

1

$55.77

In stock

32

SPACER, ENGINE SPROCKET

27531-42A00

1
Out of stock

33

O RING (D:2.5,ID:21)

09280-21008

1
Out of stock

34

BOLT (8X12)

01550-0812A

1
Out of stock

35

WASHER

08211-08283

1
Out of stock
